0.3-1.5X1300mm Cut to Length Machine

Zhangjiagang City Saibo Science & Technology Co., Ltd.
  • Type：Rolling Machine
  • Forging Forming Method：Mold Forging
  • Power Source：Hydraulic Pressure
  • Feature：High Efficiency
  • Certification：ISO9001, CE
  • Warranty：12 Months

Base Info

  • Model NO.：0.3-1.5X1300mm
  • Customized：Customized
  • Advantage：Use Widely
  • Condition：New
  • Color：Blue and Yellow
  • Transport Package：Sea Packing
  • Specification：CE SGS
  • Trademark：SAIBO
  • Origin：China
  • HS Code：84552210
  • Production Capacity：300set,Year

Description

Specification of the material1
 Suitable MaterialColored Steel plate, Galvanized steel2
 Width of the raw material1300mm3Thickness0.3mm-1.5mm
Cut to length roll forming machine
1. Width of sheet: 300-1300mm
2. Thickness: 0.3-2.0mm
3. Speed: 5-10M/min
4. Rollers material: Adopt excellent quality Cr15forging steel and qunching all the parts.
5. Main shaft: Materialadopt excellent 45# steel
6. Main power: 3 kW
7. Hydraulic cutting power: 4 kW
8. Control systemadopt industry PLC computer, and frequency tocontrol the whole machine.
9. Electricity: 380V 50Hz
10. Precision: 3m+-1mm
11. The minimum cutting length is 100mm,
12. The maxim cutting length is 999.99m
13. Dimension: 2m(L)x1.7(W)mx1.5m (H)

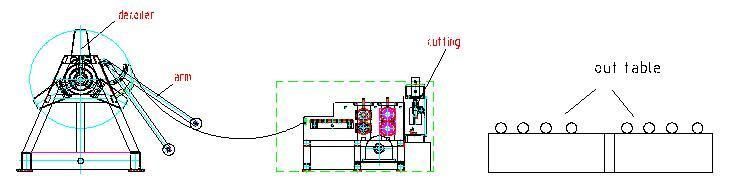

The Chart of Process Flow
0.3-1.5X1300mm Cut to Length Machine
