• Model NO.：JIAKE DNW
• Material：Low-Carbon Steel Wire (Black Wire) and Galvanized
• MOQ：1 Set
• Guarantee Time：1 Year
• Machine Life：More Than 10 Years
• Overseas Service：Available
• Transport Package：Plastic Films
• Trademark：JIAKE
• Origin：China
• Production Capacity：30 Units,Month

Basic Info.

Model NO. JIAKE DNW Material Low-Carbon Steel Wire (Black Wire) and Galvanized MOQ 1 Set Guarantee Time 1 Year Machine Life More Than 10 Years Overseas Service Available Transport Package Plastic Films Trademark JIAKE Origin China Production Capacity 30 Units/Month

Product Description

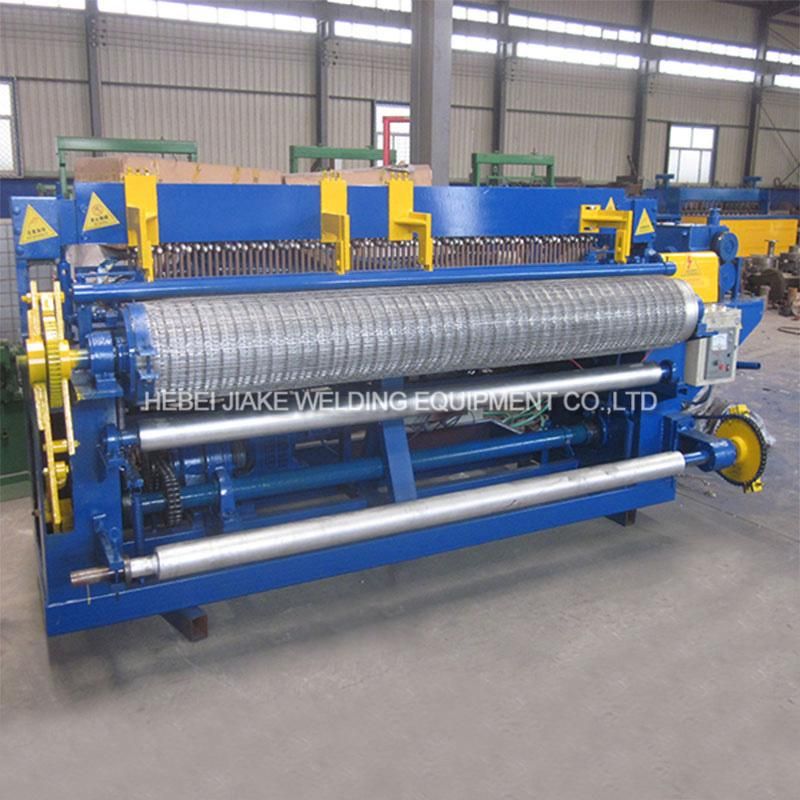

                                                      Auto Electric Welded Wire Mesh Machine




Description:

1. Both longitude wire and cross wire are fed from wire coils automatically.
2. The raw material is suitable for low-carbon steel wire (black wire) and galvanized wire.
3. The middle cutter and sider cutters can be adjusted randomly to make two mesh rolls at same time.
4. The welding transformers have 8 degrees and can be adjusted for different wire diameters.
5. The welding time and welding current can be adjusted on the control panel to adjust the welding degree.
6. The mesh roll length can be set by counter switch on the control panel.
7. It has advantages such as reasonable design, low noise, stable working, easier operation and electromagnetism speed adjustment.

Advantage
1 easy operated
2 high production
3 advanced technology electronics.
4.Separate control technology, make welding transformers working separately to reduce needed capacity.
5.Different position of button and control box with inverter (Taiwan Delta), not easily broken like before, easier to operate.
6.Sealed welding transformers, it has 8 degrees, can be adjusted for different wire diameters.
7.Square steel bottom instead of angle iron bottom. 1.5mm steel plate instead of 0.2-0.3mm steel plate, more stable.


Technical Parameter

Type	DP-DNW-1	DP-DNW-2	DP-DNW-3
Wire diameter	0.4-0.65mm	0.65-1.8mm/0.8-2mm/0.65-2mm	1.0-2.2mm/1.2-2.5mm
Aperture/pitch	1/4", 1/2"  6.25, 12.5mm	1/2", 1", 2", 3", 4"  12.5, 25, 50mm	1", 2", 3", 4"  25, 50, 75, 100mm
Mesh width	Max.1m, 1.2m	Max.1.2m,1.5m, 2m	Max.1.2m, 1.5m, 2m, 2.5m
Motor	2.2kw	2.2kw; 4kw	4kw; 5.5kw, 7.5kw
Welding speed	Max.75 rows/min	Max.120-180 rows/min	Max.80-120 rows/min
Transformer	50kva*3	60kva*4;60kva*5, 60kva*7	70kva/80kva*5/6/7/8
Weight	1.5T	2T, 2.5T	2T, 2.5T, 3T, 3.5T

Auxiliary Equipment




Application

This machine makes mesh used to make construction mesh, wall mesh, animal cage, mining etc.

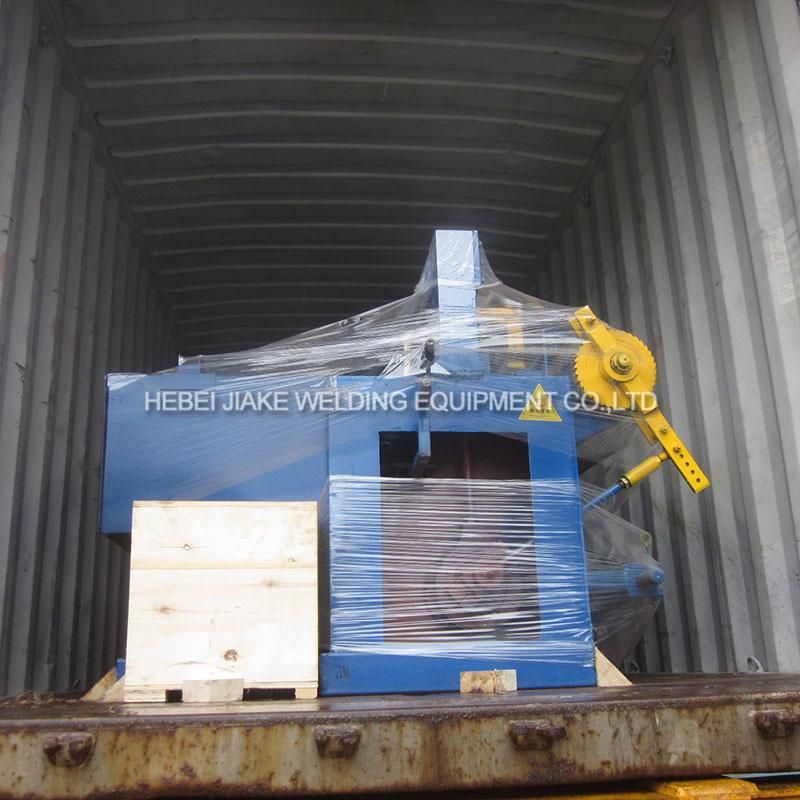

Load
