Metallic Processing Machinery

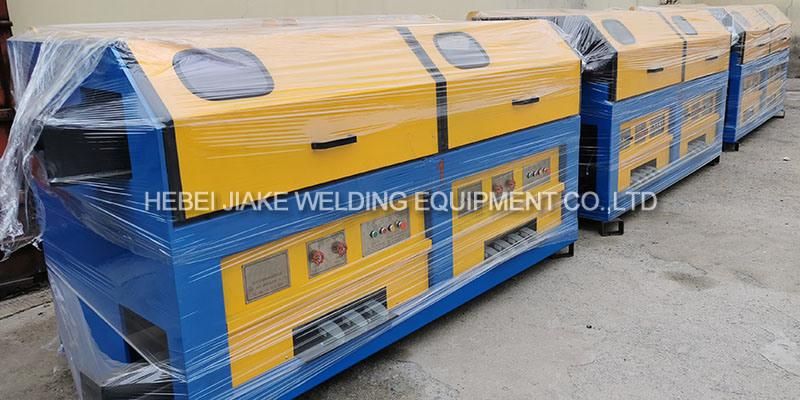

China Factory Price High Speed Straight Line Wire Drawing Machine for Gi Wire

Hebei Jiake Welding Equipment Co., Ltd.
  • After-sales Service:Online
  • Warranty:1year
  • Inlet Diameter:Max. 8mm
  • Outlet Diameter:Min. 0.7mm
  • Motor Capacity:22kw
  • Output:38t,Day

Base Info

  • Model NO.:JK-LZ-560
  • Unit Weight:1500kg
  • Overall Size:2400*1100*1100mm
  • Transport Package:Plastic Film,Wooden Box
  • Specification:CE,ISO9001
  • Trademark:JIAKE
  • Origin:Hebei, China
  • HS Code:8463300000
  • Production Capacity:50 Sets,Month

Description

INOVANCE Inverter adjusting speed, saving 30% electricity.Number of drawing pots1-10pcs1-8pcs1pcsInlet wire diameterMax. 8mmMax. 6.5mmMax.2mmOutlet wire diameterMin. 1.6mmMin. 2mmmin. 0.8mmProduction capacityMax. 90mm/minMax. 414m/minMax. 280m/minMotor capacity22kw18.5kw22kwOutput31T/day10T/day38T/dayOne drawing pot weight1800kg1500kg1800kgOne drawing pot size1.2*1.5*1.3m1*1*2.1m2.4*1.1*1.1m
3. The Feature of the Wire Drawing Machine
1. INOVANCE Inverter adjustable motor and gearbox for adjusting speed, saving 30% electricity;
2. Block body is made of thickness high tensile strength steel plate and square tube, shock-resistance.
3. Drawing path is painted with the surface of Tungsten carbide, long lifetime.
4. Water cooling system to decrease the working temperature, working smooth, service life extended.
5. Safety operation with Centralized control panel.
6. The main motor is copper leads inside and the motor is at least 18.5KW for enough power supply.
7. Hardened reducer, little noise, fast speed.
8. Safety operation with steel covers and doors and obvious signs above the drawing blocks.

China Factory Price High Speed Straight Line Wire Drawing Machine for Gi WireContact us. Get More Information about Wire Drawing Machine

4. Function of Wire Drawing Machine
There are many suitable drawing materials for straight wire drawing machine, including welding rod; welding wire (gas shielded wire, submerged arc wire, flux-cored wire, etc.); steel wire (high, medium, and low carbon steel wire, stainless steel wire, tire steel wire, hose steel wire, spring steel wire, steel cord, etc.); electric wire (aluminum clad steel wire, copper wire, aluminum wire, etc.); alloy wire, etc.
China Factory Price High Speed Straight Line Wire Drawing Machine for Gi Wire
5. Technical Service
We provide professional technical support, including technical consultation, machine design, plant layout design, and one-stop solutions.
Before-sales Service: Professional technicians solve your problems.
After-sales Service: We offer Installation video, Manual and Online service. We can send engineers to train workers in the Client's factory.
Spart part Service: Provide lifetime accessories service.


6. Our experience
China Factory Price High Speed Straight Line Wire Drawing Machine for Gi WireNOW Get a Free Quote from Heibei JIAKE Machinery.
