• Model NO.：YX170,195
• Customized：Customized
• Advantage：Easy to Maintenance
• Condition：New
• Product Name：Cold Roll Forming Machine
• Thickness：2.0mm
• Roller Material：Gcr15
• Transport Package：No Packing
• Trademark：SAIBO
• Origin：China
• HS Code：84552210
• Production Capacity：300sets,Year

NoSpecification of the material

1

Suitable MaterialPI/ Carbon steel

2

Width of the raw materialBased on the purlin sizes.3Thickness2.0mm

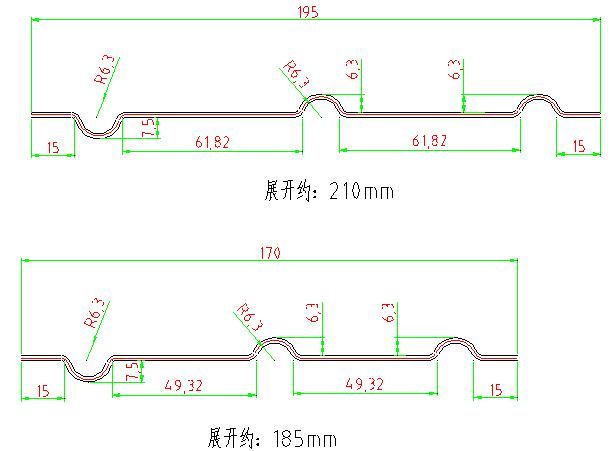

Profile drawing:


Layout of the machine

Uncoiler- feeding- roll forming-cutting-out table

Specification of Components

1Machine structureWall panel structure2Total powerMotor power-7.5kw
Hydraulic power-4kw3Roller stations10 stations4Productivity0-15m/min5Decoiler3T manual decoiler6Drive systemBy chain7Diameter of shaft76mm, 40Cr, quenching and tempering8Roller materialGcr15,HRC hardness and chrome plated surface9Post hydraulic cutting systemCr12 with heat treatment 58-60°10
 Voltage380V 50Hz 3phases (Customized)

Warranty

• Warranty: 1 year warranty from date of shipment
• Guarantee:

1: Guaranteed against malfunctions due to manufacturing defects for 1 year after date of shipment. Repairs will be made free of charge.
2: Repairs will not be performed free of change even during the guarantee period in the follow circumstances
- Damage occurs due to a natural disaster
- Malfunction occurs due to user error
- Malfunction occurs due to modifications
- Malfunction occurs due to further movement or shipment after installation
3:Air ticket, transportation cost, hotel, meals and 100$ per day shall be for purchaser's account if manufacturer's engineer has to be send to purchaser's factory to maintain the machine during the guarantee period
