• Model NO.：YX34.5-45
• Customized：Customized
• Advantage：Easy to Maintenance
• Condition：New
• Thickness：0.8-1.5mm Gi Steel
• Roller Material：Gcr15
• Main Motor Power：5.5kw
• Transport Package：No Packing
• Trademark：SAIBO
• Origin：Jiangsu, China
• HS Code：84552210
• Production Capacity：300 Sets,Year

NoSpecification of the material

1

Suitable MaterialGI up to 235Mpa

2

Width of the raw materialBased on the purlin sizes.3Thickness0.8-1.5mm

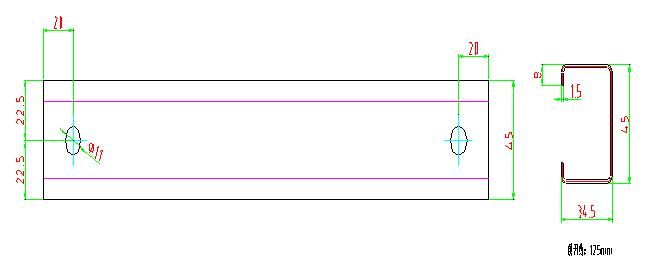

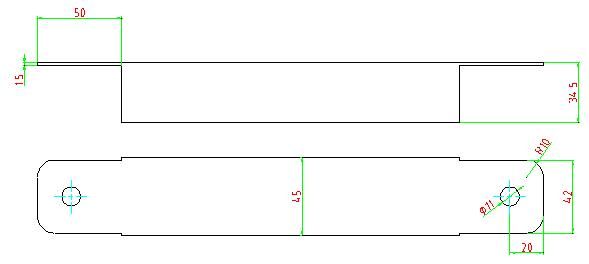

Profile drawing:

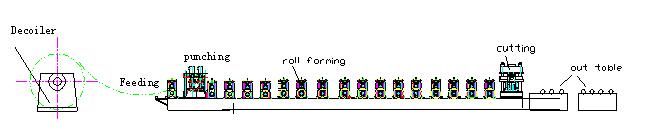

Layout of the machine

Uncoiler- feeding-punching-roll forming-cutting&punching-out table

Specification of Components

1Machine structureWire-electrode cutting structure2Total powerMotor power-5.5kw servo motor
Hydraulic power-5.5kw with cooling system3Leveling 2 upper roller, 3 down roller4Pre-punchingCr125Roller stations15 stations6Decoiler3T manual decoiler7Drive systemBy chain8Diameter of shaft56mm, 45# solid shaft9Roller materialGcr15,HRC hardness and chrome plated surface10Post hydraulic cutting systemCr12 with heat treatment 58-60° Punching 2 units
 Voltage380V 50Hz 3phases (Customized)

Warranty

• Warranty: 1 year warranty from date of shipment
• Guarantee:

1: Guaranteed against malfunctions due to manufacturing defects for 1 year after date of shipment. Repairs will be made free of charge.
2: Repairs will not be performed free of change even during the guarantee period in the follow circumstances
- Damage occurs due to a natural disaster
- Malfunction occurs due to user error
- Malfunction occurs due to modifications
- Malfunction occurs due to further movement or shipment after installation
3:Air ticket, transportation cost, hotel, meals and 100$ per day shall be for purchaser's account if manufacturer's engineer has to be send to purchaser's factory to maintain the machine during the guarantee period
