Product Description

Specifications

PIPE CUTTING MACHINE CUT OFF THE PIPES OF SUBSECTION BY CNC LENGTH-MEASURING SYSTEM WITH HIGH SPEED AUTOMATIC PIPE BEVEL CUTTING

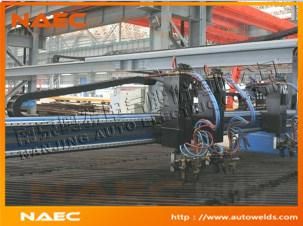

Roller-bench type CNC pipe flame/plasma bevel cutting machine
Performance features
CNC Pipe Cutting Machine, Pipe Cutting Machine, Pipe Plasma Cutting Machine, CNC Pipe Bevel Cutting Machine
Roller-bench type CNC pipe flame/plasma bevel cutting machine is generally multiple-axis consistent with a simplified version of CNC Pipe Cutting Machine, has custom-made special for pipe fabrication factory to make pipe bevel cutting very fast. Needed to cut the pipes when the pipes transport into the roller conveyor bench, adopt roller-bench driven the pipe rotation, cutting head along the guide rail for cut off the pipes of subsection by CNC length-measuring control system.
 High efficient automatic pipe bevel cutting with automatic self-measuring function
 To the large diameter of pipes and wall thickness not too heavy of carbon steel, stainless steel, alloy steel, cryogenic steel pipe etc by plasma cutting, also for the heavy wall thickness of carbon steel by flame cutting, use this machine, with its support of a plasma cutting torch, or one flame cutting torches, complete to pipe cutting materials and one bevel machining simultaneously.
On-line Performance: good (designed as per the on line equipment of the production line)
Beveling Speed: ≤2Min /pipe bevel (DN200 SCH40)
Bevel cutting: cutting off & with one bevel of the pipe at simultaneously.
Bevel quality: good

Technical parameters
Pipe diameter applicable: DN100-600(φ114~610 mm); DN150~800(φ159~813 mm) DN150~1200 (φ159~1219 mm)
Applicable wall thickness: ≤15mm (plasma cutting) ; ≤60mm (flame cutting)
Materials applicable: carbon steel, alloy steel, stainless steel and cryogenic steel
Cutting length: 6350MM
Bevel Shape: V type
Cutting direction: lengthwise

Roller bench:
Structure: three line roller with fixed distance
Roller bench Length:7000MM
Driving System: servo motor + precision reducer
Rev: 0~2.5M/Min (VF stepless speed adjustment)
Roller bench Material: 45#,Surface bluing treatment
Rotation Accuracy:<2.0MM

Trolley System:
Trolley stroke: 6350MM (moving lengthwise)
Cutting torch travel: 700MM (up/down); 300MM (left/right)
Cutting with: Plasma cutting(can be equip for flame cutting)
Cutting Torch Angle:±45°(adjustable)
Cutting Torch Quantity: one piece of plasma cutting torch
Angle error: <2°
Length fixing accuracy:<2.0MM
Control System: SH~2000H CNC Cutting System
Length-measuring system: CNC length measuring which is included in the control system.
Conveying system: built in a conveying system equipped with a lifter; one set of conveying system can be provided additionally for bevel cutting machine if necessary and conveying can be implemented Automatically.
Plasma Cutting power source: Hypertherm or Thermadyne from USA (or as per customers' demands)
