• Model NO.：COLO-500STAR
• Specification：manul hopper type
• Trademark：Colo
• Origin：China
• Production Capacity：5000pieces,Month

Basic Info.

Model NO. COLO-500STAR Specification manul hopper type Trademark Colo Origin China Production Capacity 5000pieces/Month

Product Description

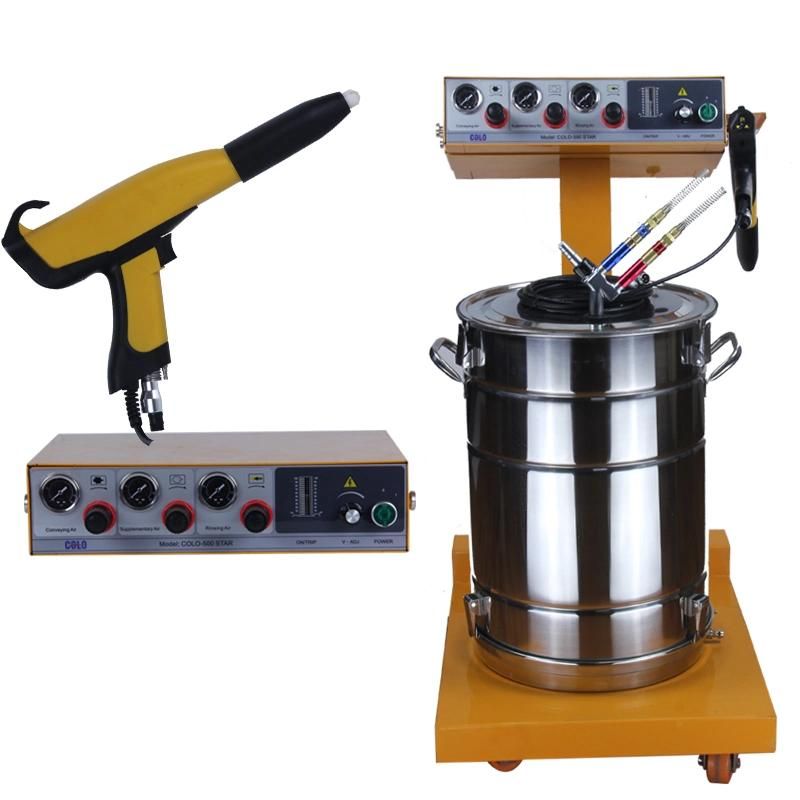

Electrostatic Powder  Spray Machine (Equipo para Pintura en Polvo)

COLO-500 Star is the most of the classic model of the COLO. Excellent for any shape part coating,high coating efficiency.

Technical Data
Power
range                                       220V
Frequency                                     50/60HZ
Temperature range in use                      -10 ºC+50 ºC
Powder Gun
Gun weight:    .........                    500G
Rated output voltage ...…                      24VDC
Input voltage     ......…                       - 200kv
Maximum output current  ...…                   180Ua(max)
Maximum output voltage......                   0-100KV (  adjustable)
Maximum powder injection :...…                    600g/min
Polarity .........                                negative (-)
Pneumatic technical spec
Maximum input-air pressure ........                 8kg/cm
Optimum input-air pressure.....                        6kg/cm
Minimum input-air pressure   ...                      4kg/cm
Maximum water vapor content or compressed air …..      1.4g/N m3
Maximum oil vapor content of compressed air   .....     0.1ppm
Maximum cimpressed-air consumption...…            13.2 m3/h



All spare parts for gun or control unit are available.

Configutation
1.Control unit
2.Manual powder gun
3.Trolley
4.Powder fluidizing Hopper
5.Necessary spare parts(injector,powder house,filter unit etc)

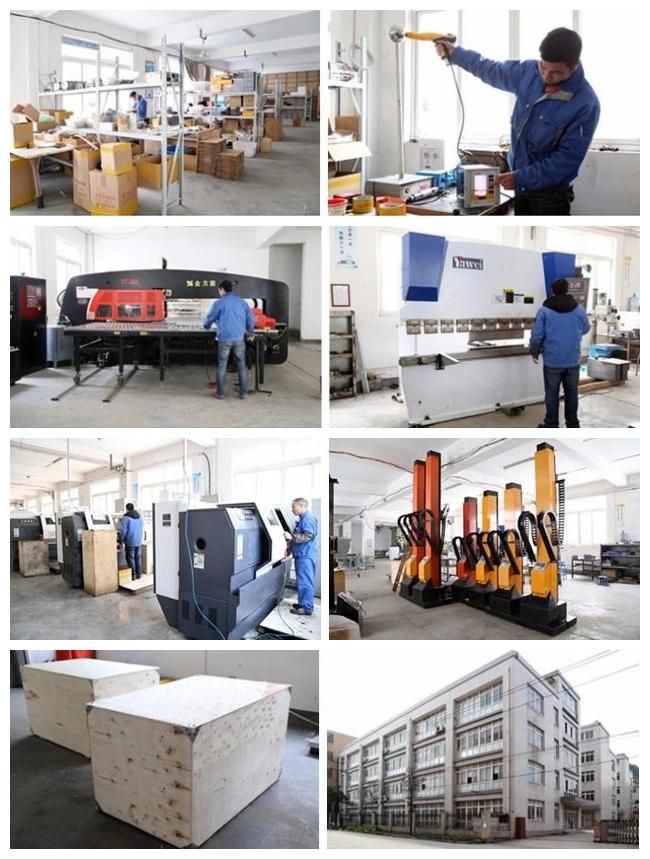

Factory Corner

We sincere welcome you to visit our factory,and also wish to establish a long-term business relations with you!
