• Model NO.：500star
• Quality：100% Promise
• Transport Package：Carton
• Specification：manul hopper type
• Trademark：Colo
• Origin：China
• Production Capacity：1000pieces,Month

Basic Info.

Model NO. 500star Quality 100% Promise Transport Package Carton Specification manul hopper type Trademark Colo Origin China Production Capacity 1000pieces/Month

Product Description

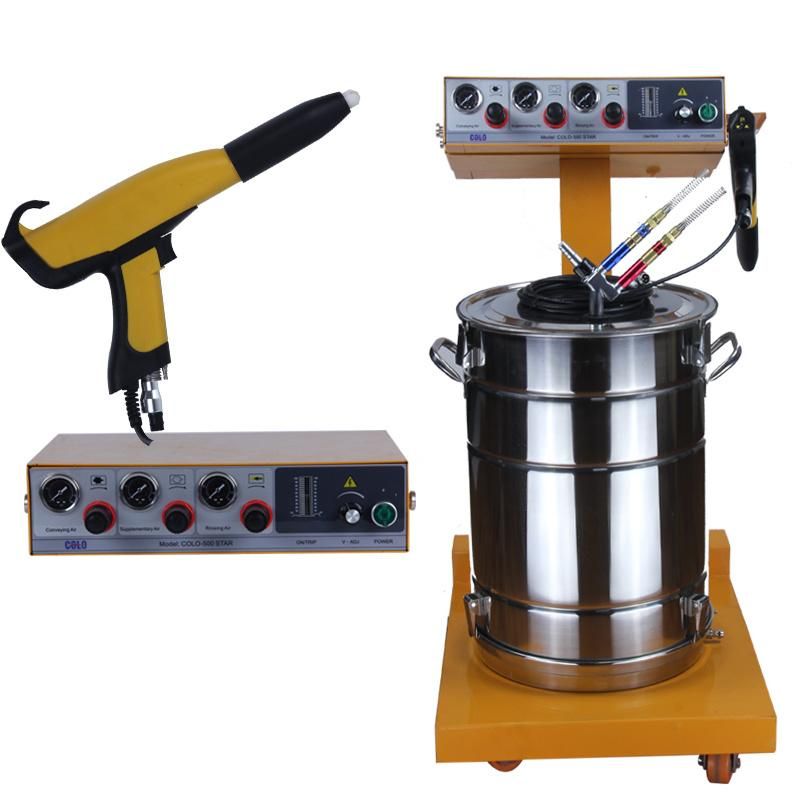

Powder Coating Gun Unit with Manual Spray Gun in High Quality
It is 100% interchngeable with Origina PGC1 machine,import machine parts in the control unit,high coating efficiency ,beautiful coating results,durable with long life time,machien enjoy 1 year warranty,all replacements availe afer sales.


Electrical data
Mains input voltage: 240V/110V
Operating frequency: 50Hz /60Hz
Powder: 50W
Output voltage (to the gun): 0-100KV ( adjustable)
Maximum output current (to the gun): 180UA(max)
Protection type: IP54
Approvals: CE Certification

Pneumatical data
Input pressure: Min. 6 bar(87PSI)/max. 10 bar(145PSI)
Recommended input pressure: 7 bar(101.5PSI)
Max. Water vapor content of the compressed
Air 1.3 G/M³
Max .Oil vapor content of the compresed air 0.1mg/M³

Configuration:
Powder gun *1 + powder pump*1 + powder container*1 +trolley*1 + oil-water separator*1 + air pressure regulator*1
etc

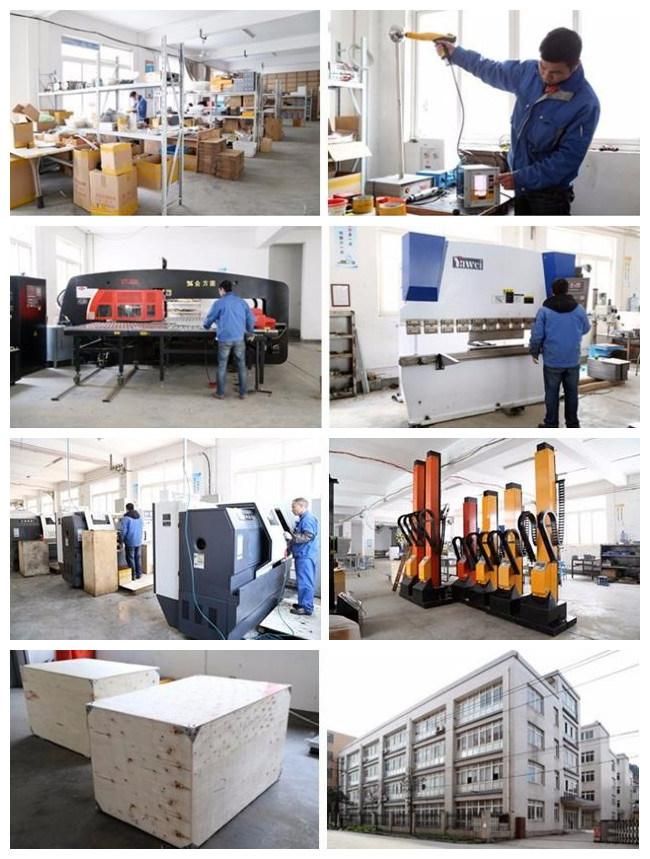

Factory Corner

We sincere welcome you to visit our factory,and also wish to establish a long-term business relations with you!
