Aluminum Tile Roll Forming Machine

Zhangjiagang City Saibo Science & Technology Co., Ltd.
  • Type：Rolling Machine
  • Forging Forming Method：Mold Forging
  • Power Source：Hydraulic Pressure
  • Feature：High Efficiency
  • Certification：ISO9001, CE
  • Warranty：12 Months

Base Info

  • Model NO.：YX25-161-805
  • Customized：Customized
  • Advantage：Use Widely
  • Condition：New
  • Color：Blue and Yellow
  • Machine Name：Aluminum Tile Roll Forming Machine
  • Coil Width：1000mm
  • Thickness：0.4-0.6mm
  • Drive System：by Chain
  • Transport Package：No Packing
  • Specification：CE, SGS
  • Trademark：SAIBO
  • Origin：Suzhou, China
  • HS Code：84552210
  • Production Capacity：300sets,Year

Description

Specification of the material1
 Suitable MaterialColored Steel plate, Galvanized steel2
 Width of the raw material1000mm3Thickness0.4mm-0.6mm
2. Machine Detailed Parameters:
1Machine structureWall board structure
2Total powerMotor power-5.5kw
Hydraulic power-5.5kw
3Roller stationsAbout 14 stations
4Productivity2-4m/min
5Drive systemBy chain
6Diameter of shaft¢70mm solid shaft
7
 		Voltage380V 50Hz 3phases (Customized)
8
 		Container need40GP container

3. The Chart of Process Flow
Aluminum Tile Roll Forming Machine

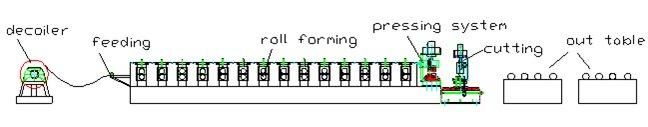

Manual Un-coiler-Roll Forming-Pressing-Cutting-out table

4. Specification of Components
No Technical Specification & Remark
1Manual Un-coiler

  1. Width of feeding: 1250mm
  2. Capability: 5 Ton
  3. Inter diameter: 500-590mm
  4. Maximal out diameter: 1500mm
  5. Mode of expand &fight: inner expand &fight by manual
  6. Way of feeding: manual
  7. Color: blue
  8. Quantity: 1
2Main Roll Forming Machine

  1. Roller material:ASTM1045 chrome plated surface with chrome, CNC
  2. Shaft diameter: ¢70mm material: SAE1045 with quenching and tempering
3Machine structure:

  1. Main frame by 350H beam welding
  2. Machine structure: wall board panel
4Pressing system:


  1. Pressing after forming: Press the sheet after roll forming to required length
  2. Hydraulic drive uses the same hydraulic unit with cutting
  3. Material of mold:Cr12, 58-62 HRC hardness
  4. Pressing by hydraulic, 5.5KW
  5. Working pressure: 12Mpa adjustable
  6. Length measuring: Automatic encoder length measuring
  7. Tolerance of length: +/- 1.5mm for each piece end product
5Hydraulic cutting system


  1. Cutting after forming: Cut the sheet after roll forming to required length
  2. Hydraulic drive uses the same hydraulic unit with pressing system
  3. Material of blade:Cr12, 58-62 HRC hardness
  4. Cutting power by hydraulic, 5.5KW
  5. Working pressure: 12Mpa adjustable
  6. Length measuring: Automatic encoder length measuring
  7. Tolerance of length: +/- 1.5mm for each piece end product
6Hydraulic System



  1. Hydraulic power: 5.5kw
  2. Working pressure: 12Mpa adjustable
  1. Solenoid valve: 1 group
  2. Hydraulic oil: 46# hydraulic oil
  1. Quantity :1


7Computer Control Cabinet


  1. Programmable setting of profile length and quantity
  2. Operating system language: English and Chinese
  3. Voltage, Frequency, Phase: 380 V, 50 Hz, 3Phase
  4. Computer used to control length & quantity. Machine will automatically cut to length and stop when required quantity is achieved
  5. Length inaccuracy can be amended easily.
  6. Control panel: Button-type switch and touch screen
        1. Unit of length: millimeter
        2. PLC brand: Panasonic
8Out table

  1. Jointed by steel tube
  2. Size: about 2.0m long*0.8mwide*0.6-1mhigh
  3. One out table with three support roller
  4. Quantity: 2 units
9Spare Parts


  1. Bearing: 2 pieces.
  2. Limit switch: 2 pieces
  3. Relay: 2 pieces.
  4. Oil tube: 1 piece
  5. Screws and nuts: some.
  6. Chain: 1 piece
  7. Tools: spanner, hex spanner and adjustable wrench and other correlative adjust machine tools
5. Packing & Delivery
  1. Deliver time: take goods after receive deposit 80 days
  2. Packing: suitable of ocean transportation
5. Warranty
  1. Warranty: 1 year warranty from date of shipment
  2. Guarantee:
1: Guaranteed against malfunctions due to manufacturing defects for 1 year after date of shipment. Repairs will be made free of charge.
2: Repairs will not be performed free of change even during the guarantee period in the follow circumstances
-  Damage occurs due to a natural disaster
-  Malfunction occurs due to user error
-  Malfunction occurs due to modifications
-  Malfunction occurs due to further movement or shipment after installation
3:Air ticket, transportation cost, hotel, meals and 100$ per day shall be for purchaser's account if manufacturer's engineer has to be send to purchaser's factory to maintain the machine during the guarantee period.

6. Payment Term
   30% deposit by T/T in advance and 70% balance after inspection confirmation before shipment
