Down Pipe Roll Forming Machine
Zhangjiagang City Saibo Science & Technology Co., Ltd.- Type：Rolling Machine
- Forging Forming Method：Roll Forming
- Power Source：Electric
- Feature：High Efficiency
- Certification：ISO9001, CE
- Warranty：12 Months
Base Info
- Model NO.：YX80-110
- Customized：Customized
- Advantage：Use Widely
- Condition：New
- Color：Blue and Yellow
- Transport Package：No Packing
- Specification：CE SGS
- Trademark：SAIBO
- Origin：Jiangsu, China
- HS Code：84552210
- Production Capacity：300sets,Year
Description
Specification of the material1
Suitable Material Colored Steel plate 2
Width of the raw material About 370mm 3 Thickness 0.4-0.7mm
Machine Detailed Parameters:
3. The Chart of Process Flow
4. Packing & Delivery
2: Repairs will not be performed free of change even during the guarantee period in the follow circumstances
- Damage occurs due to a natural disaster
- Malfunction occurs due to user error
- Malfunction occurs due to modifications
- Malfunction occurs due to further movement or shipment after installation
3:Air ticket, transportation cost, hotel, meals and 100$ per day shall be for purchaser's account if manufacturer's engineer has to be send to purchaser's factory to maintain the machine during the guarantee period.
6. Payment Term
30% deposit by T/T in advance and 70% balance after inspection confirmation before shipment
Machine Detailed Parameters:
| 1 | Machine structure | Wall board structure |
| 2 | Total power | Motor power-4kw Hydraulic power-5.5kw |
| 3 | Roller stations | About 20 stations |
| 4 | Productivity | 0-15m/min |
| 5 | Drive system | By 1.0 inch single chain |
| 6 | Diameter of shaft | ¢65mm solid shaft |
| 7 | Voltage | 380V 50Hz 3phases (Customized) |
| 8 | Container need | 40GP container |

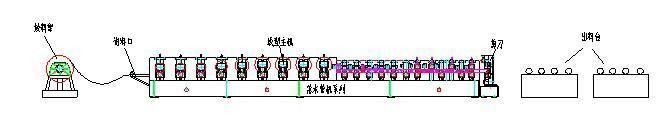

3. The Chart of Process Flow
4. Packing & Delivery
- Deliver time: take goods after receive deposit 60 days
- Packing: suitable of ocean transportation
- Warranty: 1 year warranty from date of shipment
- Guarantee:
2: Repairs will not be performed free of change even during the guarantee period in the follow circumstances
- Damage occurs due to a natural disaster
- Malfunction occurs due to user error
- Malfunction occurs due to modifications
- Malfunction occurs due to further movement or shipment after installation
3:Air ticket, transportation cost, hotel, meals and 100$ per day shall be for purchaser's account if manufacturer's engineer has to be send to purchaser's factory to maintain the machine during the guarantee period.
6. Payment Term
30% deposit by T/T in advance and 70% balance after inspection confirmation before shipment
