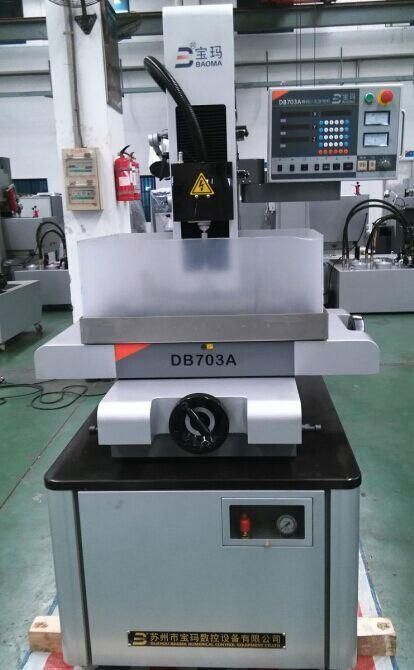

Spark Drilling Machine Bmd703-400

Suzhou Baoma Numerical Control Equipment Co., Ltd.
  • After-sales Service：Network Support or Arrange Engineers to Go Abroad
  • Specification：Plywood
  • Trademark：Baoma
  • Origin：China

Base Info

  • Model NO.：BMD703-400
  • HS Code：8456301090
  • Production Capacity：1000

Description

   spark drilling machine  SpecificationBMD703-400 Universal Parameter    Work table Size310x 486 mm

Drilling Depth

0 - 300 mm    Work Table Travel300 x 400 mmZ axis Travel300+(320) mm    Load of Table300 KgMax. Drilling Speed60 mm2/min    Electrode Diameter0.2-3.0 mmMax. Working Current30 A    Water Tank Capacity30 LMax. Power comsumption3.5 KVA    Machine Weight700 KgVoltage220-415V / 50HZ    Machine Dimensions1236 x 1025 x 1934 mmWorking SolutionWater/Saponification    Packing Dimensions1430 x 1340 x 2000 mmFunction of setting depthYes    Control TypeZNC: Z axis NC ControlZ axis Travel ControlElectric MotorSpark Drilling Machine Bmd703-400Spark Drilling Machine Bmd703-400Spark Drilling Machine Bmd703-400Spark Drilling Machine Bmd703-400Spark Drilling Machine Bmd703-400Spark Drilling Machine Bmd703-400Spark Drilling Machine Bmd703-400Spark Drilling Machine Bmd703-400Spark Drilling Machine Bmd703-400Spark Drilling Machine Bmd703-400Spark Drilling Machine Bmd703-400Spark Drilling Machine Bmd703-400
