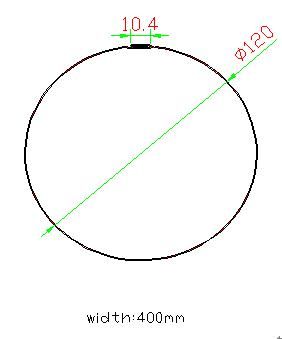

Profile drawing:

The Chart of Process Flow

Manual Uncoiler-Roll Forming-Cutting-out table

Specification of Components

Manual Uncoiler

• Capability: 3 Ton
• Mode of expand &fight: inner expand &fight by manual
• Way of feeding: manual

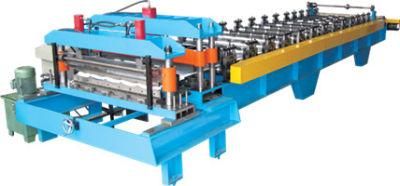

Main Roll Forming Machine

• Roller material:ASTM1045 chrome plated surface with chrome
• Shaft diameter: ¢65mm material: SAE1045 with tempering
• Main frame by 350H beam welding
• Machine structure: wall board panel

Hydraulic cutting system

• Cutting after forming: Cut the sheet after roll forming to required length
• Material of blade:Cr12, 58-62 HRC hardness
• Cutting power by hydraulic,5.5KW

Bending machine

• Max bend angle: 90°
• Function: bend and fasten at the same time
• power; 2.2kw

Warranty

• Warranty: 1 year warranty from date of shipment
• Guarantee:

1: Guaranteed against malfunctions due to manufacturing defects for 1 year after date of shipment. Repairs will be made free of charge.
2: Repairs will not be performed free of change even during the guarantee period in the follow circumstances
- Damage occurs due to a natural disaster
- Malfunction occurs due to user error
- Malfunction occurs due to modifications
- Malfunction occurs due to further movement or shipment after installation
3:Air ticket, transportation cost, hotel, meals and 100$ per day shall be for purchaser's account if manufacturer's engineer has to be send to purchaser's factory to maintain the machine during the guarantee period.
