• Model NO.：JD-PR
• Certification：ISO, CE
• Suitable Wire Diameter：1.5-8mm
• Motor：5.5kw
• Capacity：12-30PCS,Mintue
• Transport Package：Strong Standard Export Wooden Case
• Specification：230*127*192cm
• Trademark：Greatcity
• Origin：China
• HS Code：8474802000
• Production Capacity：1sets,Day
• Package size per unit product：2300.00cm * 1420.00cm * 1500.00cm
• Gross weight per unit product：800.000kg

Basic Info.

Model NO. JD-PR Certification ISO, CE Suitable Wire Diameter 1.5-8mm Motor 5.5kw Capacity 12-30PCS/Mintue Transport Package Strong Standard Export Wooden Case Specification 230*127*192cm Trademark Greatcity Origin China HS Code 8474802000 Production Capacity 1sets/Day

Packaging & Delivery

Package size per unit product 2300.00cm * 1420.00cm * 1500.00cm Gross weight per unit product 800.000kg

Product Description

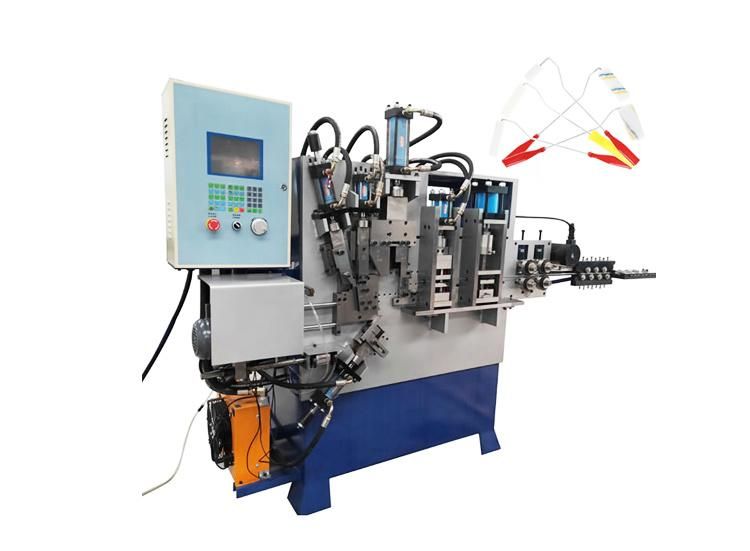

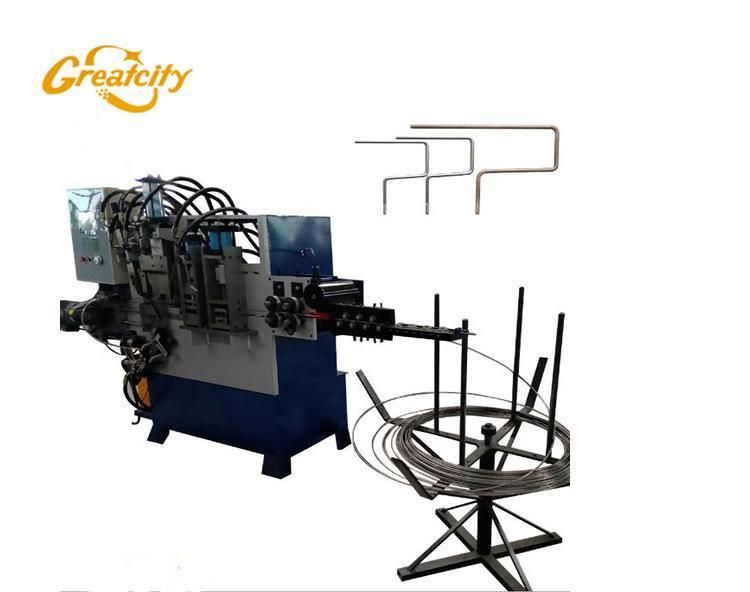

Paint brush handle making forming molding machine

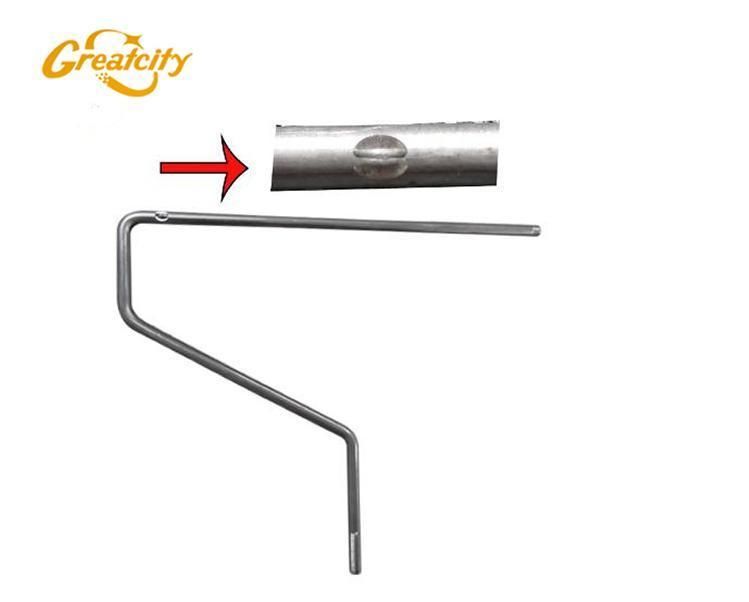

Paint Roller Handle Making Machine is to produce paint roller handle frame expertly. It can not only make lips stamping but also threading and end chamfering fully automatically. Plastic cover dressing device can be manual type or combined in line in automatic type for options and pin making machine is also available upon request. This is high efficient automatic machine which can save labor and electricity, and good output with high precision. Plalstic gripper was optional upon request.



Paint Roller Handle Making Machine advantages:

1. Fully automatic, saving in both time and labor cost
2. High precision, in ±0.1mm

3. High yield rate

Paint Roller Handle Making Machine Parameter



Model	JD-PR-8S	JD-PR-8RS	JD-PR-8MU	JD-PR-4
Function	chamfering	chamfering +threading	overdue long type	pin punching
wire size	3-8mm	3-8mm	3-8mm	1.5-4mm
Feeding length	0-500mm	0-500mm	0-900mm	0-500mm
production capacity	15pcs per minute	12pcs per minute	12pcs per minute	25-30pcs per minute
motor power	5.5kw	5.5kw	5.5kw	5.5kw
dimension	230*127*192cm	230*127*192cm	245*127*195cm	180*120*178cm
weight	1300kg	1350kg	1400kg	1100kg

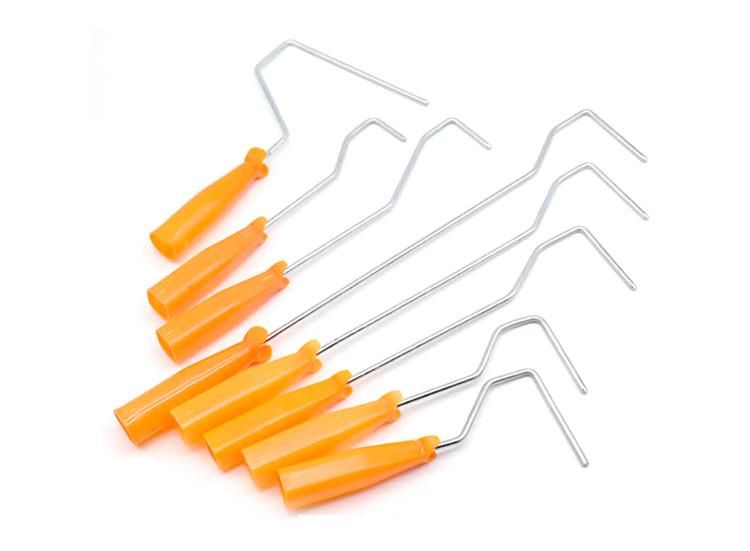

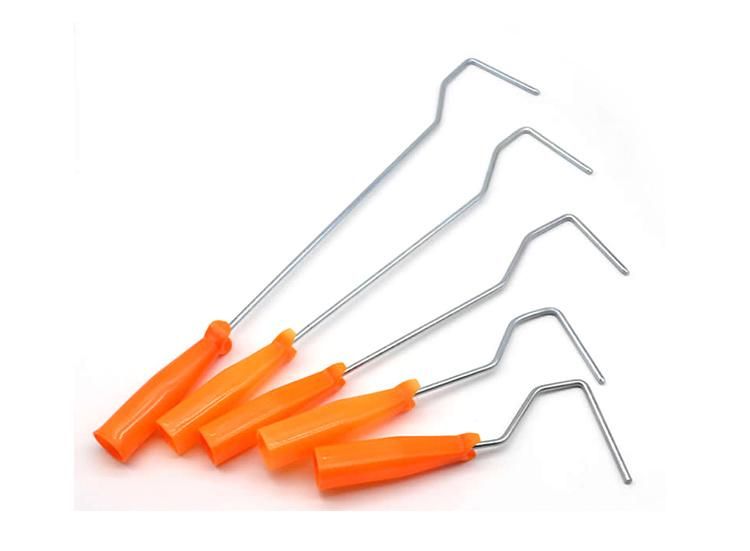

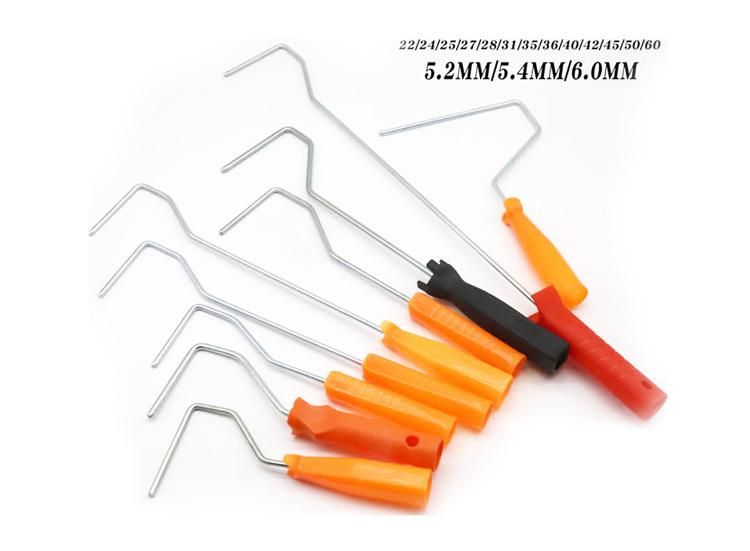

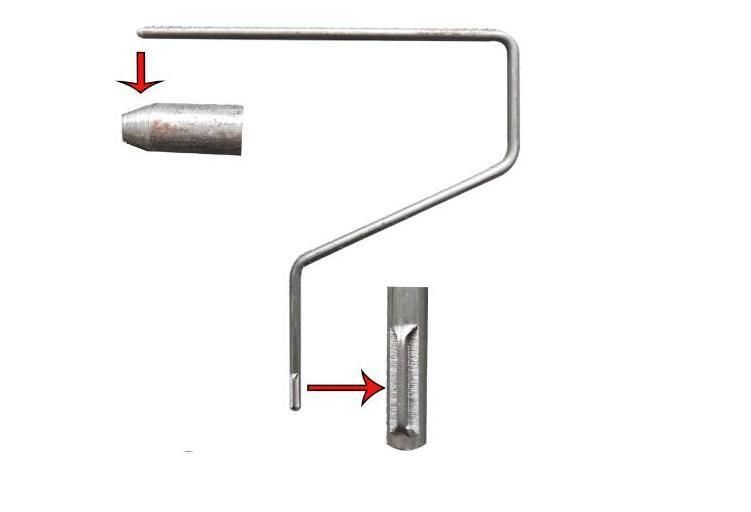

Paint Roller Handle Making Machine workpiece

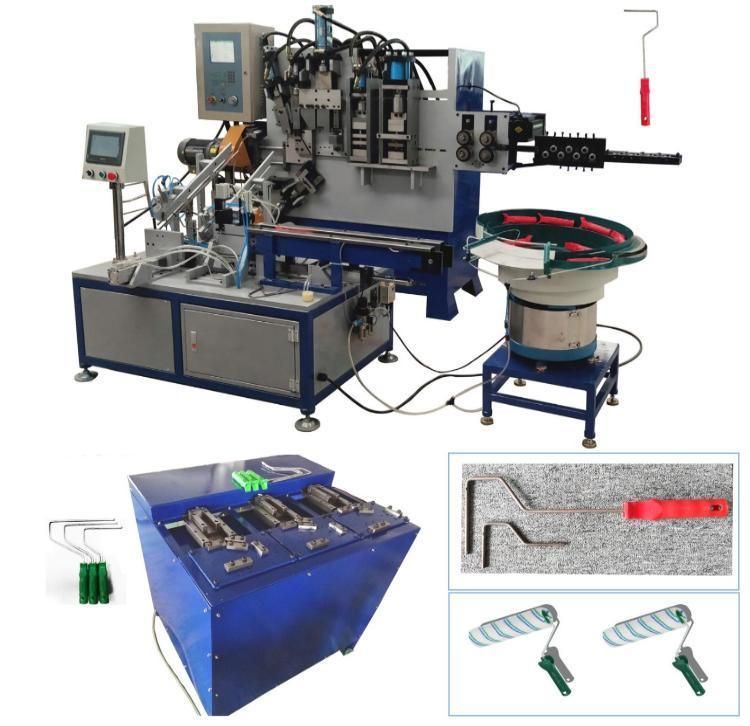

Paint roller gripper can be interested by hand or by machine automatically,the first picture is fully automatic gripper insert mahcine ,PLC controlled and 7" touch screen .the second picture is manual gripper insert machine ,which can insert 3 grippers simultaneously,but need workers to put products into the matrix.
