• Model NO.：GB-S
• HS Code：84633000
• Production Capacity：1000pieces,Years

Basic Info.

Model NO. GB-S HS Code 84633000 Production Capacity 1000pieces/Years

Product Description

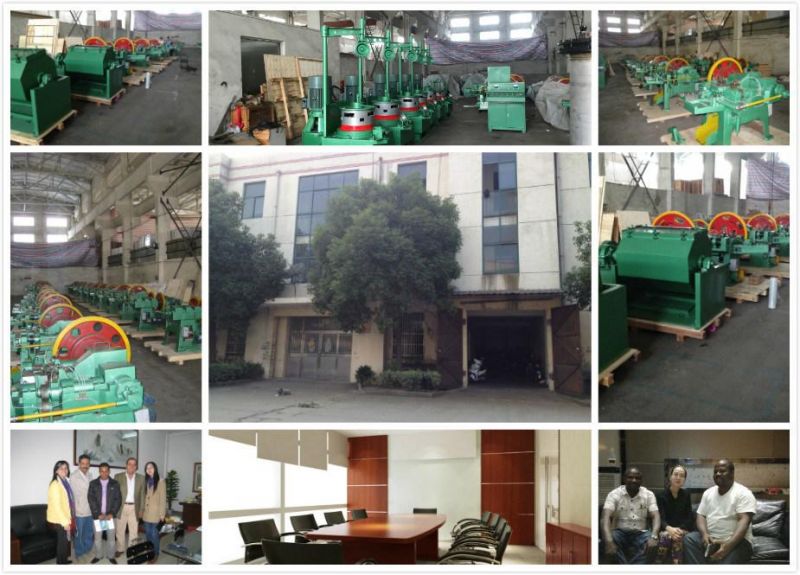

About us:


ONE-STOP WIRE&NAIL MAKING MACHINERY EXPERT(Skilled in kinds wire&nail making project)

Wuxi shenda nail machienry factory professional manufactures nail making machine, wire drawing machine and High speed nail rolling machine,High speed coil nail welding machine,the accessory equipments since 1995
Capacity 1000pcs per year, customers cover Africa ,middle East, Asia,and latin-America ariea.
Our company has CE, ISO9001 certificate and our engineer arrange for machine accommodation in customer's factory.
Advatage product:High speed rolling machine,high speed coil nail welding machine,Roofing nail making machinery;Blind rivet nail making machinery;Concrete nail making machinery;Barbed wire machine;Coil nail welding machine;High speed rolling machine

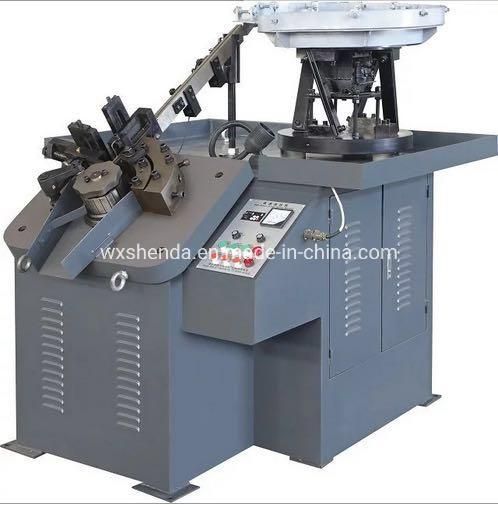

High Speed Low Noise Nail Rolling Machine/Wire Nail Making Machine/Automatic Nail Machine

Machine Specification:

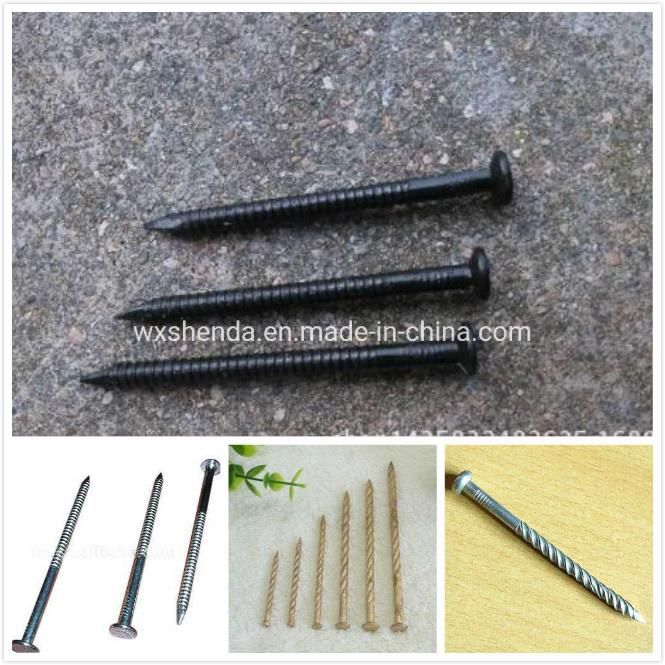

High speed thread rolling machine/Nail twisting machine is a product designed and improved by our factory by integrating the advantages of the same kind of products at home and abroad, keeping a leading position among the same kind of products at home. This machine is mainly used for processing the threaded nail, annular threaded nail and other new and special nails.

Thread rolling dia	2.0-4.1mm
Nail length	30-90mm
Production rate	500-1000 poa/min
Main motor power	3.0kw
Vibrate hopper capacity	5.0kg
Total weight	1300kg
Overall(LxWxH)	1300x1300x1500mm

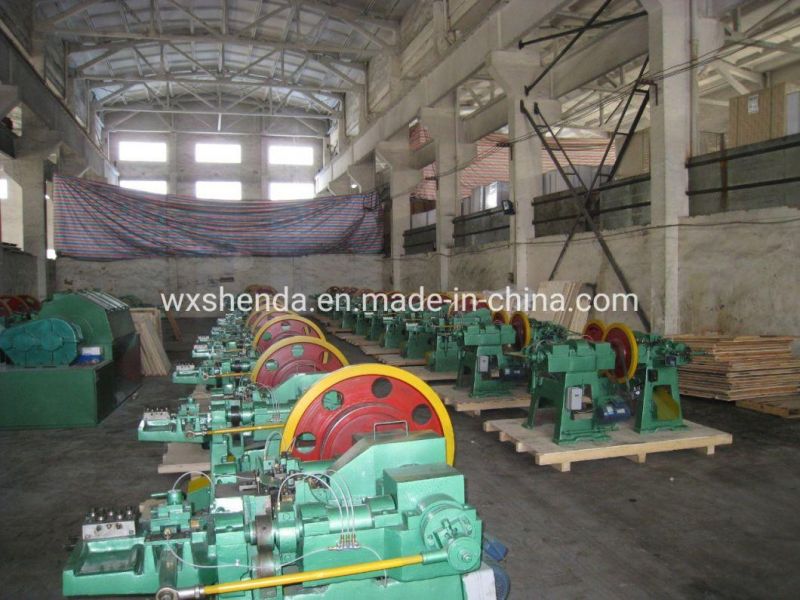

When we make the screw nail ,we need use nail making machine to make the common nail first


parameter	unit	Z94-6.5C	Z94-5.5C	Z94-4C	Z94-3C	Z94-2C	Z94-1C
Dia of nail max	mm	6.5	5.5	4.5	3.4	2.8	1.6
Dia of nail min	mm	4.5	3.7	2.8	1.8	1.2	0.9
Length of nail max	mm	200	150	100	80	50	25
Length of nail min	mm	100	80	50	30	16	9
Dsigned out put	pcs/min	160	200	260	320	350	450
Moter power	kw	11	5.5	4	3	2.2	1.5
Weight(approx)	kg	5000	2500	2000	1400	1200	560
Overall dimensions	mm	3200x2200x2200	2800x1800x1800	2200x1600x1650	2000x1400x1400	1700x1300x1400	1500x1300x1200

Nail making accessory equipment

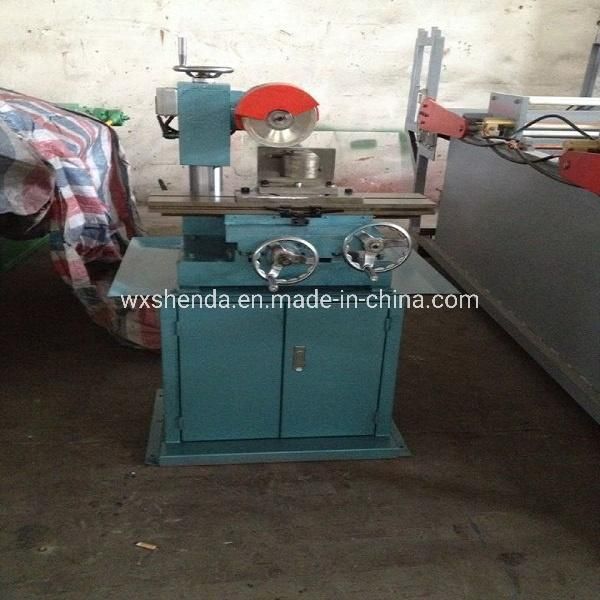

Nail cutter grinding machine


Grinding wheel diameter Max	180mm
Speed	2800r/S
Voltage	380v 50 hz  1.1kw
Machine weight	200kg
Diamension (mm_	900x900x1300

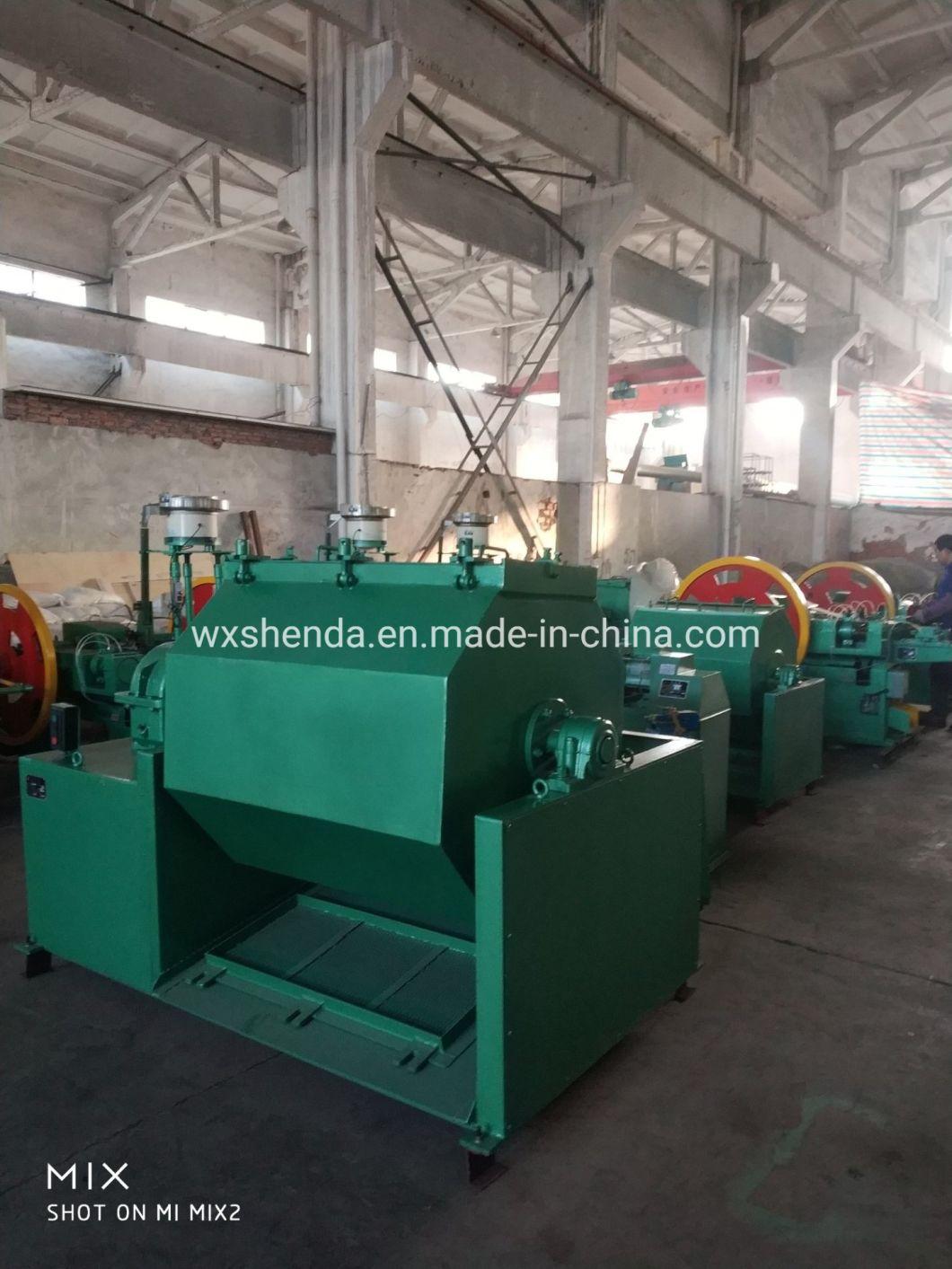

Nail polish machine

Type	SD-400	SD-600	SD-1000	SD-2000
Capacity	400kg	600kg	1000kg	2000kg
Power of motor	3kw	4kw	7.5kw	11kw
Overall size	1640x90x1000	1960*1070*1400	2000x1500x1400	2500x1500x1600

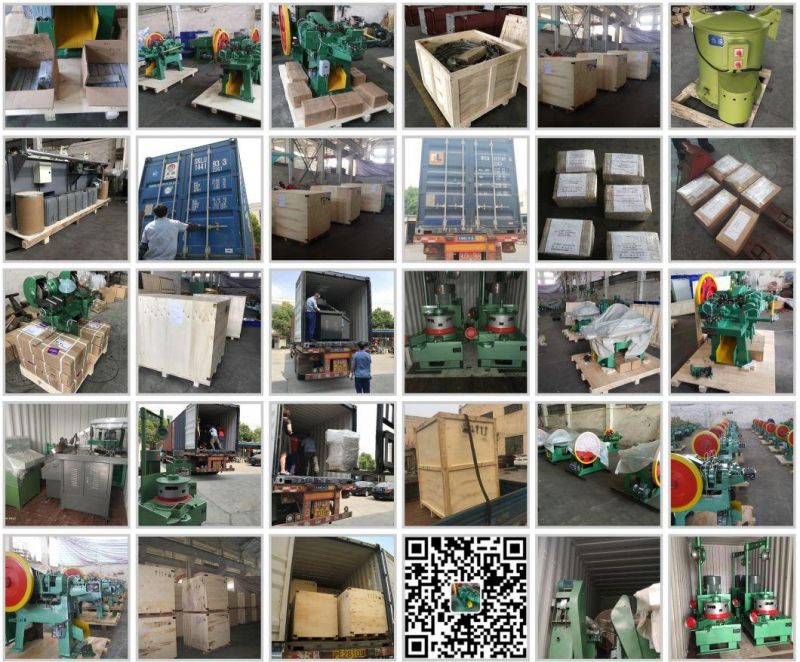

Machine packing and Delivery

Nail making machine spare parts:wooden box &carton

Nail making machine:plastic film+pallet
                                     plastic film+wooden box
