• Model NO.：LW
• Application：Metal Straightening Machinery, Metal Drawing Machinery
• Transport Package：Suitble for Shipping
• Specification：any size
• Trademark：Shenyida
• Origin：Wuxi China
• HS Code：84633000
• Production Capacity：100PCS,Month

Basic Info.

Model NO. LW Application Metal Straightening Machinery, Metal Drawing Machinery Transport Package Suitble for Shipping Specification any size Trademark Shenyida Origin Wuxi China HS Code 84633000 Production Capacity 100PCS/Month

Product Description

Custom Making All Size Wire Drawing Die Tungsten Die Diamond Die

Company information

Wuxi shenda nail machienry factory  professional manufactures nail making machine, wire drawing machine and the accessory equipments since 1995
Capacity 1000pcs per year, customers cover Africa ,middle East, Asia,and latin-America ariea.
Our company has CE, ISO9001 certificate and our engineer arrange for machine accommodation in customer's factory.
Advatage product:Roofing nail making machinery;Blind rivet nail making machinery;Concrete nail making machinery;Barbed wire machine;Coil nail welding machine;High speed rolling machine

27 years machine manufacturer experience.14 years exporting experiance with more than 200 companises customers.






Product Description

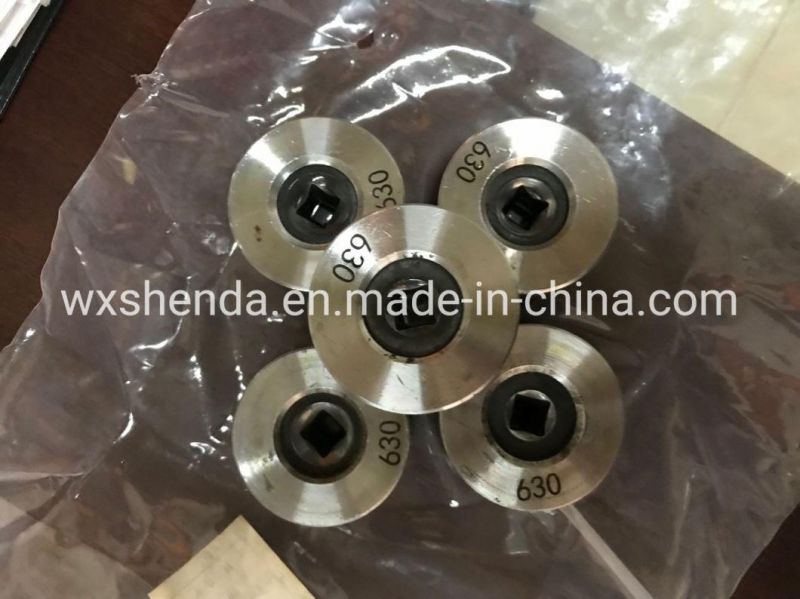

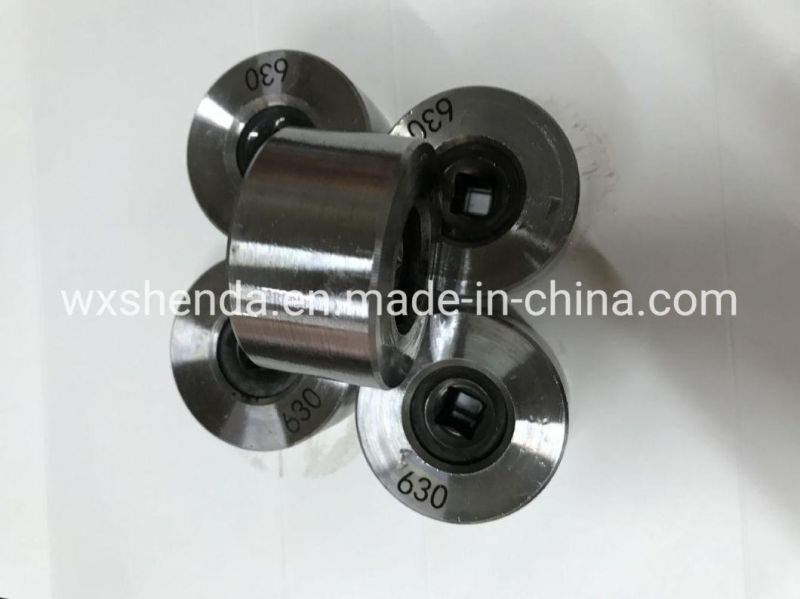

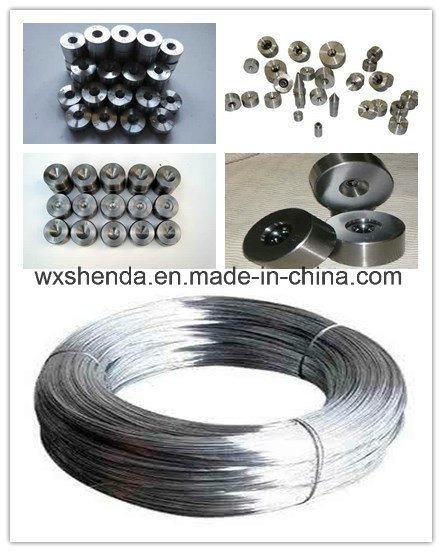

Wire drawing die
Used for drawing low, medium and high carbon steel coper, alumium and alloy. We can supply different sizes drawing die.

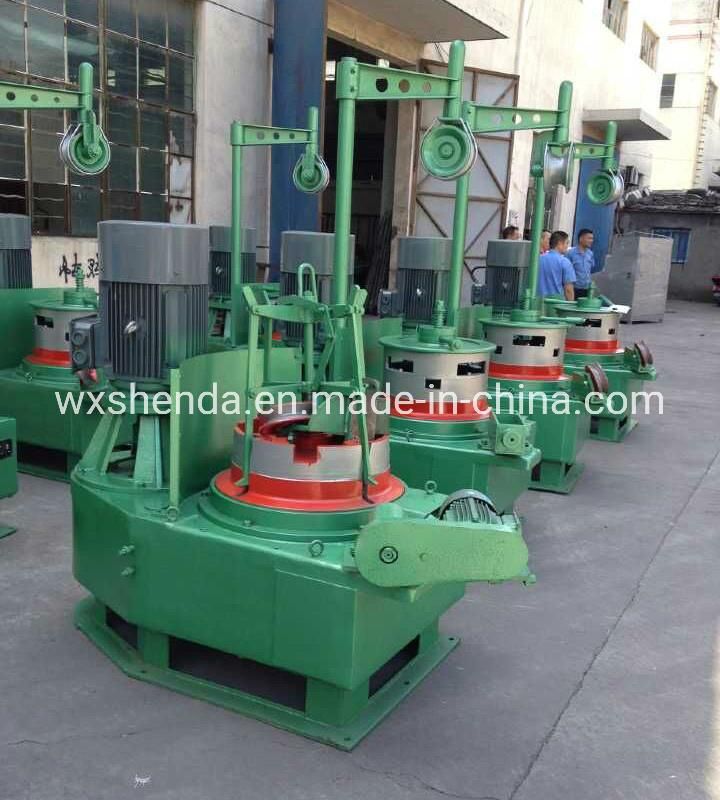

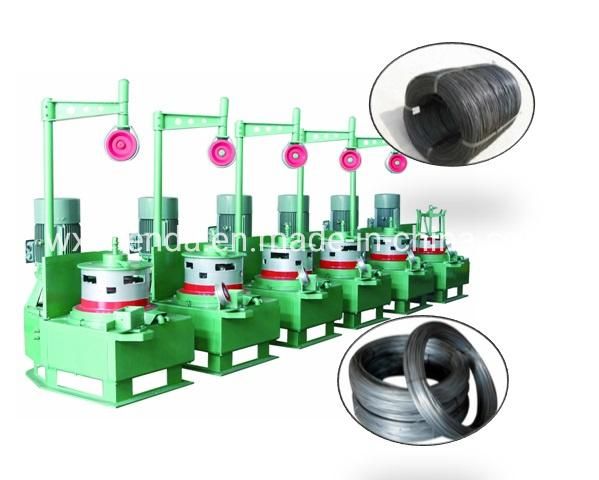

Pully type wire drawing machine

This machine consist of six of block ,and used for draw metal wires such as steel,aluminium,copper and ect.

It is mostly suitble for use in following manufacture fields as screw,nail,conducting wire for electrical use ,steel

-wire rope(steel cable)and spring to batch process the refine wires.



Model	LW-1-6/560	LW-1-7/450	LW-1-6/350	LW-1/800
Material intensity	δb≥110kg/mm2	128kg/mm2	δb≥140kg/mm2
Max diam of material	6.5mm	3.4mm	2.5mm	14mm
Min diam of material	2mm	1mm	0.75mm	6.0mm
Diam of block	1-6/560	1-7/450	1-6/350	1-800
Max average condensation	30%	20%	21%	25%
Total condensation	78-88.5%	77.90%	78%
Max.speed of block	245m/min	346.9m/min	200m/min	0.4m/min
Total power	18.5-30kw	7.5-11kw	7.5-11kw	80kw
Weight	2000kg	1500kg	1000kg	4500kg
Overal size	1700x1150x1750mm	1520x810x1700mm	1400x800x1500mm	9730*3340*2020

Company Information

Our company professional manufactures nail making machine, wire drawing machine and the accessory equipments since 1995

Capacity 1000pcs per year, customers cover Asia, middle East, Africa and latin-America ariea.

Our company has CE, ISO9001 certificate and our engineer arrange for machine accommodation in customer's factory.



FAQ

QUESTION1: Do we need wire drawing machine when nail making?

A1: The raw material with diameter 6.5mm/6.0mm/5.5mm will be drawed to smaller diameter so as to making nail in the nail making machine.



QUESTION2: How many ton does one set die make per day

A2: Usually around 50-150ton wire.



QUESTION3: How can you guarranty the machine quality?

A3: All machine with 12 month guarranty as soon as machine arrive customer. And our machine is developed products which have planty working in lots of countries.



QUESTION4: How long is the wire drawing die delivery time?

A4: Usually depend the die quantiry ,if small than 100pcs,we could finish by 3-4days
