• Model NO.：FF-3518
• Condition：New
• The Density of Rockwool：120kgs,M3
• Thick Insulation：100-150mm
• Voltage：380V,220V
• Weight：1000kg
• Substract：Stainless Steel,PVC
• Outside Size(L*W*H)：L4m*W2m*H2.5m
• Power(W)：1.5kw
• Warm-up Time：15-30mins
• Dilivery：10-15 Work Days
• Transport Package：Export Packaging
• Specification：FF-0813
• Trademark：FF
• Origin：Zhejiang Hangzhou
• HS Code：8504231300
• Production Capacity：100set,Month

Basic Info.

Model NO. FF-3518 Condition New The Density of Rockwool 120kgs/M3 Thick Insulation 100-150mm Voltage 380V/220V Weight 1000kg Substract Stainless Steel/PVC Outside Size(L*W*H) L4m*W2m*H2.5m Power(W) 1.5kw Warm-up Time 15-30mins Dilivery 10-15 Work Days Transport Package Export Packaging Specification FF-0813 Trademark FF Origin Zhejiang Hangzhou HS Code 8504231300 Production Capacity 100set/Month

Product Description

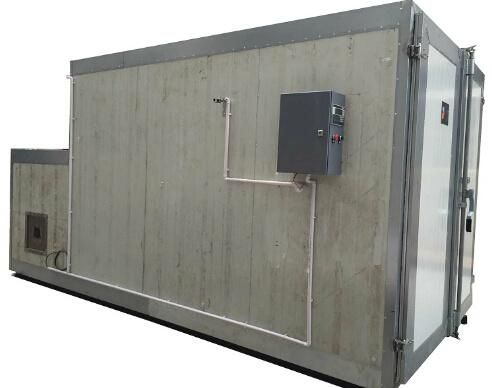

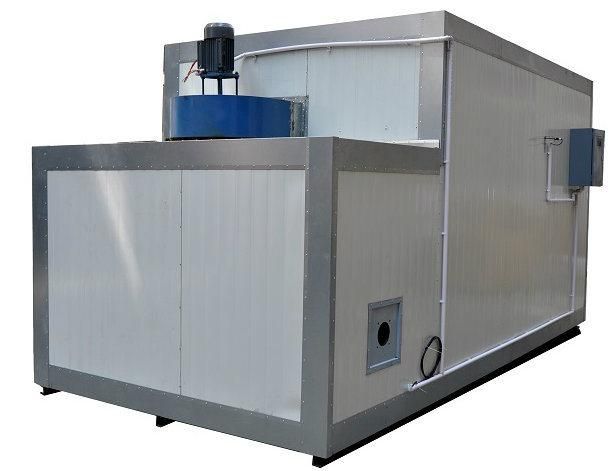

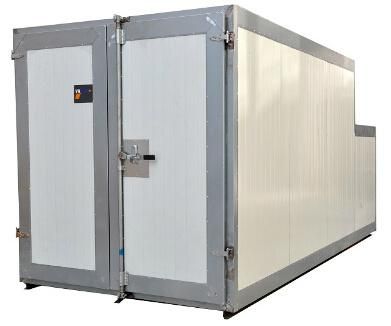

Indirect Gas Fired Powder Coating Curing Furnace

Advantages
1) Gas fired for heating source, durable and saving energy
2) External burning room to firing gas, cause less pollution on work-pieces
3) We use Itally Brand RIELLO burner for high heating efficiency



Technical Data

Inner Size	L3500mm*W1800mm*H2200mm
Outter Size:	L4500mm*W2200mm*H2500mm
Inner Material:	t=1.0mm galvanized plate
Outter material:	t=0.5mm galvanized plate
Insulation Board:	Rock Wool Board thickness=120mm
Power supply:	Electric
Voltage:	380V
Frequency:	50Hz
Door type:	double
Warm-up time:	15 min. (180-220° C)
Homogeneity:	< ± 3°C if 185°C
Temperature stability:	< ± 1°C
Temperature max.	250° C
Transport:	Top
Warranty:	12 Months

The size and design of these furnaces can be customized according to the demands of each client.
Each furnace provides uniform distribution of warm air along the unit, resulting in a high quality finish and optimum curing cycle.






 Oven bodyinside of insulation board be made of galvanized sheet.Interlayer be padded of rock wool board with good insulating effect, thickness=100mm.outside of insulation board be made of galvanized sheet.Heating SystemHeating Changer: be made of stainless steel 3mmBurner; Italy RIELLO brand.Circulation Fan Motor Electrical Control UnitPLC Temprature range:180 -250'CHeating Time: 15-20min

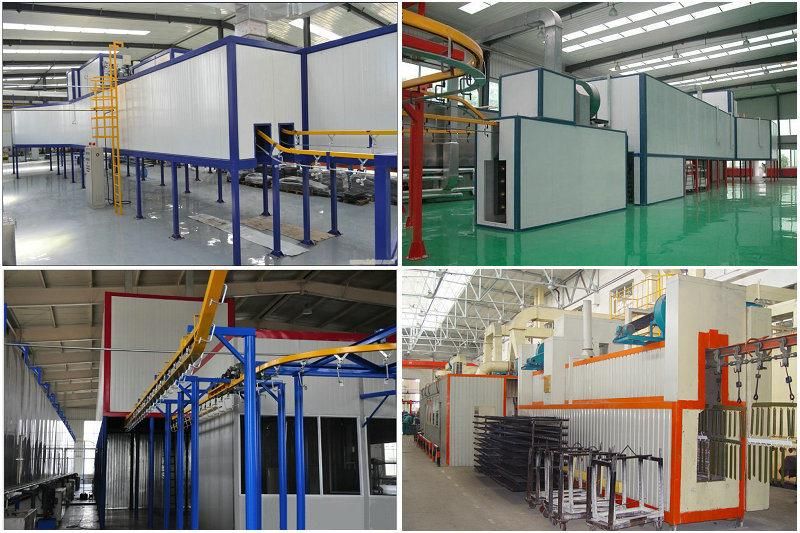

Our curing tunnal at the automatic powder coating line:
