• Model NO.：COLO-0813
• Condition：New
• Name：Natural Gas Horno De Curado
• Model No.：Colo-0813
• Voltage：380V 3 Phrase
• Frequence：50Hz-60Hz
• Product：Horno De Curado Natural Gas
• Dimension(L*W*H)：800 Width X 1000 Height X 3000 Depth
• Application：Powder Coating
• Warm-up Time：15-30mins
• Delivery：10-15 Work Days
• Transport Package：Export Packaging
• Specification：COLO-0813
• Trademark：COLO
• Origin：China
• HS Code：8504231300
• Production Capacity：20sets,Month

Basic Info.

Model NO. COLO-0813 Condition New Name Natural Gas Horno De Curado Model No. Colo-0813 Voltage 380V 3 Phrase Frequence 50Hz-60Hz Product Horno De Curado Natural Gas Dimension(L*W*H) 800 Width X 1000 Height X 3000 Depth Application Powder Coating Warm-up Time 15-30mins Delivery 10-15 Work Days Transport Package Export Packaging Specification COLO-0813 Trademark COLO Origin China HS Code 8504231300 Production Capacity 20sets/Month

Product Description

Gas Powder Coating Oven / Powder Curing Oven / Horno De Curado

Model: COLO-0813
Heating Source: by gas/diesel/LPG
Working size: width800 xdepth 3000x height 1500mm
Features: indirect heating like gas/diesel/LPG oven, will use longer than electrical powder coating oven, and also saving energy.

Structure: oven chamber, buring room, fan motor, trolley, electrical control system, etc

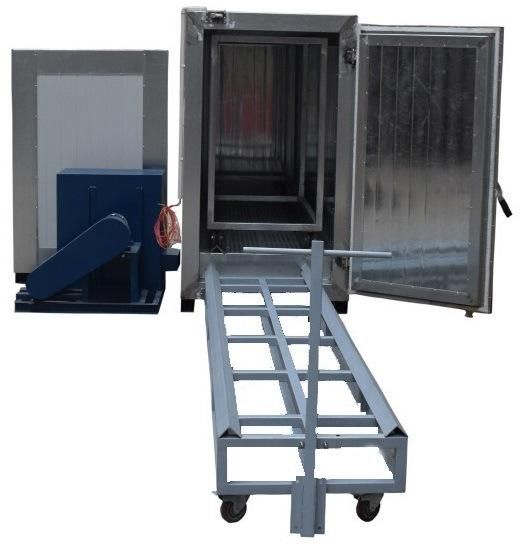

We provide with customozed trolley, which isconvenient to load and unload the work-pieces from two sides.

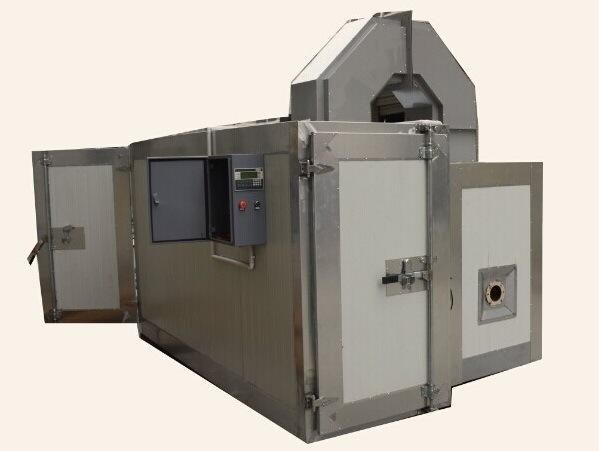

Side View of Gas Powder CoatingOven


Techinial Specifications of Gas Powder Coating Oven

Model	colo-0813 (indirect fired heater)
Worksize dimensions	800 width x 1000 height x 3000 depth
Overall dimensions	1200 width  x 1400 height x 3500 depth
Power supply	LPG/Natural gas /diesel
Voltage/Frequency	380V(50-60hz)
Warm-up time	15-30 min. (180° C)
Temperature stability	< ± 3.0-6°C
Temperature max.	250° C
Burner	Italy Riello, 10,0000cal
Circulation/ Air flow	Vertical ,Variable through holes on the walls
Ventilation performance	1131-2565m3/h
Motor power	1.5kW
Warranty	12 months

Detailed Introduction of Gas Powder Coating Gas Oven

Material
1) inner wall: Galvanized Steel(thickness=1~1.5mm),
2).interlayer: Rock Wool Board(thickness=100~120mm), insulated, maintain the inside temperature
3).outer wall: Color Steel(thickness=1-1.5mm), anti-rust
Heating system
Italy Riello burner, 100,000Cal.
One set of heat exchanger,

Circulation system
One set of circulation fan motor for circulating the hot air in the oven chamber, 2.2kw motor,

Control system
PLC control system for easy operation You can setting heating time and temperature on the panel. When the heating time arrive, the system will stop automatically.

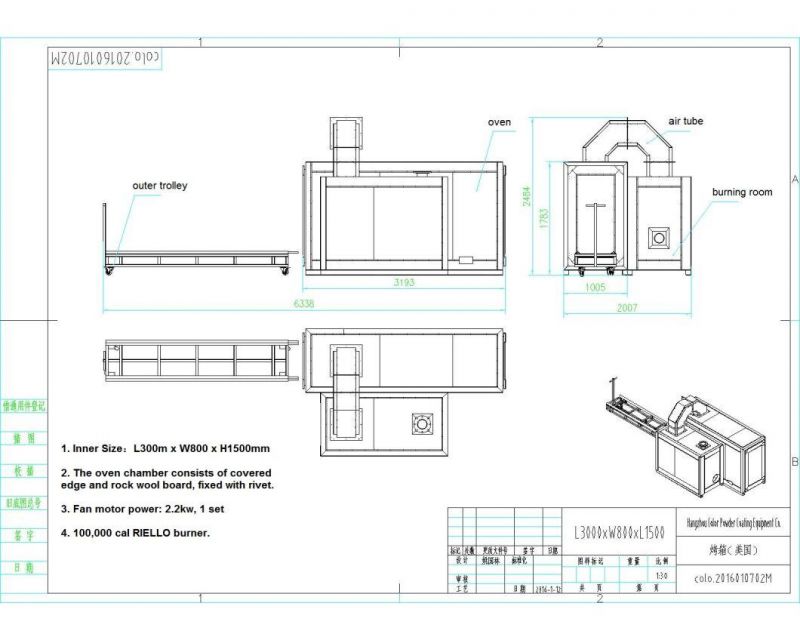

Technical Drawing
