Manual Electrostatic Powder Coating Machine
Hangzhou Feifu Import and Export Co., Ltd.- After-sales Service：Yes
- Warranty：12 Moths
- Type：Coating Spray Gun
- Coating：Powder Coating
- Substrate：Steel
- Certification：CE, ISO
Base Info
- Model NO.：FF-668
- Condition：New
- Voltage：110V,220V
- Power：50W
- Frequency：50-60Hz
- Package Size：122*80*82cm
- Hopper：36*52cm
- Weight：55kg
- Mains Input Voltage：240V,110V
- Protection Type：IP54
- Application：Different Shape Metal Surface Finishing
- Dilivery：3-5 Work Days After Received The Deposit
- Transport Package：Carton
- Specification：CE ISO
- Trademark：FF
- Origin：Zhejiang Hangzhou
- HS Code：8424899990
- Production Capacity：100sets,Month
Description
Basic Info.
Model NO. FF-668 Condition New Voltage 110V/220V Power 50W Frequency 50-60Hz Package Size 122*80*82cm Hopper 36*52cm Weight 55kg Mains Input Voltage 240V/110V Protection Type IP54 Application Different Shape Metal Surface Finishing Dilivery 3-5 Work Days After Received The Deposit Transport Package Carton Specification CE ISO Trademark FF Origin Zhejiang Hangzhou HS Code 8424899990 Production Capacity 100sets/MonthProduct Description

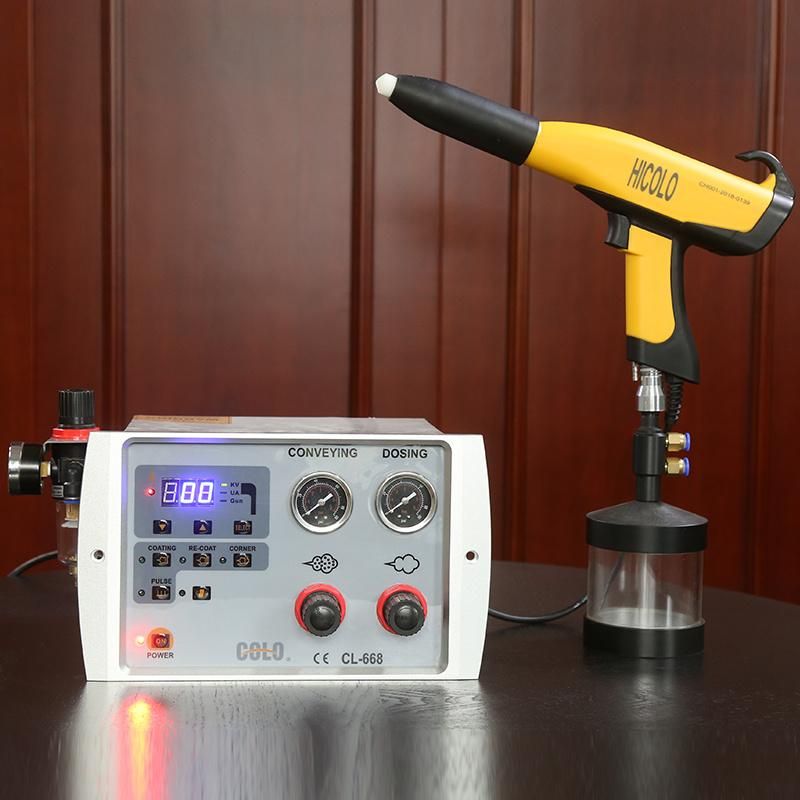

FF-668 Manual Electrostatic Powder Coating MachineDescription
FF-668 Manual Electrostatic Powder Coating Machine with 3 presett function , flat parts coating, corner parts coating, re-coating, perfect for coating most kinds of parts, with a fashionable design, compact and flexible structure.
Match with FF-08 powder gun.
Summary of the advantage
1,High coating efficiency
2,Perfect coating results
3,Well balanced ergonomic handling
4,Simple and easy maintenance
5,Robust and lightweight design
6,Wide range of accessories
7,intelligent function
The process of the coating:
The powder is fluidized in the powder hopper. The injectors transport the powder through the hoses to the guns. The guns spray a powder/air mixture onto the workpieces.
Character: Controller has one-touch intelligent operation button good for flat parts, complicated parts and recoat
Specifications
| MODEL | F-1 |
| Gun Weight | 500G |
| Rated output voltage | 24VDC |
| Input voltage | -200KV |
| Maximum output current | 180Ua(max) |
| Maximum output voltage | 0-100K(adjustable) |
| Maximum powder injection | 600g/min |
| Polarity | negative |
| Maximum input-air pressure | 10kg/cm |
| Optimum input-air pressure | 6kg/cm |
| Optimum input-air pressure | 4kg/cm |
| Maximum water vapor content or compressed air | 1.4g/N m3 |
| Maximum oil vapor content of compressed air | 0.1ppm |
| Maximum compressed-air consumption | 13.2 m3/h |
| Temperature range in use | -10 ºC+50 ºC |

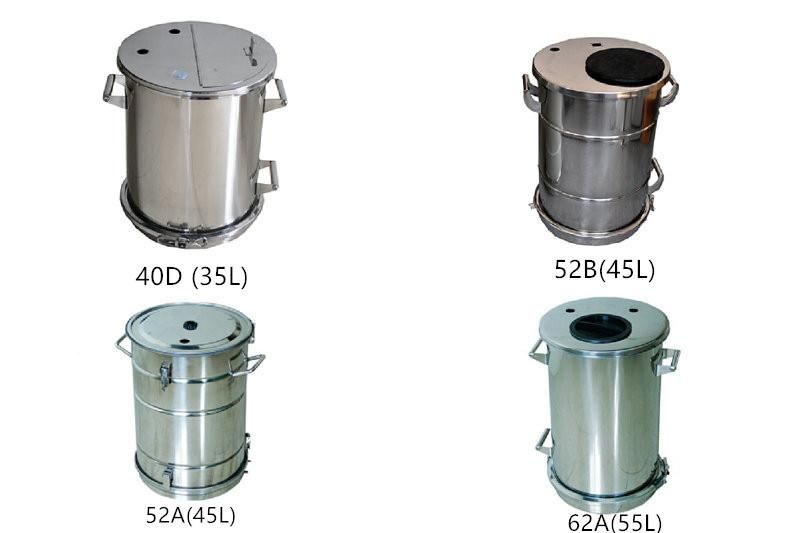

Hoppers
