• Model NO.：colo-800D
• Voltage：110,220
• Model：Intelligent Operation Function
• Hz：50-60Hz
• Material / Metal：Metal
• Size：120X79X73cm
• Weight：55kg
• Transport Package：Carton, Wodden Case
• Specification：CE
• Trademark：COLO
• Origin：China
• HS Code：8424899990
• Production Capacity：3000PCS

Basic Info.

Model NO. colo-800D Voltage 110/220 Model Intelligent Operation Function Hz 50-60Hz Material / Metal Metal Size 120X79X73cm Weight 55kg Transport Package Carton, Wodden Case Specification CE Trademark COLO Origin China HS Code 8424899990 Production Capacity 3000PCS

Product Description

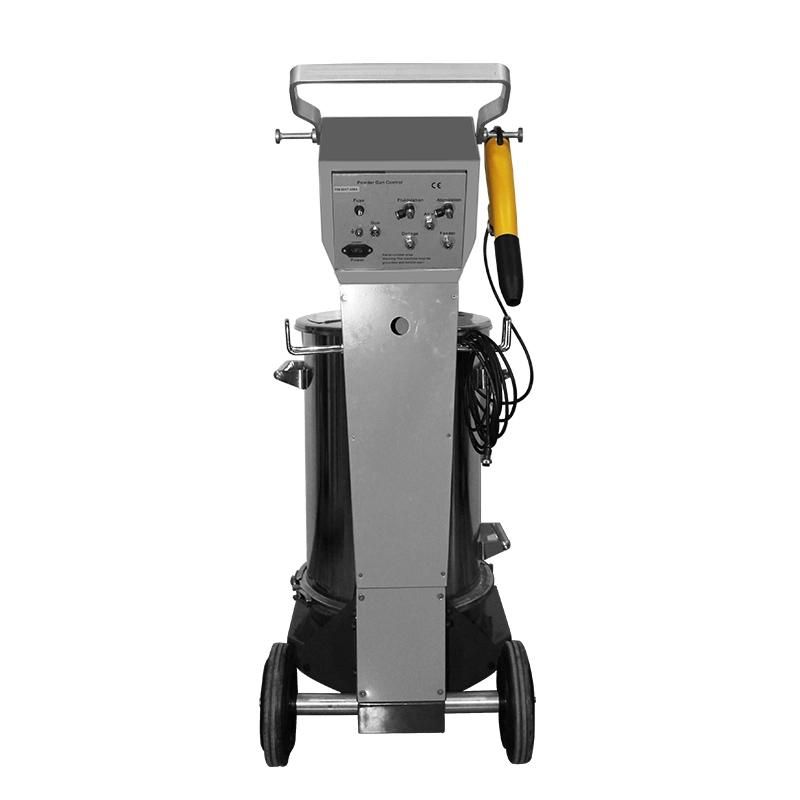

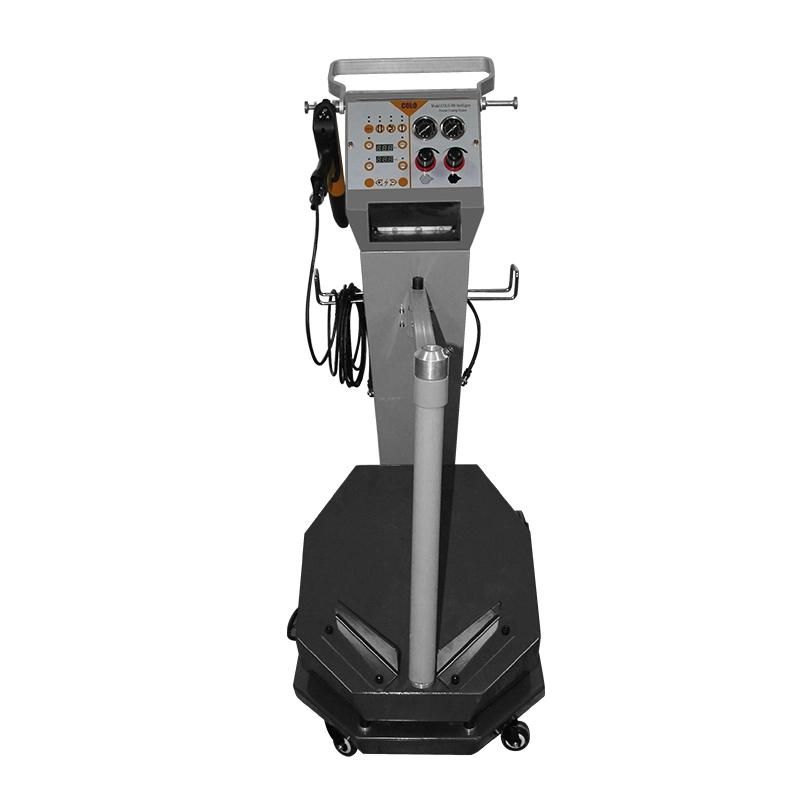

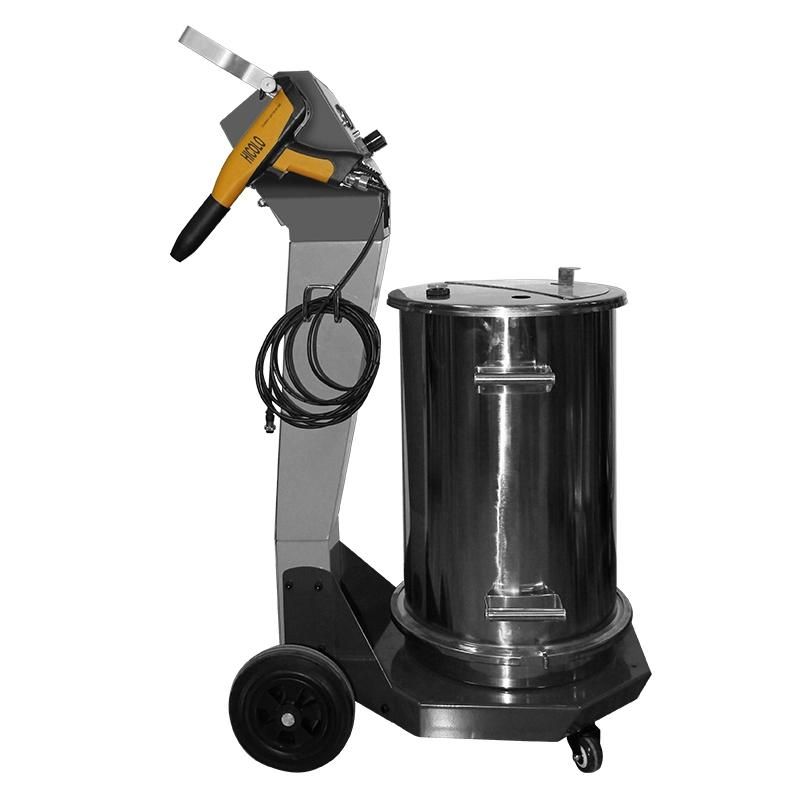

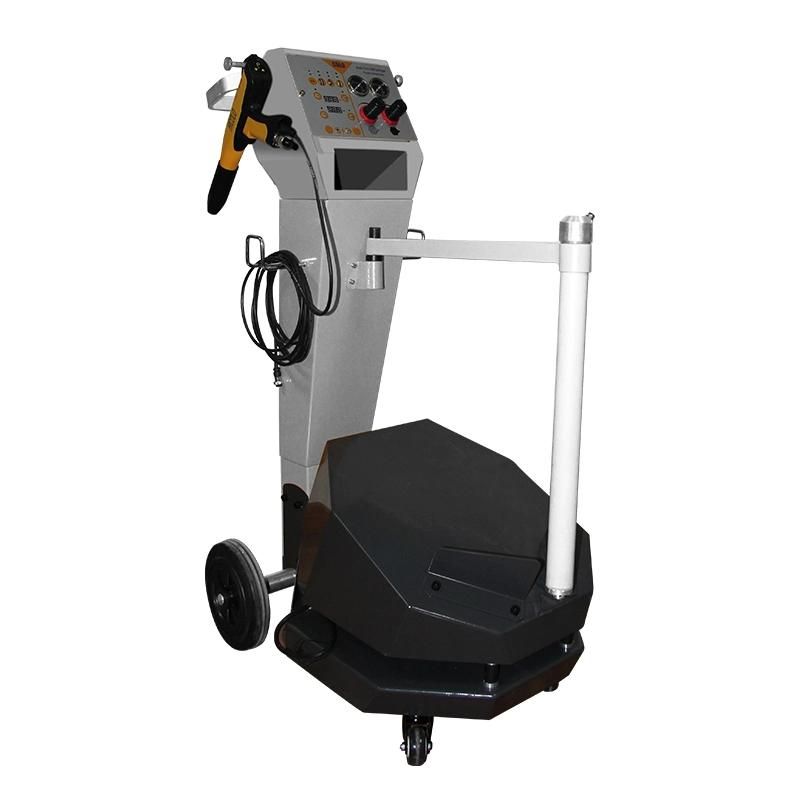

Electrostatic Manual Powder Coating Control Unit Colo-800d

3 programmable presets and on-gun controls offer unprecedented control of the coating process

On-gun purge provides fast, thorough cleaning select charge technology offers pre-programmed electrostatic settings for recoating

Feature for real-time monitoring Low velocity high efficiency


Powder pump Available in hopper or box feeder, wall or rail mount for added
Flexibility

Variety of custom-designed nozzles provide maximum versatility and highest powder delivery efficiency, even on difficult shapes





Modular hopper disconnects without tools

Power range	100-240 V
Frequency	50/60HZ
Input power	50W
Temperature range in use	-10 +50
Powder Gun	colo-06
Gun weight:	500G
Input voltage	MAX12V
Input current	MAX1A
Maximum output current	180Ua(max)
Maximum output voltage	0-100KV (  adjustable)
Maximum powder injection	600g/min
Polarity	negative (-)
Pneumatic technical spec
Maximum input-air pressure	10 bar / 145 psi
Optimum input-air pressure	6 bar / 87 psi
Maximum water vapor content or compressed air	1.3 g/m3
Maximum oil vapor content of compressed air	0.1 mg/m3
Maximum cimpressed-air consumption	13.2 m3/h

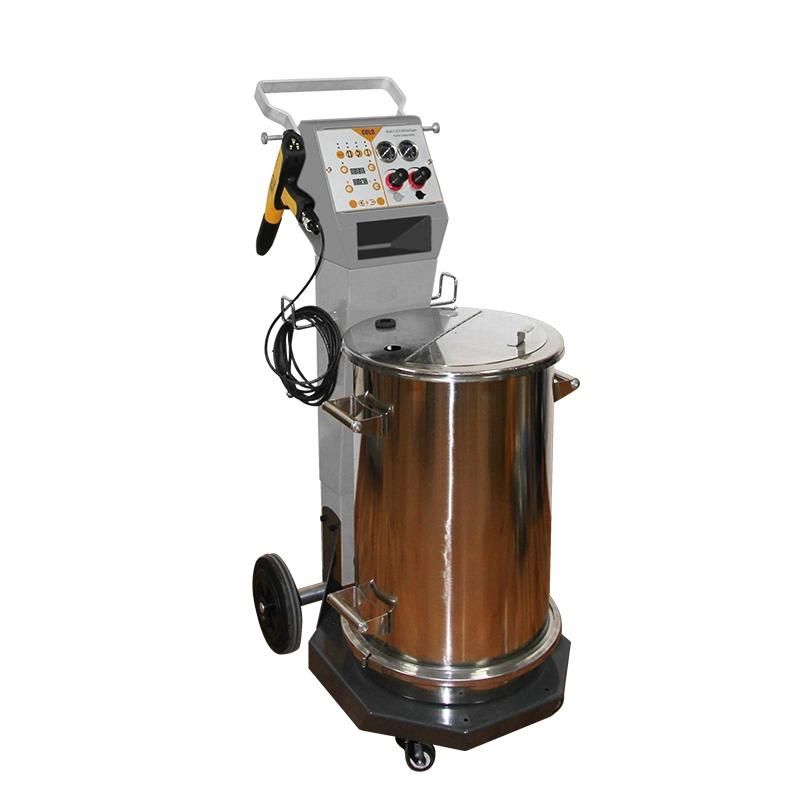

Colo-800D with vibrating tube ,suitable for change color fast
