• Model NO.：GMMA-60L
• Power Source：Electric
• Certification：CE, ISO
• Bevel Angel：0-90 Degree
• Plate Thickness：6-60mm
• Milling Head：Dia 63mm
• Single Bevel Width：0-15mm
• Bevel Width：0-60mm
• Plate Material：Carbon Steel, Stainless Steel, Alloy Steel etc
• Cutting Mode：Cold Cutting
• Transport Package：Wooden Case
• Specification：800 * 800
• Trademark：TAOLE
• Origin：Shanghai, China
• HS Code：846090
• Production Capacity：600 Sets Per Year

Basic Info.

Model NO. GMMA-60L Power Source Electric Certification CE, ISO Bevel Angel 0-90 Degree Plate Thickness 6-60mm Milling Head Dia 63mm Single Bevel Width 0-15mm Bevel Width 0-60mm Plate Material Carbon Steel, Stainless Steel, Alloy Steel etc Cutting Mode Cold Cutting Transport Package Wooden Case Specification 800 * 800 Trademark TAOLE Origin Shanghai, China HS Code 846090 Production Capacity 600 Sets Per Year

Product Description

GMMA-60L Self propelled metal edge beveling milling machine for U J bevel

Plate edge milling machine mainly to do bevel cutting or clad removal / clad stripping on steel plates material like mild steel, stainless steel, aluminum steel,alloy titanium,hardox,duplex etc.  GMMA-60L Self propelled metal edge beveling milling machine for U J bevel for plate thickness from 6 to 60 mm, bevel angel from 0 to 90 degree adjustable. Available for 0 degree facing operation or Clad removal operation.  Spindle adjustable to process U/J bevel.

Specifications for Self propelled metal edge beveling milling machine for U J bevel

Models	GMMA-60S	GMMA-60L
Power Suppy	AC 380V 50HZ	AC 380V 50HZ
Total Power	4520W	4520W
Spindle Speed	1050r/min	1050r/min
Feed Speed	0~1500mm/min	0~1500mm/min
Clamp Thickness	6~60mm	6~60mm
Clamp Width	>80mm	>80mm
Clamp Length	>300mm	>300mm
Bevel Angel	0~60 degree	0~90 degree
Singel Bevel width	0-20mm	0-20mm
Bevel Width	0-45mm	0-60mm
Cutter Diameter	Dia 63mm	Dia 63mm
Inserts QTY	6 pcs	6 pcs
Worktable Height	700-760mm	700-760mm
Suggest Table Height	730mm	730mm
Worktable Size	800*800mm	800*800mm
Clamping Way	Auto Clamping	Auto Clamping
Wheel Size	4 Inch STD	4 Inch STD
Machine Height Adjust	Hydraulic	Hydraulic
Machine N.Weight	200 kgs	225 kgs
Machine G Weight	255 kgs	260 kgs
Wooden Case Size	800*690*1140mm	950*700*1230mm

Futures for GMMA-60L Self propelled metal edge beveling milling machine for U J bevel

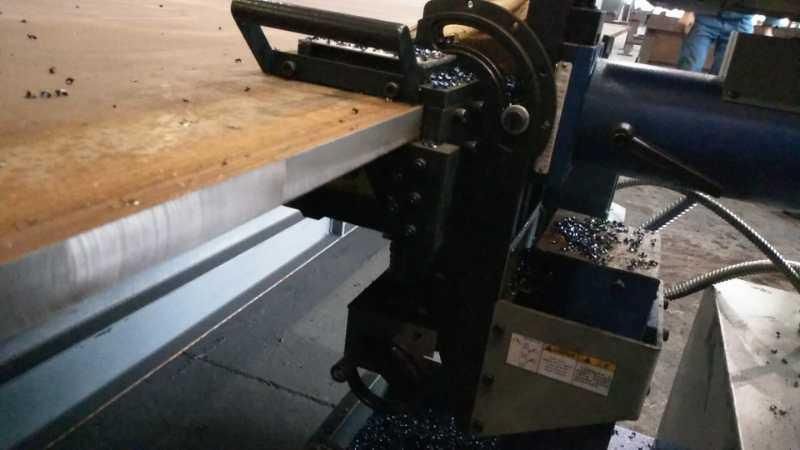

1) Automatic walking type beveling machine will walk along with plate edge for bevel cutting
2) Beveling machines with universal wheels for easy moving and storage (Heavy duty wheels for heavy duty plates)

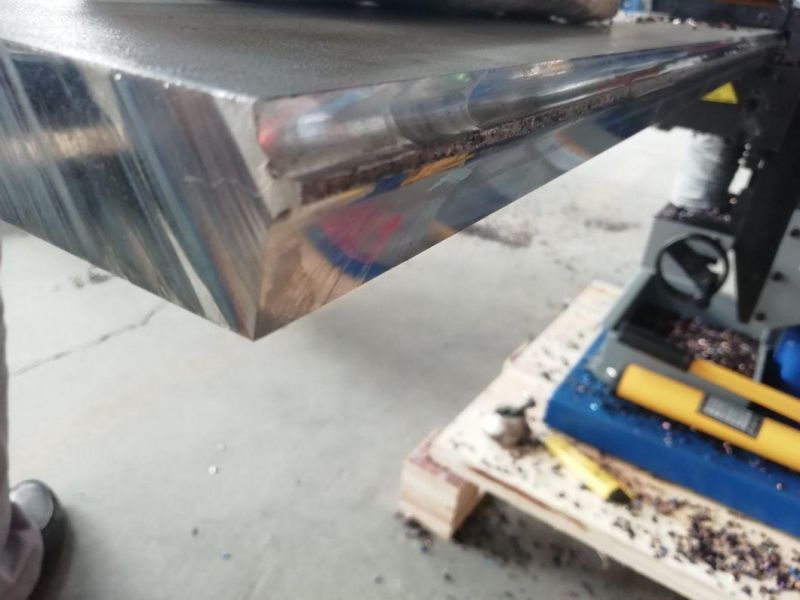

3) Cold cutting to aovid any oxide layer by using milling head and inserts for higher performance on surface Ra 3.2-6.3 .
     It can do welding directly after bevel cutting. Milling inserts are market standard.
4) Wide working range for plate clamping thickness and bevel angels adjustable.
5) Unique design with reducer setting behand more safe.
6) Available for multi bevel joint type and easy operation.
7) High efficiency beveling speed reach 0.4~1.2 meters per min.
8) Automatic Clamping system and hand wheel setting for slight adjustment.
9)  Machine head turnable for both top bevel and bottom bevel



Application for GMMA-60L Self propelled metal edge beveling milling machine for U J bevel

1. GMMA-60L are widely used for carbon steel plate like Q235, Q255,Q345 etc.
2. Applicatd industry like steel construction, shipbuilding,pressure vessel,welding manufacturing
3. Bevel angel 0-90 degree adjustable OK to process U/J bevel by changing milling head and inserts.


RFQ

Q1: Are you factory?

A1: Yes. We are the direct manufacture for plate beveling machine with brand of "TAOLE" and export with company name of "SHANGHAI TAOLE MACHINE CO.,LTD"

Q2: How long do you need for shipment?

A2; Standard models of beveling machine are stock avaiblable which could be test and pack ready in 3-5 days.  Customized solutions normally need 30-45 days fresh made. CNC edge milling machine request 3-4 months.




Inquiry Guide for plate beveling machine

Before exact price offer. Can you pls advise below points to choose suitable models for metal sheet beveling?

1. Are you user or reseller for this beveling machine?
2. What is your plate material? ( Like Carbon steel, stainless steel or alloy steel etc)
3. What is your plate sizes? (Maximum and Minimum will be OK)
4. Do you request high precisions on the bevel surface?

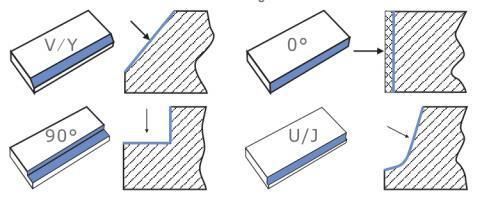

5. What kind of bevel joint do you need to process?  Mostly like V/Y, K/X, U/J,L type, 0 degree clad removal.
6. How about bevel sizes ? (Better if could share the drrawing and sizes)

Pls feel free to contact us if any interested models or questions. Thank you.
