• Model NO.：ZD206,308,4010
• Certification：CE
• Suitable Wire Diameter：2-14mm
• Color：Customized
• Weight：1000kg
• Axis Number：3 Axis,5 Axis
• Transport Package：Strong Standard Export Wooden Case
• Specification：2.6*1.15*1.2m
• Trademark：Greatcity
• Origin：China
• HS Code：8462299000
• Production Capacity：3sets,Day
• Package size per unit product：2300.00cm * 1300.00cm * 1500.00cm
• Gross weight per unit product：800.000kg

Basic Info.

Model NO. ZD206/308/4010 Certification CE Suitable Wire Diameter 2-14mm Color Customized Weight 1000kg Axis Number 3 Axis/5 Axis Transport Package Strong Standard Export Wooden Case Specification 2.6*1.15*1.2m Trademark Greatcity Origin China HS Code 8462299000 Production Capacity 3sets/Day

Packaging & Delivery

Package size per unit product 2300.00cm * 1300.00cm * 1500.00cm Gross weight per unit product 800.000kg

Product Description

4-8mm cutting and bending steel wire cnc automatic stirrup bending machine price

Advantage of wire bending machine:
1. Automatic straightening, automatic cutting, automatic bending, no interference, the efficiency is 4-5 times that of traditional models;
2. The inner and outer molds can be rotated and lifted, and the operation is simple and easy to learn;
3. The overall use of servo motor control, eliminate backward hydraulic system, to prevent noise and oil;

Design concept of 2D wire bending machine:
1. The machine is used instead of labor, without the need to straighten the material and without the need to open the mold;
2. Wire forming machine is suitable for iron wire, steel wire, stainless steel wire and non-ferrous metal wire (including round wire, square wire, flat wire), can be bent into square, round, hexagonal, oval and various irregularities Shaped flat wire shape;

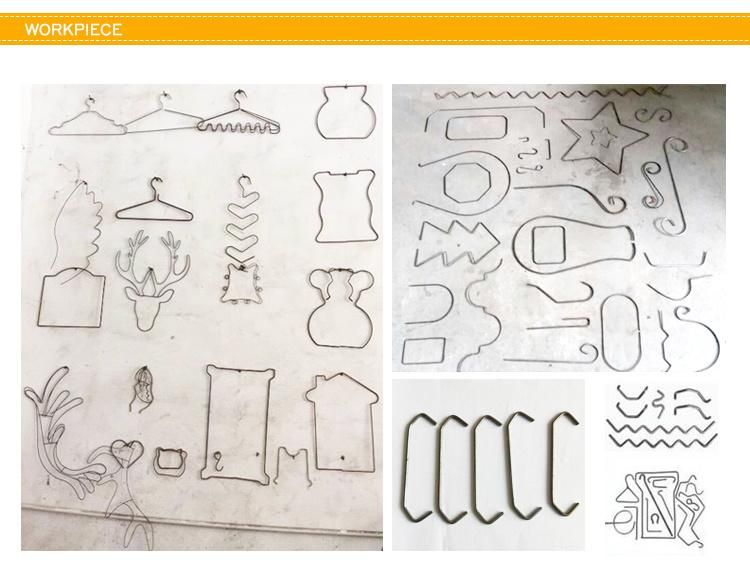

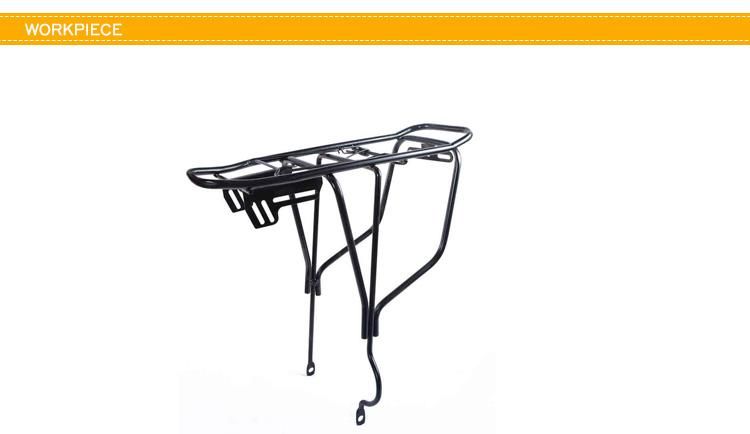

3. Suitable for wire mesh basket processing and various handicrafts, hardware kitchen and bathroom racks, daily necessities hardware, auto parts, sun visor skeleton, square snake spring, special-shaped spring, pet cage breeding cage, supermarket hook, bicycle zero Various wire forming for accessories, lighting lampshades, garden flower stands, etc.

Technical parameter of wire bending machine

Model	ZD-2D-206	ZD-2D-308	ZD-2D-4010
Number of shaft	3	3	3
Process wire diameter	2-6mm	3-8mm	4-10mm
Number of wire feeder	3 suits	3 suits	3 suits
Applicable wire	Round wire, flat wire, square wire (applicable to any wire material)	Round wire, flat wire, square wire (applicable to any wire material)	Round wire, flat wire, square wire (applicable to any wire material)
Data storage	10000 data, 300 data as a group	10000 data, 300 data as a group	10000 data, 300 data as a group
Maximum wire feed speed	100m/min	22m/min	11m/min
Servo motor total power	6.1kw	7.8kw	11.7kw
Action direction	Both the inner and outer molds can be raised and lowered, and the positive and negative bending	Both the inner and outer molds can be raised and lowered, and the positive and negative bending	Both the inner and outer molds can be raised and lowered, and the positive and negative bending
Feeding accuracy	±0.1	±0.1	±0.1
Maximum bending speed	300 rpm, angle ±180°	300 rpm, angle ±180°	300 rpm, angle ±180°
Input power	380V, 50HZ/60HZ	380V, 50HZ/60HZ	380V, 50HZ/60HZ
Machine weight	700kg	800kg	950kg
Machine size	2400*1000*1400mm	3000*1000*1400mm	3600*1000*1400mm

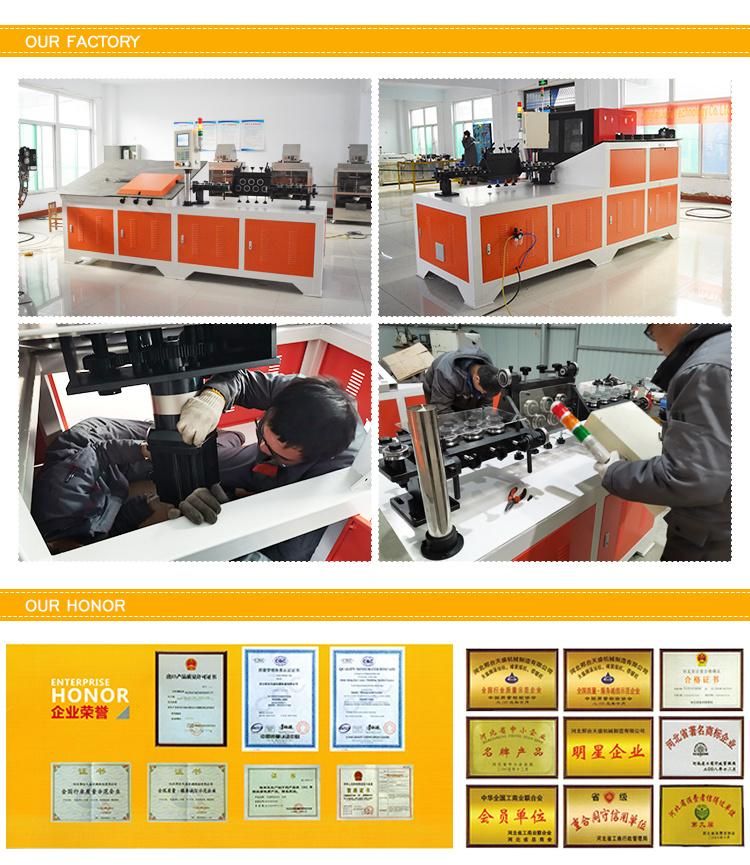

          Xingtai Greatcity(JUDU) machinery manufacturing Co. Ltd is located in the historical industrial zone, Hebei province. Founded in1999, we are a professional manufacturer of series of cnc wire bending machine and other wire processing machinery. For twenty years in development, our company has always been adhering to credit the first best quality in after sale service, innovation, self- improvement, adhere an independent intellectual property right as the core of scientific and technological innovation. The current steel hoop bending machine and horizontal lathes for the company's main product are sold throughout the country, some products exported to Asia, Africa, and other countries and regions, we are abide by integrity and innovation, entrepreneurial spirit, relying onleading research and development capabilities efficient manufacturing, stable quality and good service to meet the needs of our customers at home and abroad, the company has now passed the ISO900l:2000 international quality management system certification.
       "Greatcity(JUDU)' trademark has been identified as an unique brand name product that got the honorary title among many.
       Within more than20 years of development besides struggles, Greatcity(JUDU) is still keeping up its effort to maintain a brilliant business success in whole over the world due to its hardworking, courage and the will to improve its creation for customer satisfaction and maintain the reputation to be the best Chinese machinery manufacturer.
