• Model NO.：2300D
• Product Name：2300d Reciprocator
• Transport Package：Wooden or Carton
• Specification：Automatic powder painting
• Trademark：COLO
• Origin：China
• HS Code：8424899990
• Production Capacity：50set,Month

Basic Info.

Model NO. 2300D Product Name 2300d Reciprocator Transport Package Wooden or Carton Specification Automatic powder painting Trademark COLO Origin China HS Code 8424899990 Production Capacity 50set/Month

Product Description

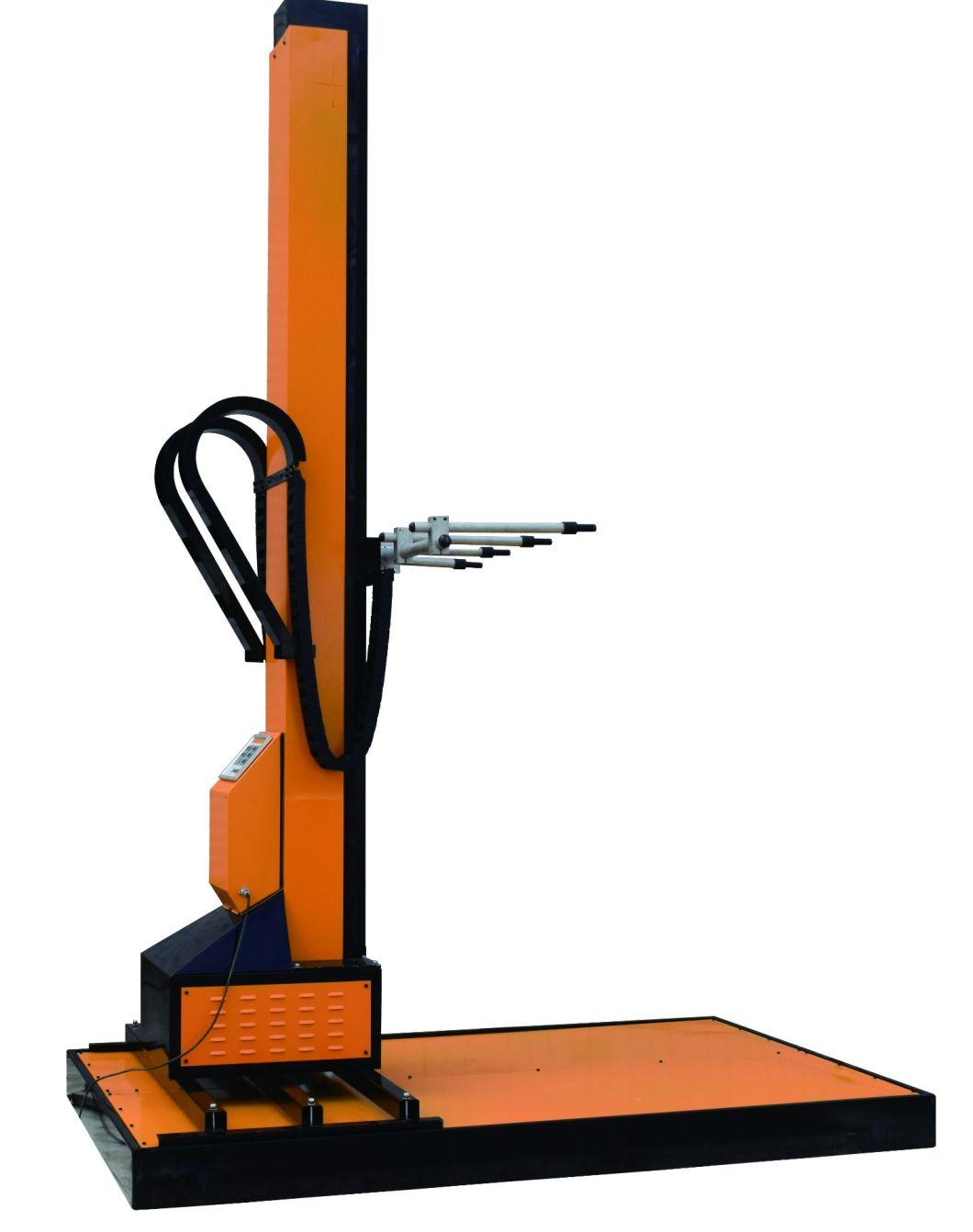

2Axes stroke powder painting spray gun automatic reciprocator with sliding table
The programmable two-dimensional and three-dimensional intelligent controllable reciprocator is specially designed to improve the working efficiency and coating quality.The Equipment can meet the highest requirement of coating quality,as the ideal product for improving surfce dinishing coating design.


Features and Advantages
1.Stroke can be adjusted in the controller,each part can be arbitrarily set in the travel rang of the upper and lower limited position,while the speed can be set in a certain range.
2.The speed of vertical direction in X-raxis can be segment adjustable;vertical speed up tp 78m/min(the data can be customized based on cutomer needs.)
3.The maximun speed of fore-and-aft direction in Z-axis is 10m/min(the data can be customized based on customer's need),adjustable within motion stroke range.There is a corresponding motion control according to the detection of part position signal.
4.If reciprocator position changed,Z-axis direction would move to Y-axis direction(moving with the production line.)

Technical Data

standard stroke	1000-2000
Lifter loading	40kg
speed range	0-1M/S (variable frequency adjustable)
Voltage	220V
Power	0.75kw 0.37kw
Up and down point delay	up and down point movement adjustable

Supporting equipment

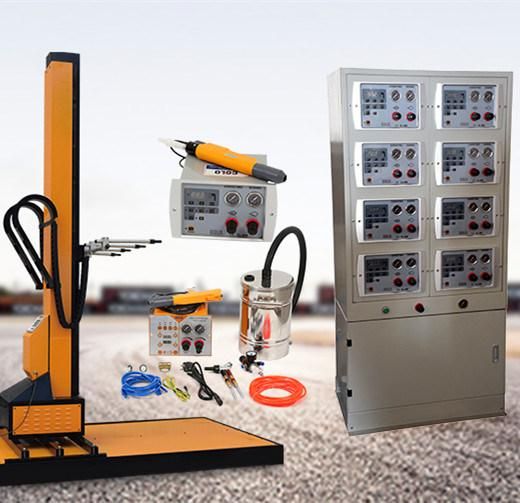

Match with automatic powder coating gun and control cabinet.

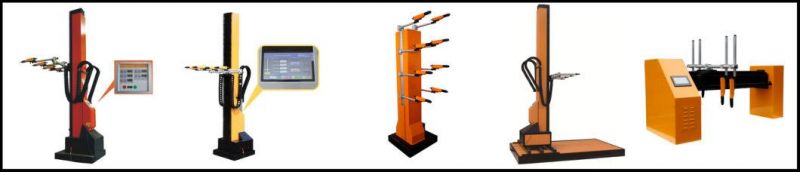

Different Models for Choice
