• Model NO.：COLO-800D
• Transport Package：Carton
• Specification：Hopper feed type
• Trademark：COLO
• Origin：China
• HS Code：8424899990
• Production Capacity：5000sets,Month

Basic Info.

Model NO. COLO-800D Transport Package Carton Specification Hopper feed type Trademark COLO Origin China HS Code 8424899990 Production Capacity 5000sets/Month

Product Description

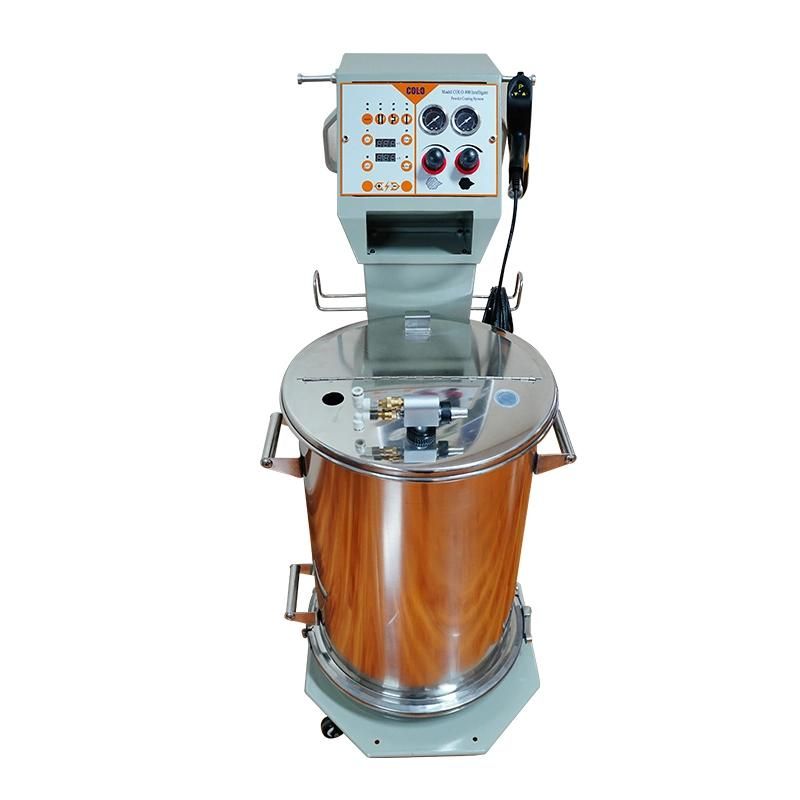

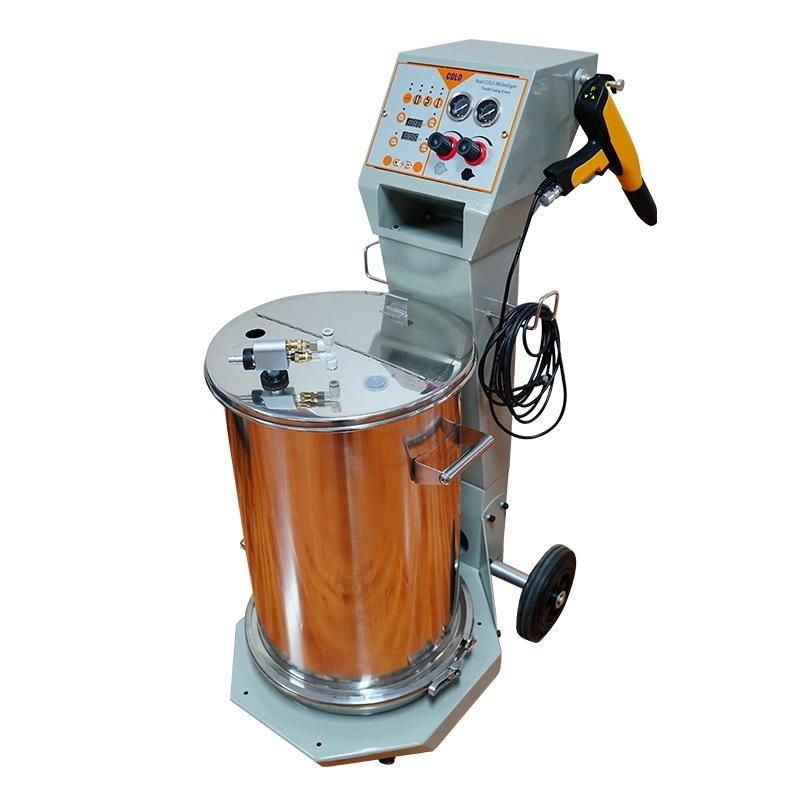

COLO-800D powder coating gun for widely use in excellent quality
Introduction
COLO-800D series is hot sale for many countries due to it's stability and intelligent function with the good prices.Now it is already become famous brand model in our factory.These model can have a great coating result on any workpiece,even simple parts or hard coating difficult parts,because of the advanced elements part for the machine,and the mature technology in the machine.

Specification
1.Digital control system, 3 preset intelligent model for flat,complex coating and recoating.
2.Auto and manual mode ,more flexible and quicker for coating diferent parts.
3.Could supply a large amount of powder under low pressure.
4.The inside circuit region is independent sea, avoiding the powder incoming.
5.Good quality dust-proof powder switch, good quality press key.
6.Control the useless power strictly, low heating value, work continuously and steadily.
7.Beautiful look with light weight
8.Excellent coating gun quality COLO-07 spray gun
9.50L powder hopper for enough powder storage ,also we have diferent size hoppers

Applicaton:
-For coating thermosetting powders on the parts, powder coating such as: polyester powder,epoxy powder,mix    powder etc.
-Coating parts like: car rim,bicycles,steel pipes,gas cyclinder,steel furniture,lock,gas cylinder etc.

800D Only in COLO with Excellent Quality
-with 50L powder hopper

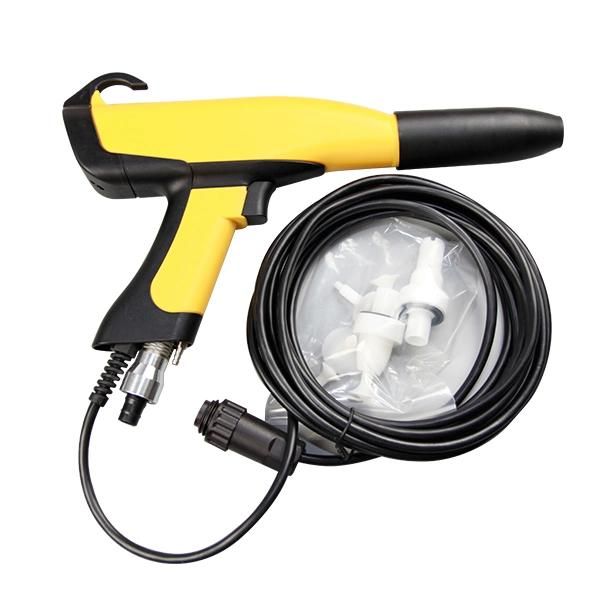

COLO good looking &quality 08 gun

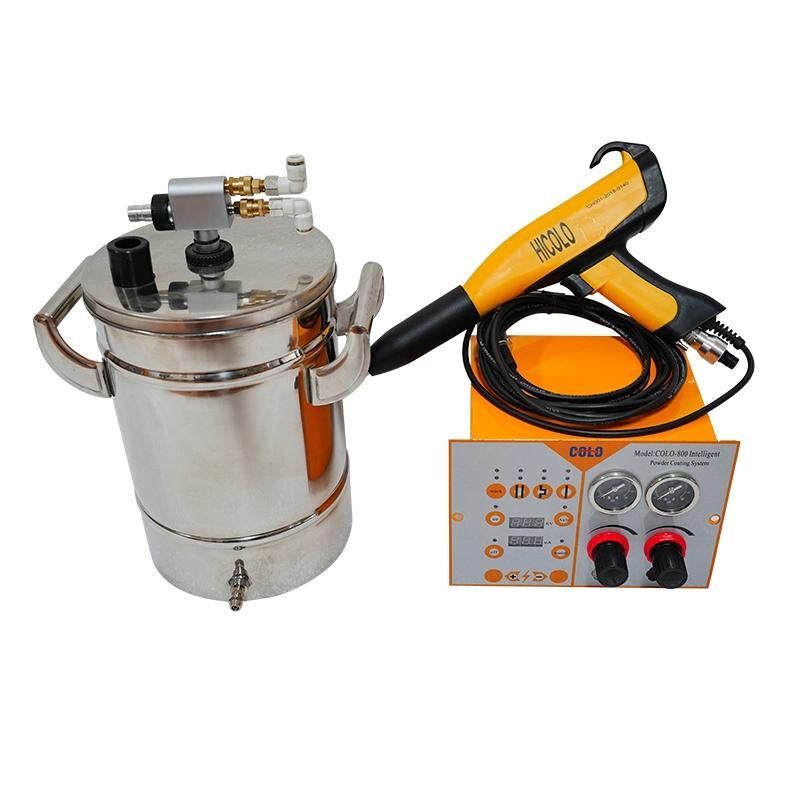

For Small Hopper
All of our machines can equipped with different hoppers


All spare parts for these machine are available after sales,
Include PCB board,cascade,nozzles,hoppers,powder pumps etc.

Technical Parameters

Electrical data
Power range                                  220V
Frequency                                     50HZ
Temperature range in use                      0 ºC  - +40 ºC

Powder Gun

Gun weight:    .........                    500G
Rated output voltage ...…                      24VDC
Input voltage     ......…                       220kv
Maximum output current  ...…                   180Ua(max)
Maximum output voltage......                   0-100KV (  adjustable)
Maximum powder injection :...…                    600g/min
Polarity .........                                negative (-)

Pneumatic data

Maximum input-air pressure ........                 10kg/cm
Optimum input-air pressure.....                        6kg/cm
Minimum input-air pressure   ...                      4kg/cm
Maximum water vapor content or compressed air …..      1.3g/N m3
Maximum oil vapor content of compressed air   .....     0.1mg/ m3
Maximum compressed-air consumption...…            11 m3/h

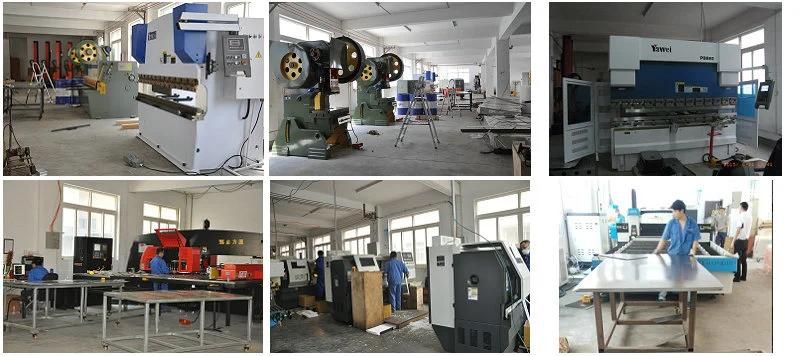

Our Factory
We own advanced machine to produce the machien, every single products will be tested for the quality  to ensure the excellent products, and than send to our customers.

We sincere welcome you to visit our factory,and also wish to establish a long-term business relations with you!
