Product Description

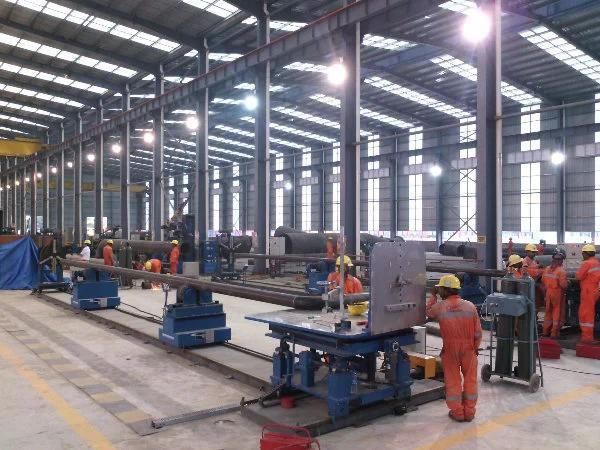

Automatic Piping Spool Fabrication Line




NAEC is dedicated to be pipe spool fabrication expert. Out system design capability is able to minimize user's manpower consumption of one unit Dia. Inch fabrication work. Our design ability can be 0.25manhour/D.I averagely. It means the comprehensive productivity under automatic fabrication mode can achieve up to 15 times higher than that under traditional manual mode.

Our solution covers fabrication of different materials, such as C.S, S. S, Alloy steel, Duplex S. S. etc, from pipe dia. 2" to 60". Besides our automatic welding station can do automatic TIG/ RMD-MIG root pass and TIG/ RMD-MIG/MIG/ SAW fill and cap pass.

 We not only provide effective pipe spool fabrication solution, but also provide fast build up workshop solution, raw material prefabrication, finished spools Non-destructive testing solution, which can speed up the whole production construction cycle and guarantee project quality.

 Based on the above ability, our pipe spool fabrication system has been recognized worldwide and been used by many famous contractors all over the world due to the high efficiency and good quality production and mostly manpower saving advantages. We have strong confidence in providing professional solution for your pipe spool fabrication workshop.

 There are two types of pipe spool fabrication system: fixed type and containerized type. Fixed type is more suitable for heavy work load fabrication, and can get higher automation rate. Containerized type is more suitable for on site fabrication.

Main Features

1)Suitable for pipe diameter:2~60"
2)Suitable for Pipe SCH:3~80mm
3)High speed and accurate cutting processing efficiency and effect
4)Multi-types of bevel type, including single V, double V and J type
5)Motorized multi-function fitting-up guaranteeing fitting-up accuracy
6)Conveyor handling system improving handling efficiency
7)Automatic root pass, fill and cap pass
8)TIG/RMD-MIG/MAG/FCAW/SAW welding process available
9)Automatic pipe welding rate    Up to 80%
10)Be matched with production management software

Our company view

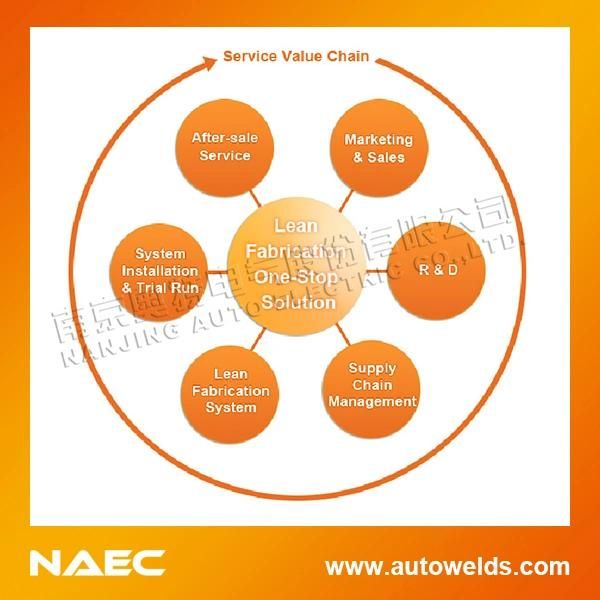

Nanjing Auto Electric Co., Ltd (NAEC) was established in 2001, taking promoting "Lean Fabrication to Global Energy Engineering Industry" as its mission, NAEC's core business is to provide Lean-fabrication One-stop Solution to energy engineering contractors and fabricators. With advanced innovation ability and continuous integration of new technology & processes, NAEC's solution ensure its users high quality and efficient fabrication, and make itself become worldwide clients' most preferred partner.
