• Model NO.：DRGS series cutting machine
• Electrical Supply：380V,50Hz,3pH(220V,60Hz,3pH Available)
• Warranty：3 Years
• After-Sales Service Provided：Engineers Available to Service Machinery Overseas
• Certification：Ce,ISO,SGS
• Name：Hydraulic Plate Shearing Machine
• Feature：Plate Shears
• Cutting Angle：Adjustable
• Material Blade Shears：6crw2si
• Cutting Stroke：Adjustable
• Control System：According to Customer Requirements
• Transport Package：Wooden Package
• Specification：Hydraulic Plate Shearing Machine
• Trademark：DURAMA
• Origin：Nanjing
• HS Code：84623990
• Production Capacity：200 Sets

Basic Info.

Model NO. DRGS series cutting machine Electrical Supply 380V,50Hz,3pH(220V,60Hz,3pH Available) Warranty 3 Years After-Sales Service Provided Engineers Available to Service Machinery Overseas Certification Ce,ISO,SGS Name Hydraulic Plate Shearing Machine Feature Plate Shears Cutting Angle Adjustable Material Blade Shears 6crw2si Cutting Stroke Adjustable Control System According to Customer Requirements Transport Package Wooden Package Specification Hydraulic Plate Shearing Machine Trademark DURAMA Origin Nanjing HS Code 84623990 Production Capacity 200 Sets

Product Description

CNC Hydraulic Guillotines Shearing Machine

 DAC360 CNC Guillotine Shear DRGS series (QC11K-series)

The model of this DAC360 cnc guillotine shear is DRGS series (QC11K-series) ,Adjustable rake angle to reduce the distortion and deformation of the metal sheet;DAC360s CNC from Holland Delem is the advanced controller for matching with guillotine shear.

Basic features for DAC360 cnc guillotine shear
• Advanced generation of hydraulic plate shear
• Total steel welded structure,stress eliminated to ensure necessary rigidity and reliability
• Structure of three pairs of rail and trolley eliminates the bearing clearance so as to improve shearing results




• Hand wheel blades gap adjustment with indicator,rapid,convenient and accutate
• Top blade could be adjusted to work for full stroke or shorter ones

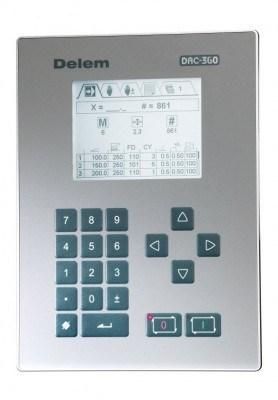

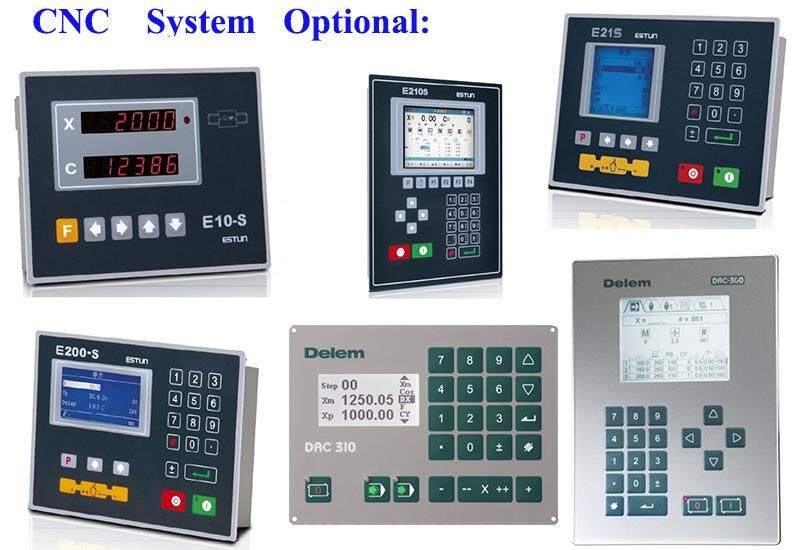

• DAC360s CNC from Holland Delem is the advanced controller for matching with guillotine shear
• DAC360s will control the position of backgauge,cutting stroke,rake angle,blade clearance,repeat times of steps etc

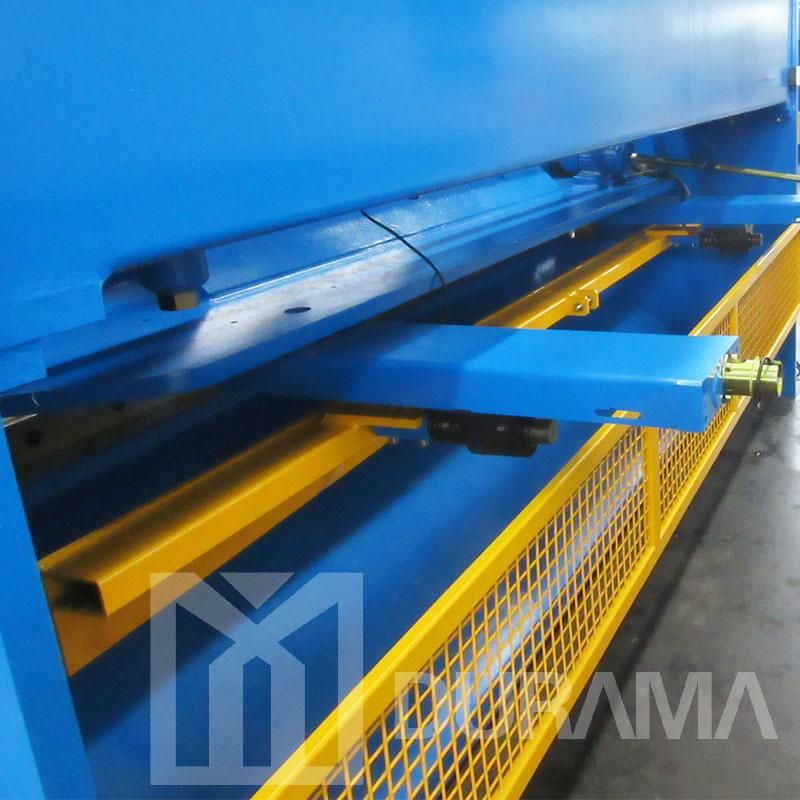

• Transfer balls on table and front support arms for easy feeding


• Adjustable rake angle to reduce the distortion and deformation of the metal sheet
• Inchlining structure of the upper blade holder for easy blanking and high cutting precision






• Customized power connection voltage, such as 3phase, 220V, 60Hz in South Ameirca,etc

DAC360 cnc guillotine shear optional elements
Cut piece sliding slope

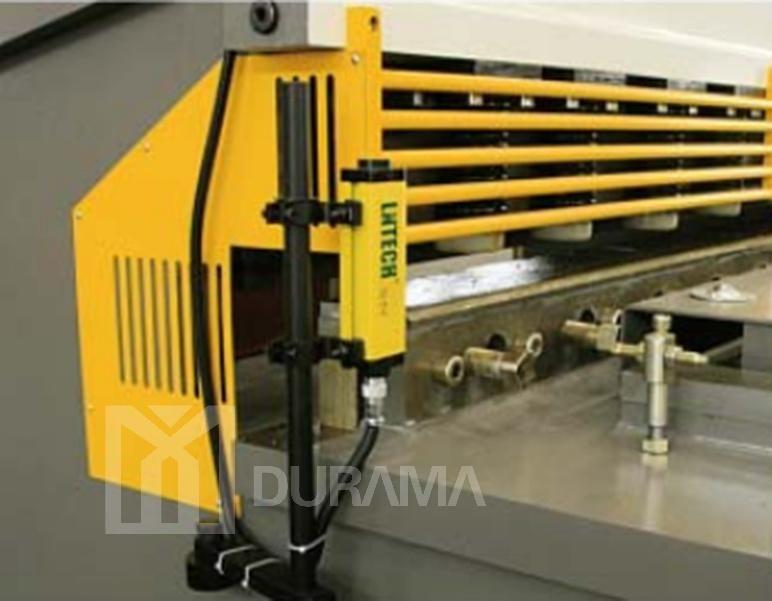

Light curtain for hand safety
Wind turbine coolant



Technical Parameters:

Model	Cutting thickness (mm)	Cutting width (mm)	Shearing angle	Strokes  (min-1)	Backgauge range (mm)	Main Motor (kw)	Weight (kg)	Overall Dimensions L×W×H(mm)
Modelo	Capacidad de corte (mm)	Logitud de corte (mm)	angulo	Golpes per minuto  (min-1)	Tope trasero (mm)	Potencia motor (kw)	Peso aprox.  (kg)	Dimensiones L×W×H(mm)
DRGS-625	6	2500	0.5-2	10-25	20-600	7.5	5,000	3270×1580×2040
DRGS-632	6	3200	0.5-2	10-25	20-600	7.5	6,400	3820×1580×2100
DRGS-640	6	4000	0.5-2	10-25	20-600	7.5	8,500	4620×1630×2160
DRGS-650	6	5000	0.5-2	8-20	20-800	7.5	13,000	5530×2075×2080
DRGS-660	6	6000	0.5-2	8-20	20-800	11	17,000	6530×2075×2610
DRGS-670	7	7000	0.5-2	10-25	20-800	11	21,000	7530×2075×2830
DRGS-825	8	2500	0.5-2	10-25	20-600	11	5,500	3270×1580×2040
DRGS-832	8	3200	0.5-2	6-20	20-600	11	6,500	3820×1580×2100
DRGS-1225	12	2500	0.5-2.5	6-20	20-800	18.5	11,000	3400×1920×2350
DRGS-1232	12	3200	0.5-2.5	6-20	20-800	18.5	12,000	3950×1920×2400
DRGS-1240	12	4000	0.5-2.5	4-15	20-800	18.5	14,000	4750×1960×2580
DRGS-1380	13	8000	0.5-2.5	5-15	20-800	30*2	52,000	8600×2900×3100
DRGS-1625	16	2500	0.5-2.5	5-15	20-800	18.5	11,000	3450×2010×2350
DRGS-1632	16	3200	0.5-2	5-15	20-800	18.5	12,800	3940×1960×2400
DRGS-1640	16	4000	0.5-2.5	5-15	20-800	18.5	15,300	4745×2010×2640
DRGS-2025	20	2500	0.5-3	5-15	30-800	30	14,000	3450×2200×2560
DRGS-2040	20	4000	0.5-3	4-15	30-800	37	21,000	4660×2200×2710
DRGS-2525	25	2500	0.5-3.5	4-15	40-1000	37	17,000	3450×2700×2900

Company Information:

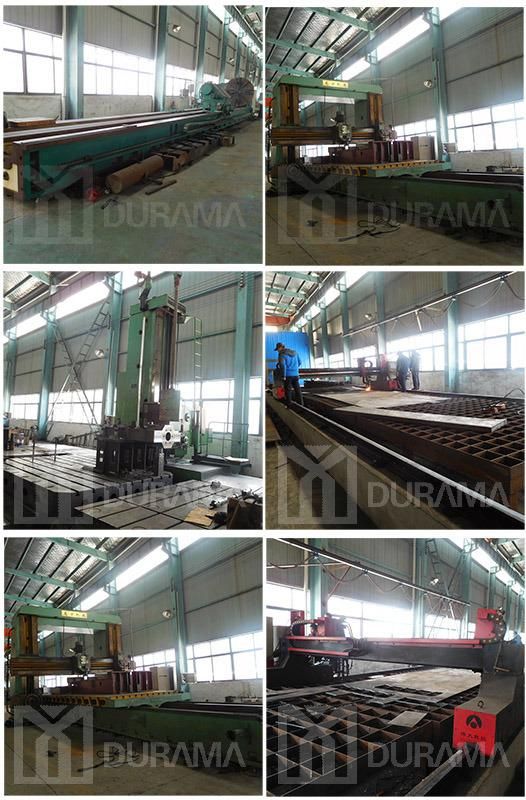

   We are DURAMA, durable machines and spare parts supplier, the designers and manufacturers of industry products. Our factories are located in industrial area in Nanjing City. With over 10 years of experience, DURAMA supplies the most comprehensive range of machines and spare parts available today.
   With continued investment and an unrivaled reputation for quality and service, DURAMA is trying to be the global center of excellence for Press Brake Tools and bending technology. We also supply relative industry machines and materials.
DURAMA is always trying best to supply durable machines and spare parts, and timeproof service to our customers.


Our Services:
1.Pre-sales:help client select the suitable machine
2.After-sales:provide free technical guidance
3.Installation service:we dispatch technician to customer's factory for installation
4.Training service:offer training of how to use our machines
5.Quality guarantee:machine warranty is 3 years, We offer flexible extended warranties if needed.
6.we arrange final test before shipment
7.Other services :
1): response within 1 hours
2): provide solution in 1 day
3): solve complaint in 2 days

Packaging and Shipping:
Standard Exporting Packaging for DURAMA Shearing  Machine
1.inner machine, it is packaged in moistureproof film.
2.pallet or wood box.
3.ground fixed bolt to confirm steady and avoid destory.
4.tightly exporting standard belf to fasten machine in container.
