• Model NO.：E3-IN-1,1320
• Customized：Non-Customized
• Advantage：Use Widely
• Condition：New
• E3-in-1/1320：Electric Combination of Shear, Brake and Slip Roll
• Max Shearing Thickness：3mm
• Max Shearing Width：1320mm
• Shearing Angle：2°
• Height of Worktable：760mm
• Max Bending Thickness：2mm
• Max Bending Width：1320mm
• Max Rolling Thickness：3mm
• Max Rolling Width：1500mm
• Motor Power：3kw
• Transport Package：Wood Case
• Specification：size: 254X145X197cm
• Trademark：UNI-TECH
• Origin：Shangdong, China
• HS Code：84622990
• Production Capacity：300 Sets

ModelE3-IN-1/1320E3-IN-1/2040Max Shearing thickness(mm)33Max shearing width(mm)13202040Shearing angle2°2.5°Number of stroke(per min)3030Back-gauge range(mm)450450Height of worktable(mm)760760Max bending thickness(mm)22Max bending width(mm)13202040Max rolling thickness(mm)33Max rolling width(mm)15002100Min rolling dia(mm)90120Motor power(kw)34N.W./G.W.(kg)2300/28003500/3800Packing size(cm)254X145X197326X145X197

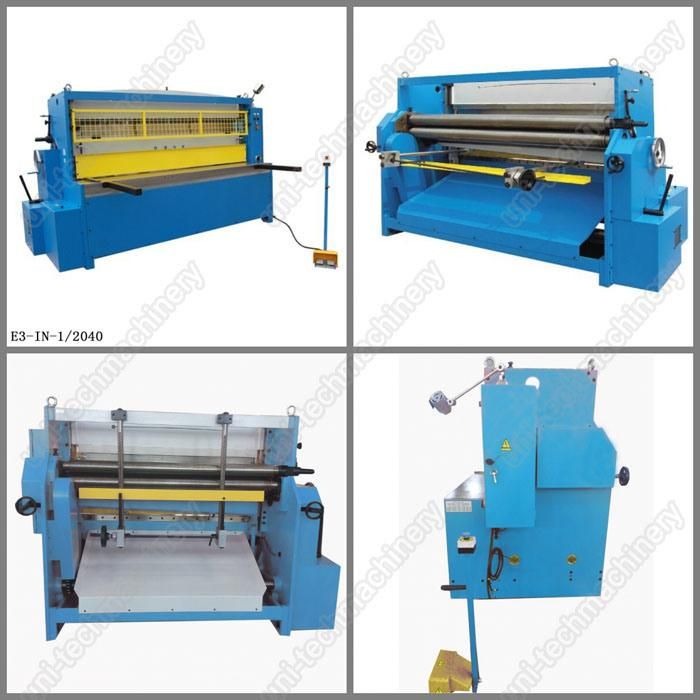

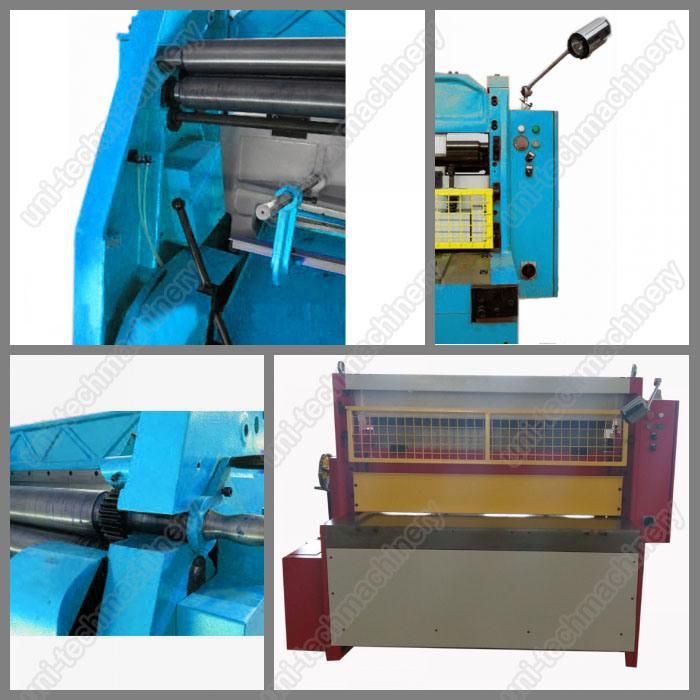

Detailed pictures:



Warranty:
What about the spare part if the machine break down?

==about the machine break down, normally our policy will be as the under way
   1) Our quality guarantee time is 12 months since the machine on board
   2) During this period, if the machine break down owing our machine itself quality problem,  we will prepare the spare parts and send to you by free within 5 days. all these will be by free.
  3) If the break down is caused by the mis operation,  we of course will supply you the spare parts, but we have to charge you the costs prices.
