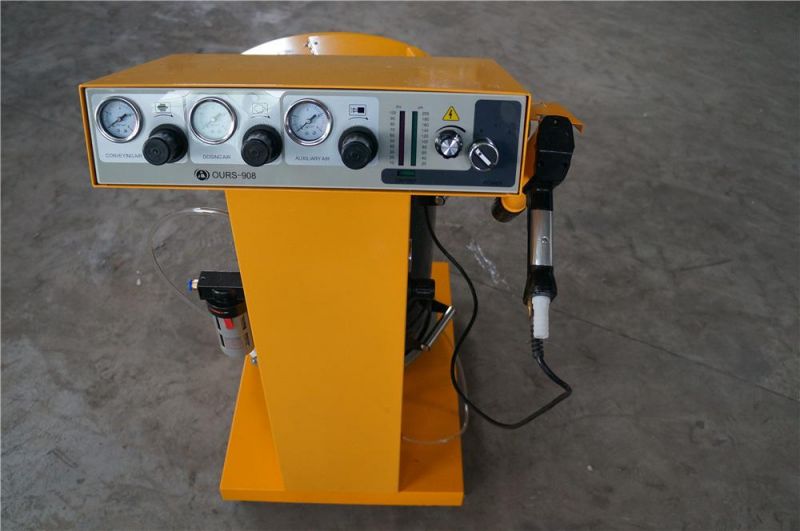

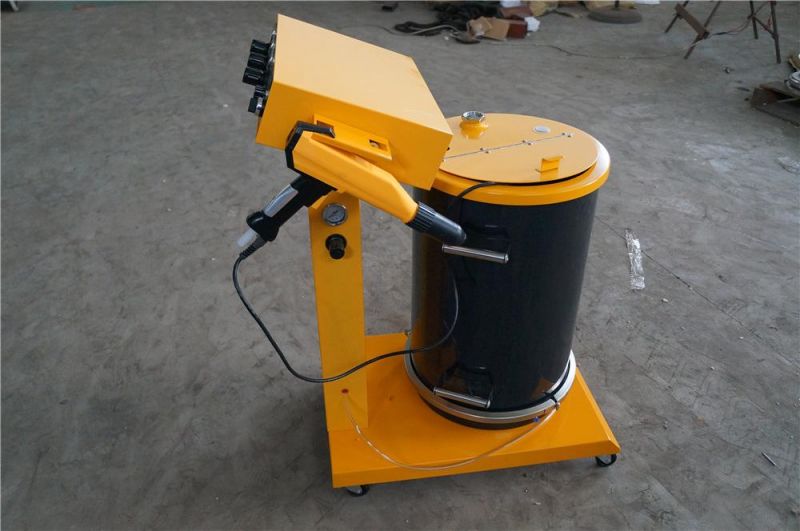

Best Quality Manual Powder Sprayer Caoting Machine
Yangzhou OURS Machinery Co., Ltd.- After-sales Service:Online Support
- Warranty:One Year
- Type:Coating Spray Gun
- Coating:Powder Coating
- Substrate:Steel
- Certification:ISO
Base Info
- Model NO.:OURS-908
- Condition:New
- Power:50-60Hz
- Voltage:220-380V
- Weight:About 37kg
- Transport Package:Carton or Wooden Cases
- Specification:Steel
- Trademark:OURS COATING
- Origin:Yangzhou, Jiangsu
- HS Code:8424200000
- Production Capacity:100000sets,Year
Description
Technical parameters:
1.Input voltage: one phase 200-240V 50Hz
2.Solenoid valve control voltage:24VDC
3.Input voltage:0-9VAC
4.Input power:50VA
5.Input pressure:0-6bar
6.Power frequency: about 20KHz
7.Output pressure:0-5bar
8.Input current:0.8A maximum
9.Output frequency:50W
10.Output voltage:0-100KVDC
11.Output current:0-200uA
12.Gun weight: about 460g
13.Power cable: about 3m
14.Safety level:IP64
15.Pneumatic control voltage:24VDC
16.Output powder volume: 500g /min (5bar/h)
17.Powder tank:Φ350x500 about 50L, with detachable bottom
Our service:
1. Purchase Service Ours coating has a specialized and efficiency working team. If you are new on the coating, that some pictures or drawings of your products and workshop could be shown will be appreciated, we will give you specialized suggestion of whole work. |
2. Shipping Service Ours coating has a specialized and independent department which just for shipping the buyer's goods. The workers know T/T, L/C Items well. All Exported documents could be made perfectly. Our company cooperates with the most famous shipping company in China also. They could provide the best and economic shipping ways to the buyer's port. |
3. Installation Service Installation Service is available with all our machines. Ours coating will dispatch technician to the Buyer's factory to install and trial operate the equipment. |
4.Clients' Training Service Our Company can accept the buyer send their own technician to our factory to learn how to operate machines. Also, training in the installation period is better acceptable. |
5.After Sales Service We provide one year warranty period. Many spare parts will be prepared in the tool box together with machines. |
