• Max. Number of Block：21
• Certification：REACH, RoHS, ISO, Ce
• Condition：New
• Transport Package：Seaworthy Packing
• Trademark：SUNTECHMACH
• Origin：China
• HS Code：846330
• Production Capacity：200 Sets,Year

Basic Info.

Max. Number of Block 21 Certification REACH, RoHS, ISO, Ce Condition New Transport Package Seaworthy Packing Trademark SUNTECHMACH Origin China HS Code 846330 Production Capacity 200 Sets/Year

Product Description

Wet/Water Tank Wire Drawing Machine







I. Features of Machine:
1) Transmission system: via strong two-stage narrow V-belt combination special gear box; or via entire gearbox, buyers can choose either of them.

2) Control part: Normal control, frequency control, soft starting control. It's very popular with users because of energy saving, less cost, smaller space area and less workers labor.

II.  Main Technical Parameters:

Model	LT9/700-900	LT11/700-900	LT7/560-650	LT9/560-650	LT11/560-650	LT13/560-650	LT15/500-650	LT17/450-560
Capstan diameter	Φ700/900mm	Φ700/900mm	Φ560/650mm	Φ560/650mm	Φ560/650mm	Φ560/650mm	Φ500/650mm	Φ450/560mm
Drawing dies	9	11	7	9	11	13	15	17
Max.inlet dia	Φ8.0mm	Φ8.0mm	Φ6.5mm	Φ6.5mm	Φ8-6.5mm	Φ8-6.5mm	Φ6.5mm	Φ6.5mm
Min.outlet dia	Φ3.5mm	Φ3.0mm	Φ3.2mm	Φ2.6mm	Φ3.0-2.2mm	Φ2.5-2.0mm	Φ1.6mm	Φ1.4mm
Drawing speed	180m/min	180m/min	200m/min	200m/min	250m/min	250m/min	280m/min	280m/min
Inlet wire intensity	≤1150Mpa	≤1150Mpa	≤1150Mpa	≤1150Mpa	≤1150Mpa	≤1150Mpa	≤1150Mpa	≤1150Mpa

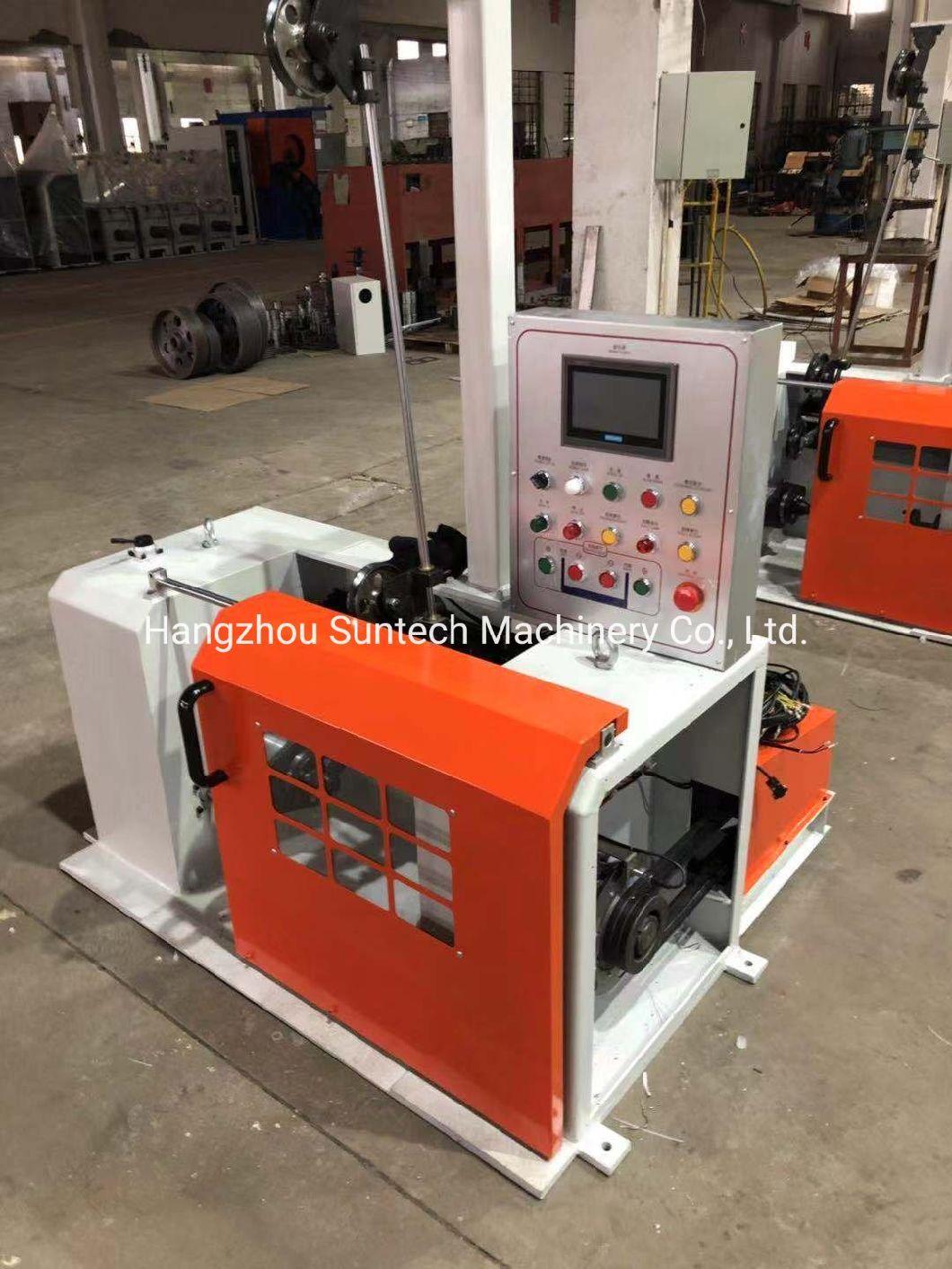

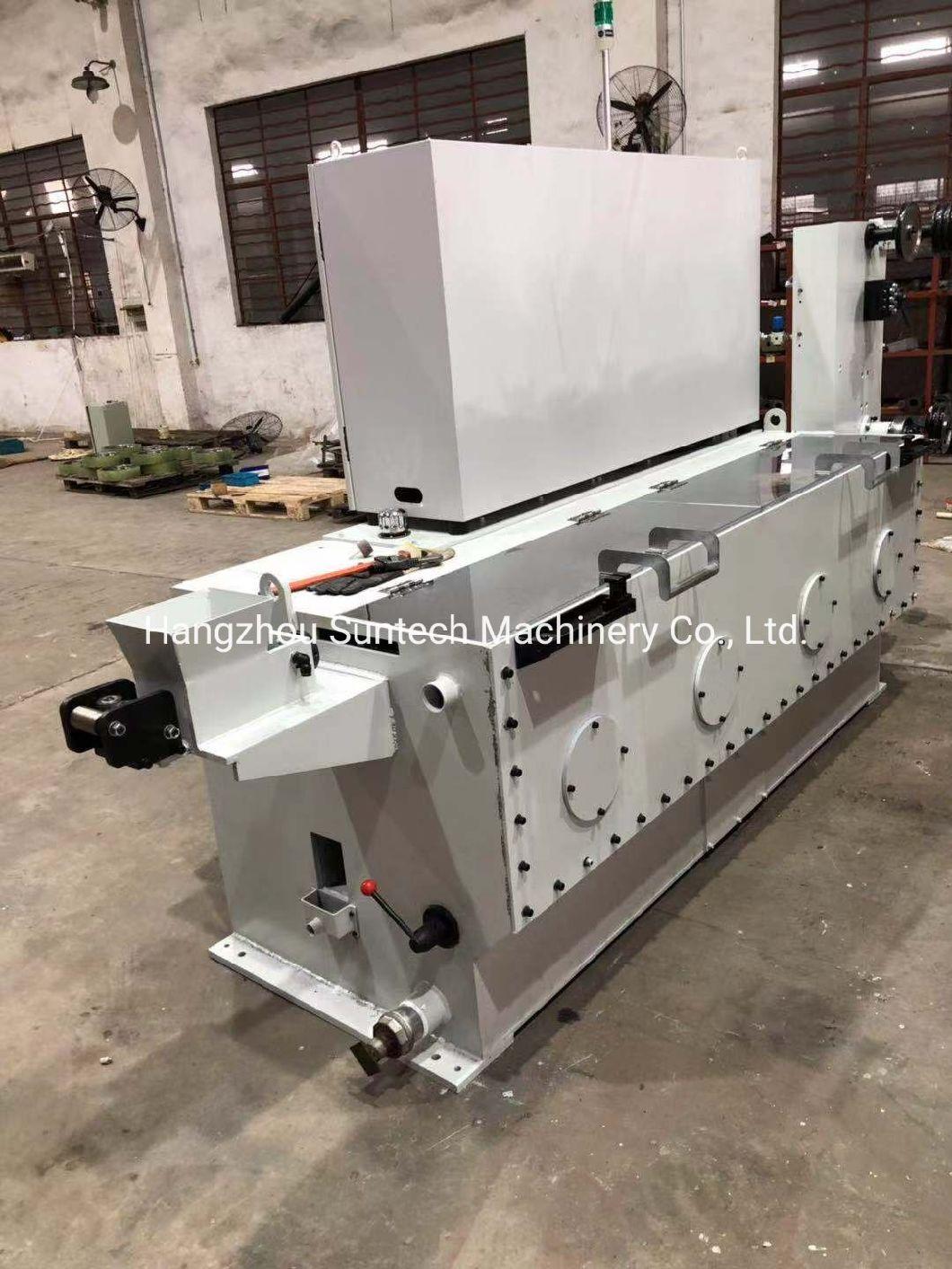

III. Details of machine for reference:

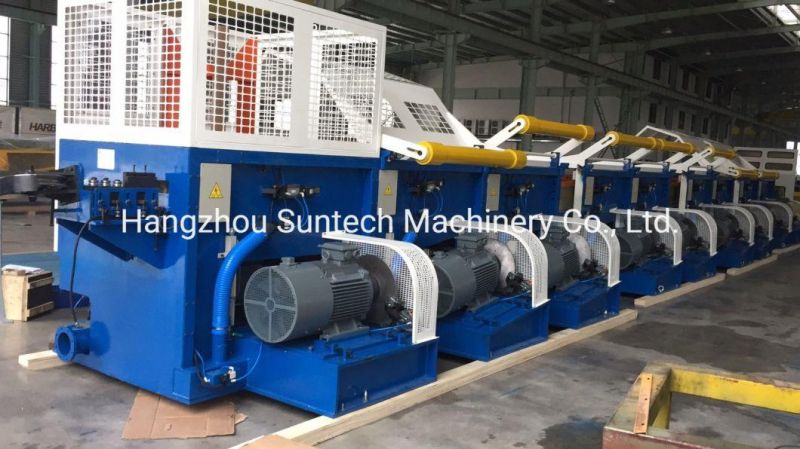

IV. Our Workshop:

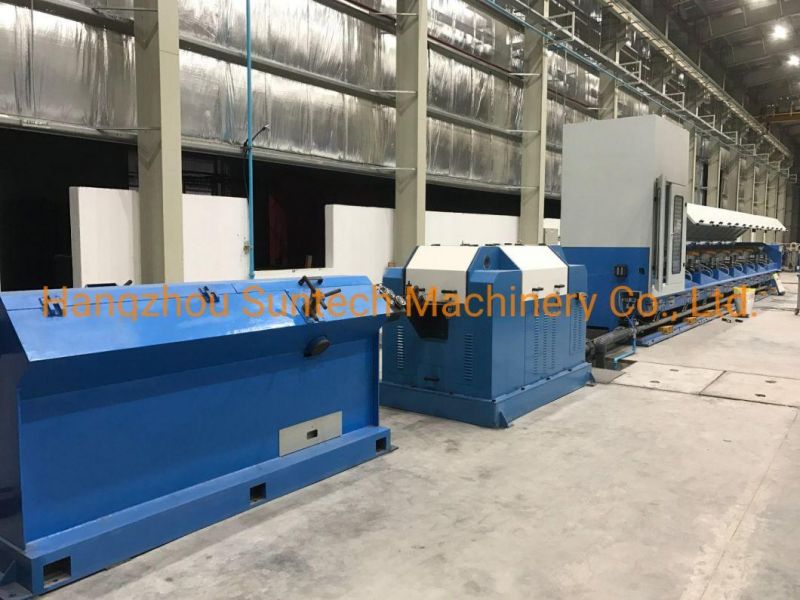

V. Clients worksite for reference:



VI. Clients list for reference:
