China Multi Intermediate Copper Wires Continuous Drawing Machine with Annealer and Dual Take up
Hangzhou Suntech Machinery Co., Ltd.- Type：LT Water Tank Type Metal Drawing Machine
- Usage：Wire, Rope Wire, Prestressed Steel Wire
- Metal Material：Copper
- Outlet Diameter：0.5-4.5mm
- Max.Inlet Wire Dia.：3.6mm
- Block Dia.：450mm
Base Info
- Model NO.：LY-450,13
- Max. Number of Block：21
- Certification：REACH, RoHS, ISO, Ce
- Condition：New
- Transport Package：Seaworthy Packing
- Specification：LY-450,13
- Trademark：SUNTECHMACH
- Origin：China
- HS Code：846330
- Production Capacity：200 Sets,Year
Description
Basic Info.
Model NO. LY-450/13 Max. Number of Block 21 Certification REACH, RoHS, ISO, Ce Condition New Transport Package Seaworthy Packing Specification LY-450/13 Trademark SUNTECHMACH Origin China HS Code 846330 Production Capacity 200 Sets/YearProduct Description
Copper Wire Drawing Machine with Annealer
I. Features of Machine:1) The machine consists of trough for cooling and circulation of drawing emulsion, gearbox, lubrication system, constant speed wheel
2) Drawing dies, round tower full immersed in drawing fluid when work, which can effectively improve the cooling effect and the working life of dies and round tower (drawing tank isolation tank with the gear handle, and do not string oil)

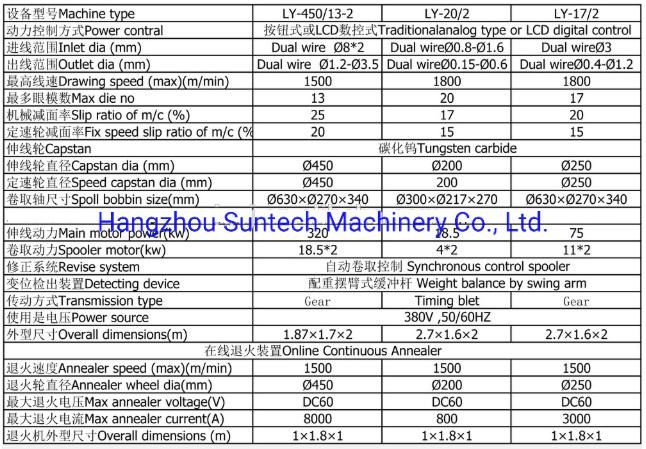

3) Annealing is a two-period process: preheating period and annealing period II. Main Technical Parameters:

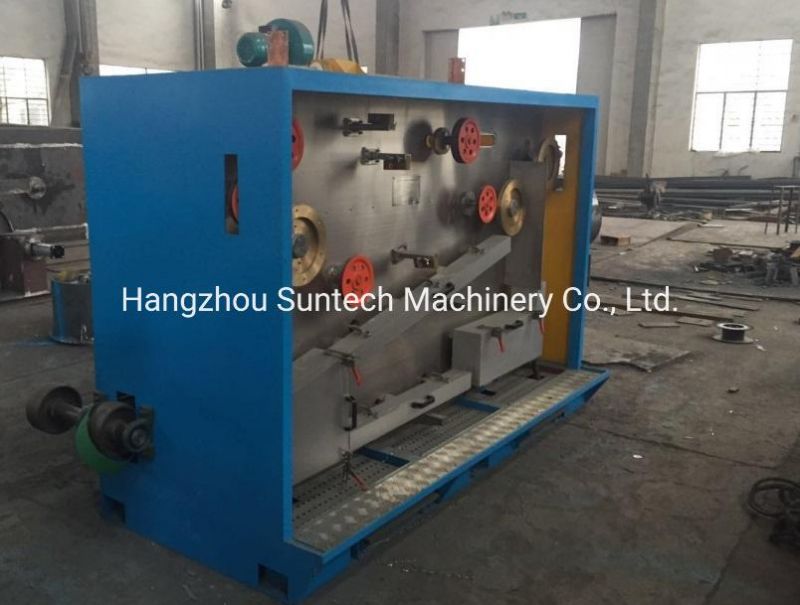

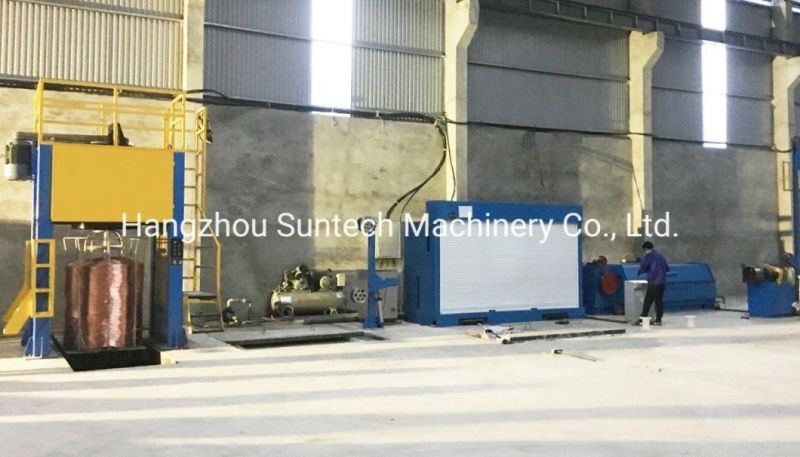

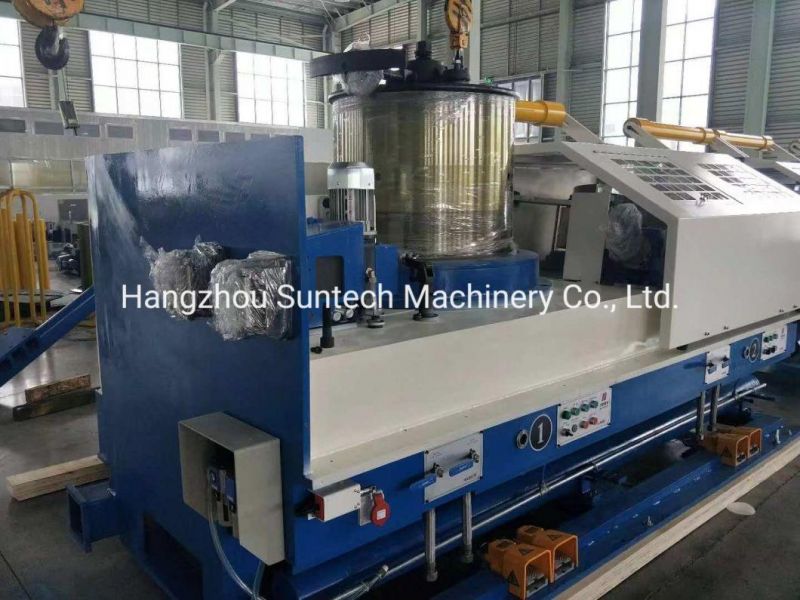

III. Details of machine for reference:

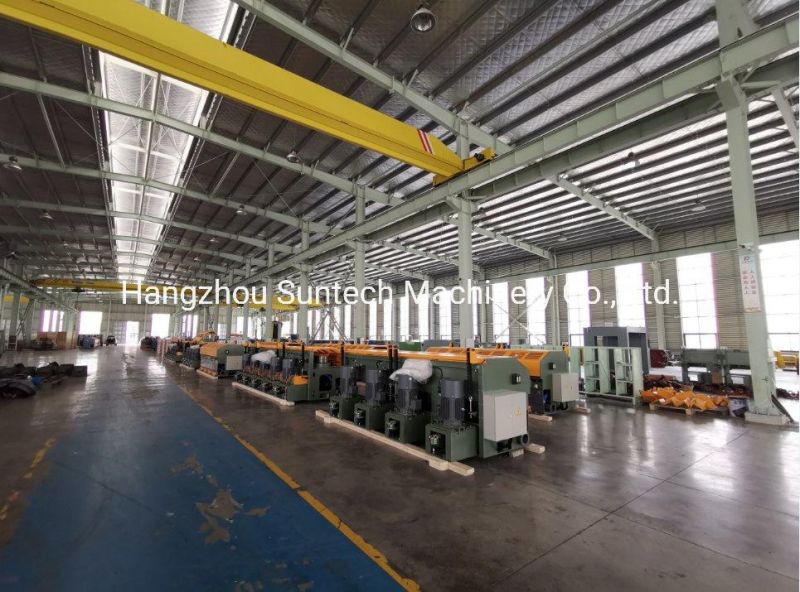

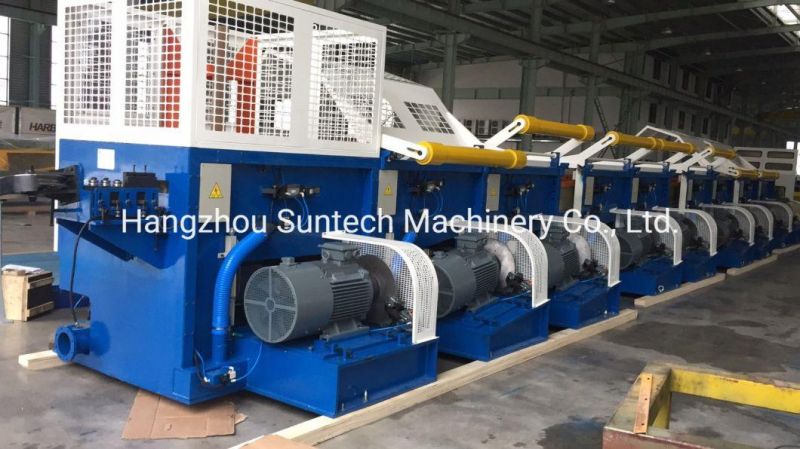

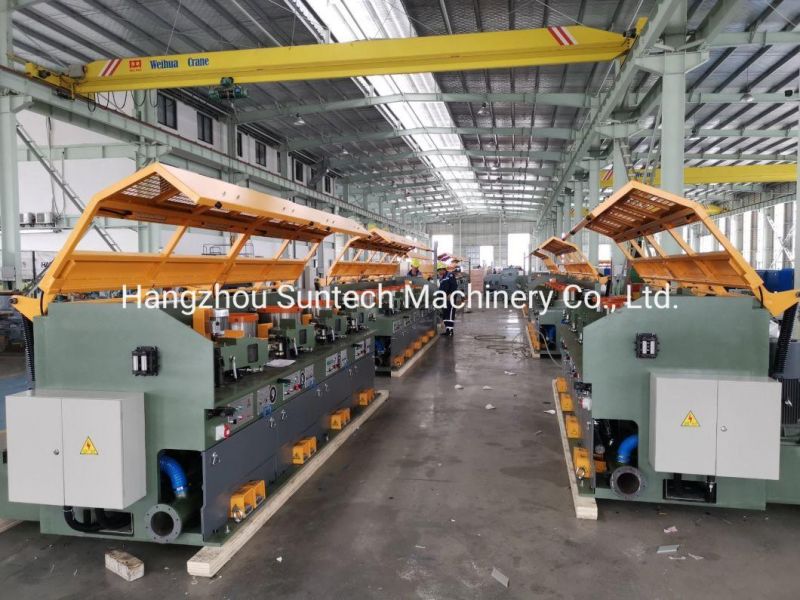

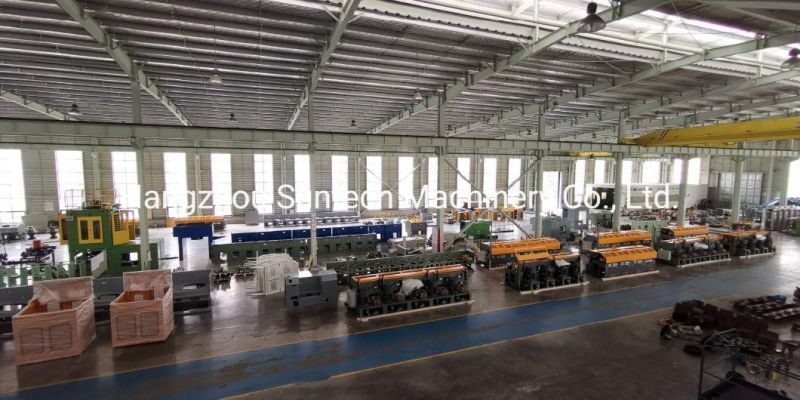

IV. Our Workshop:
VI. Clients list for reference:
