China Wet Type Water Tank Steel Fiber Wire Drawing Machine for Carbon Steel
Hangzhou Suntech Machinery Co., Ltd.- Type：LT Water Tank Type Metal Drawing Machine
- Usage：Wire, Rope Wire, Prestressed Steel Wire
- Metal Material：Steel
- Outlet Diameter：0.1-1.2mm
- Max.Inlet Wire Dia.：2.8mm
- Block Dia.：300mm
Base Info
- Max. Number of Block：21
- Certification：REACH, RoHS, ISO, Ce
- Condition：New
- Transport Package：Seaworthy Packing
- Trademark：SUNTECHMACH
- Origin：China
- HS Code：846330
- Production Capacity：200 Sets,Year
Description
Basic Info.
Max. Number of Block 21 Certification REACH, RoHS, ISO, Ce Condition New Transport Package Seaworthy Packing Trademark SUNTECHMACH Origin China HS Code 846330 Production Capacity 200 Sets/YearProduct Description
Wet/Water Tank Wire Drawing Machine
I. Features of Machine:
1) Transmission system: via strong two-stage narrow V-belt combination special gear box; or via entire gearbox, buyers can choose either of them.
2) Control part: Normal control, frequency control, soft starting control. It's very popular with users because of energy saving, less cost, smaller space area and less workers labor.
II. Main Technical Parameters:
Model | LT9/700-900 | LT11/700-900 | LT7/560-650 | LT9/560-650 | LT11/560-650 | LT13/560-650 | LT15/500-650 | LT17/450-560 |
Capstan diameter | Φ700/900mm | Φ700/900mm | Φ560/650mm | Φ560/650mm | Φ560/650mm | Φ560/650mm | Φ500/650mm | Φ450/560mm |
Drawing dies | 9 | 11 | 7 | 9 | 11 | 13 | 15 | 17 |
Max.inlet dia | Φ8.0mm | Φ8.0mm | Φ6.5mm | Φ6.5mm | Φ8-6.5mm | Φ8-6.5mm | Φ6.5mm | Φ6.5mm |
Min.outlet dia | Φ3.5mm | Φ3.0mm | Φ3.2mm | Φ2.6mm | Φ3.0-2.2mm | Φ2.5-2.0mm | Φ1.6mm | Φ1.4mm |
Drawing speed | 180m/min | 180m/min | 200m/min | 200m/min | 250m/min | 250m/min | 280m/min | 280m/min |
Inlet wire intensity | ≤1150Mpa | ≤1150Mpa | ≤1150Mpa | ≤1150Mpa | ≤1150Mpa | ≤1150Mpa | ≤1150Mpa | ≤1150Mpa |

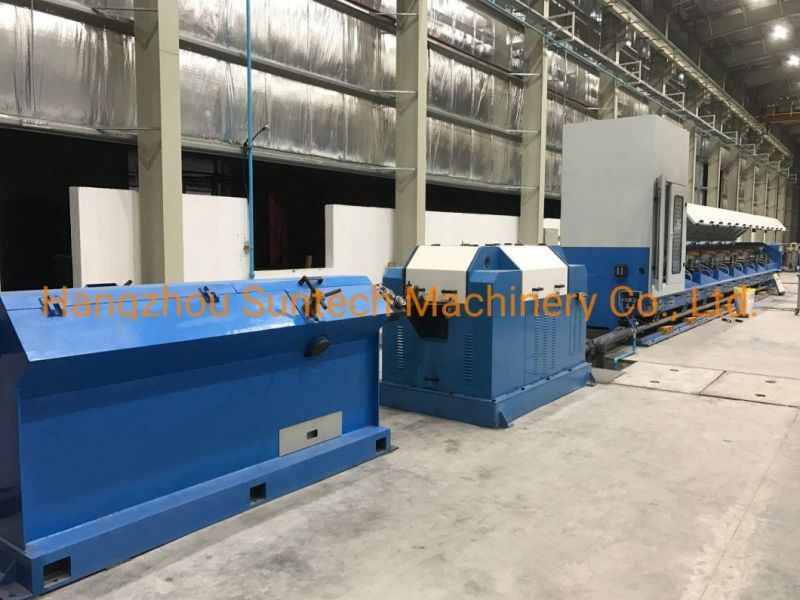

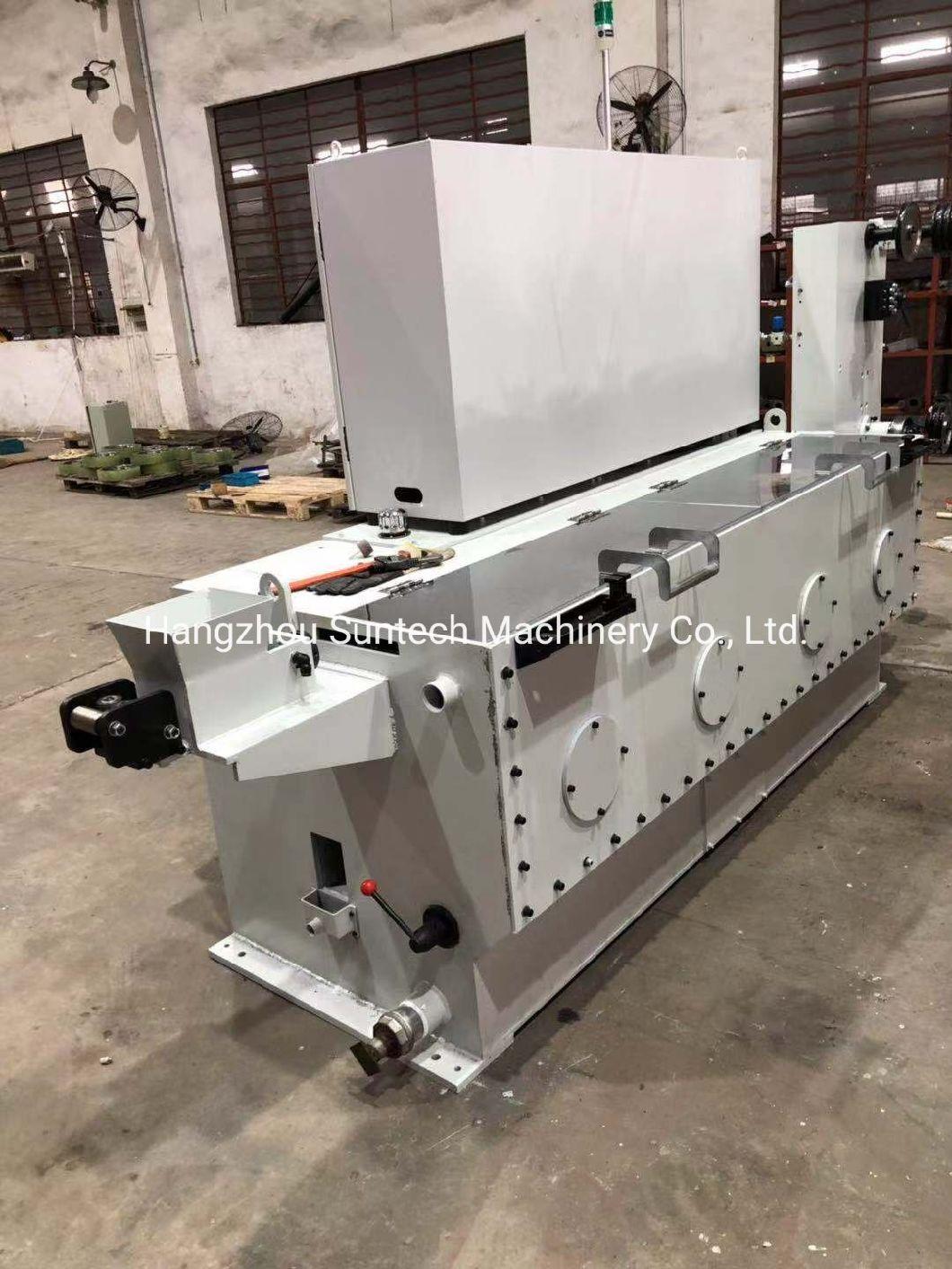

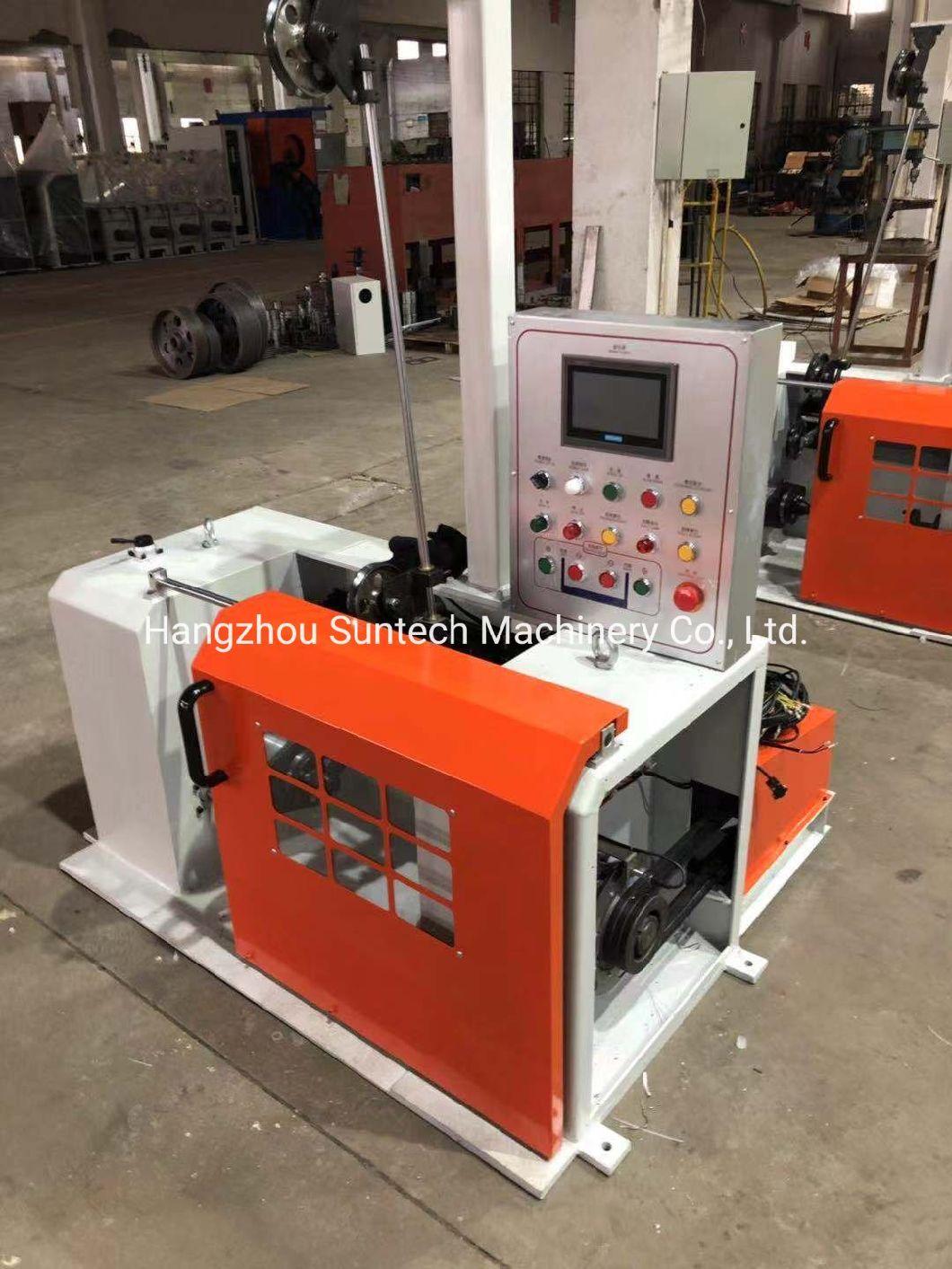

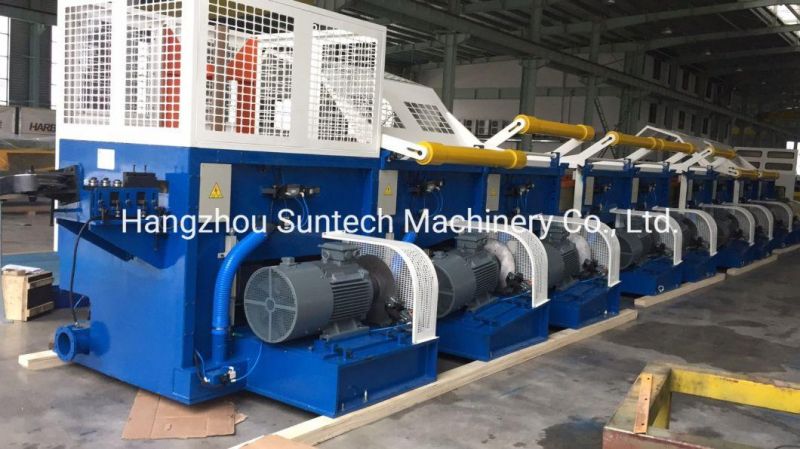

III. Details of machine for reference:
IV. Our Workshop:
V. Clients worksite for reference:
VI. Clients list for reference:
