• Model NO.：Ibr Profile Roll Forming Machine
• Power Source：Hydraulic Pressure
• Feature：High Efficiency
• Certification：CCC, ISO9001, CE
• Warranty：12 Months
• Customized：Customized
• Advantage：Use Widely
• Condition：New
• Name：Ibr Profile Roll Forming Machine
• Material of Frame：300h Steel
• Step of Forming Roller：15steps
• Diameter of Shaft：75mm
• Drive Type of Roll Forming Machine：Drive by Chain
• Power of Main Motor：4kw
• Voltage：380V,60Hz,3phase
• Line Speed：About 12 M,Min
• Motor Power of Hydraulic Station：4kw
• Oil Pump of Hydraulic Station：Gear Oil Pump (High Grade)
• Transport Package：Water-Proof Packaging, Covered with Plastic Film
• Specification：DX 1000
• Trademark：DX
• Origin：Botou Hebei China
• HS Code：845522
• Production Capacity：20 Set Per Month

 Name

 Double Layer IBR Metal Roof Deck Roll Forming Machine

 Suitable Material

 Colored or galvanized steel coil, HRB60 or equivalent

 Thickness Range

 0.3-0.8 mm

 Coil Width Range

 1220mm

 According to your actual drawing.

 Electric Power

 220V, 50 Hz, 3 phase

 or according to your need.

 Dimension

 About 7.2*1.3*1.1m(L*W*H), as per the drawing

 Cutting

 Automatically stop and cutting when it comes to the set length.

 Length of the Sheet

 You can set the length according to your need.

 It is controlled by PLC

 length accuracy: ±1mm.

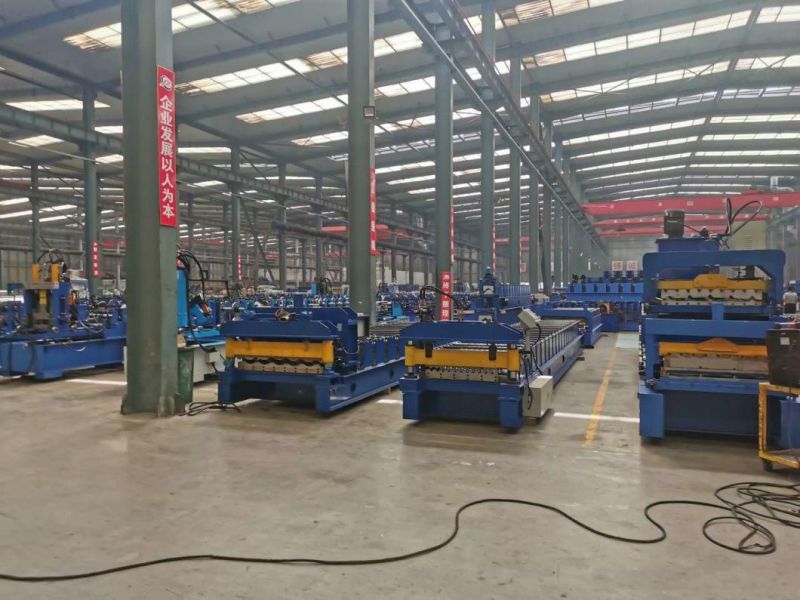

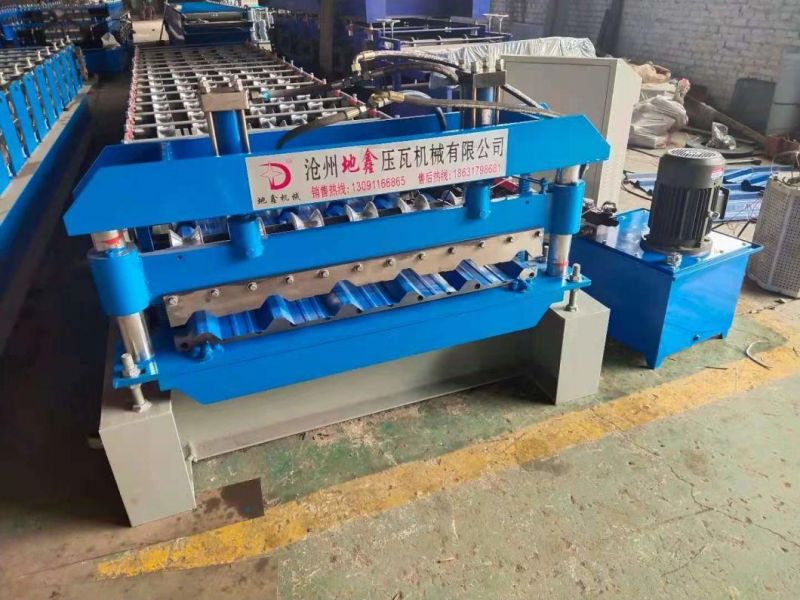

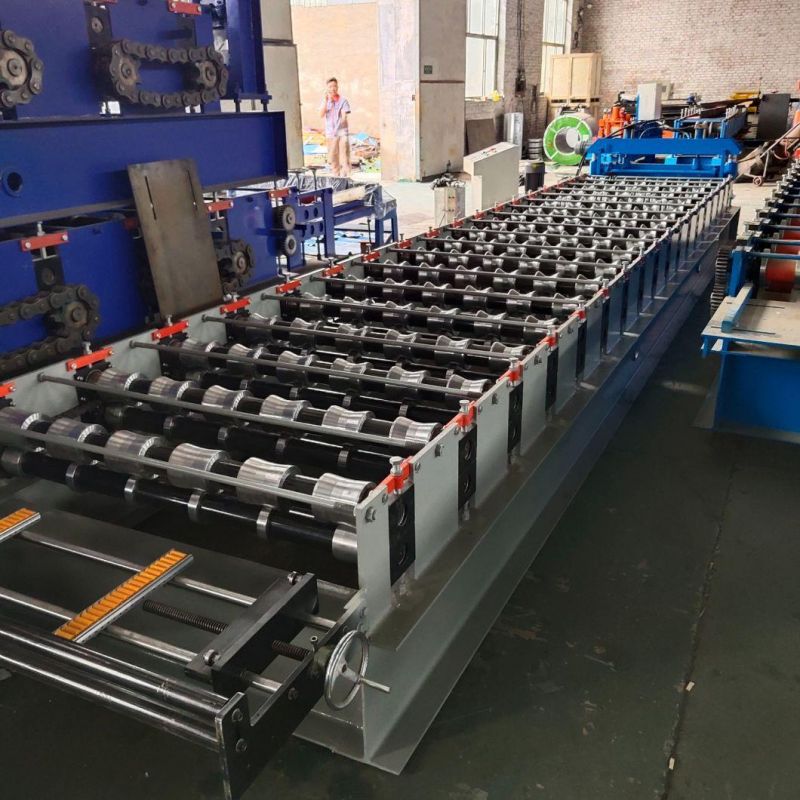

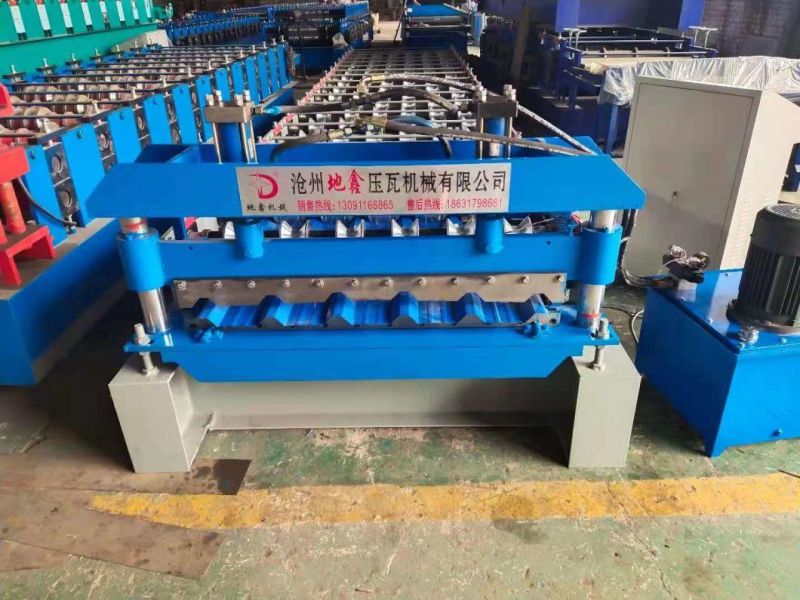

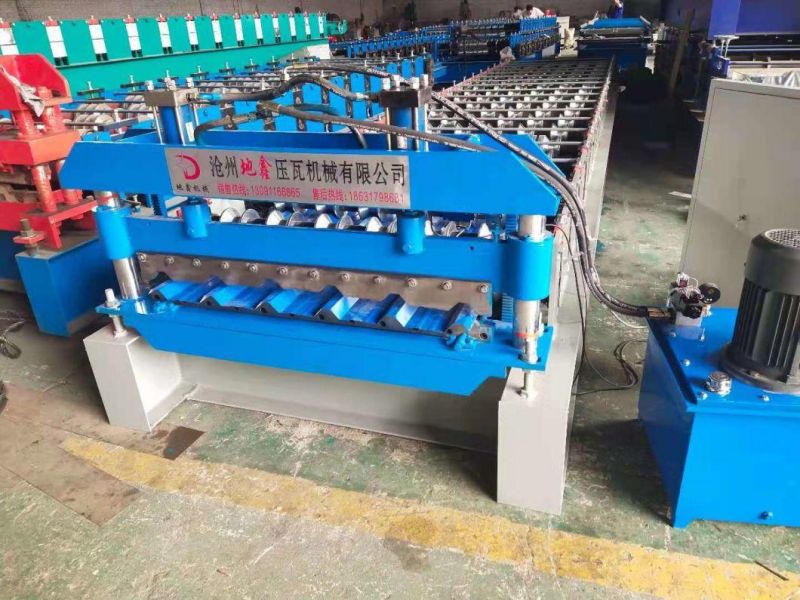

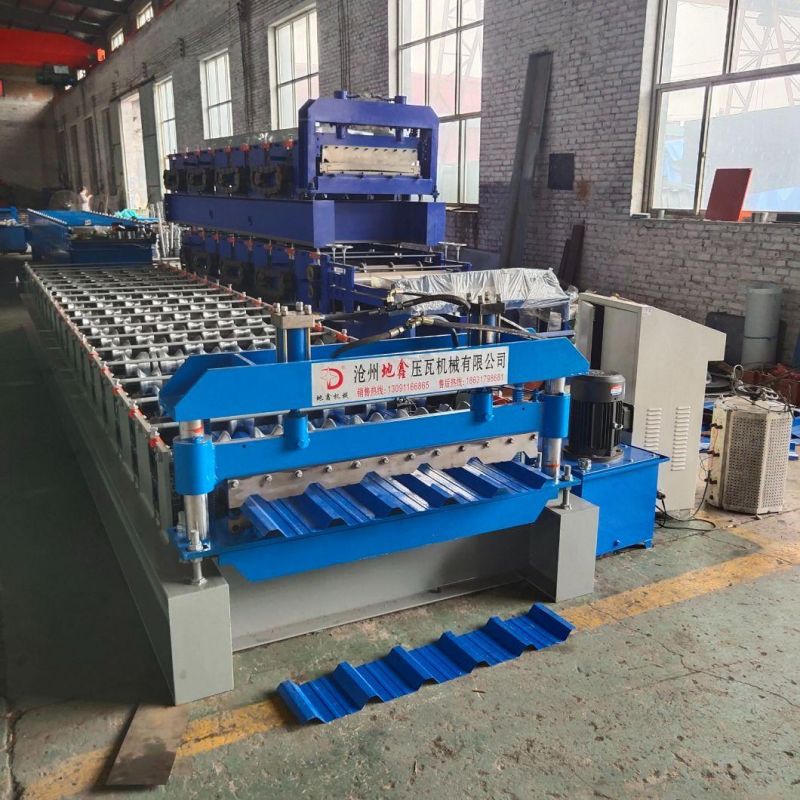

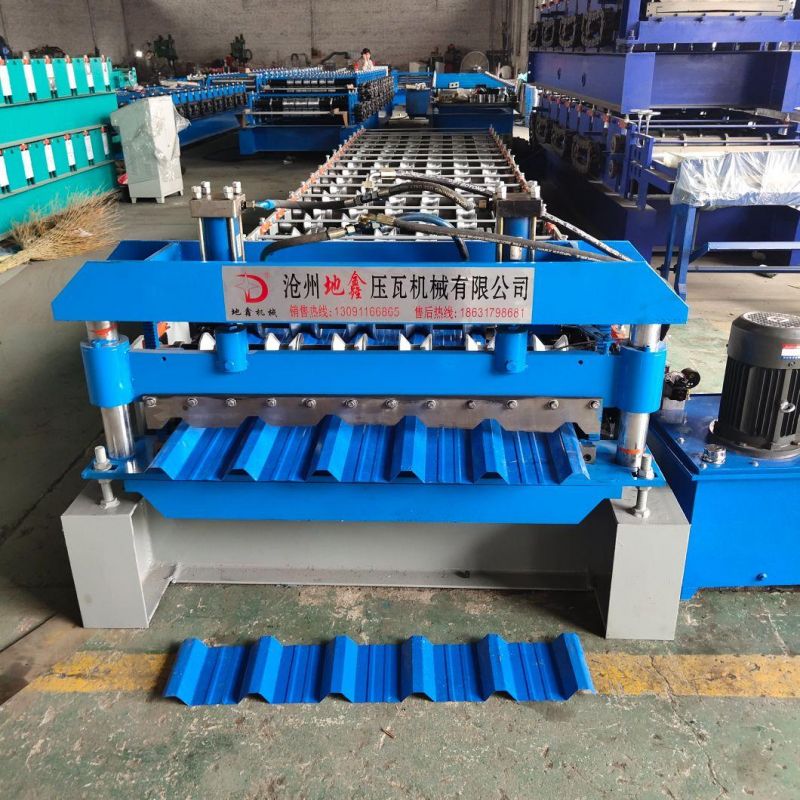

3.Photo of Machine for your reference




4.COMPANY INTRODUCE:
Our enterprise, Cangzhou Dixin Roll Forming Machine Co., Ltd, as the professional and leading manufacturer, can manufacture, design, installation and debug various roll forming machines and metal processing sheet equipments, which produce metal roof wall panel, glazed roof tile, CZ steel purlin, floor decking, roof ridge cap, sandwich panel, roof truss, shutter panel, shutter slat, door frame, guardrail, and metal sheet uncoiler, bending, slitting, cutting, flattening, punching, crimping.

Backed by reasonable design, precision machining and selected material, both our standard and customized machines are characterized by long life span, precise forming and easy operation. With our customers' trust, our machines have been sent to America, Australia, Russia, India, Sri Lanka, Nigeria, Pakistan, Uzbekistan, Mozambique, Angola, Turkey, Brazil, etc.

Warmly welcome to China to visit our factory and select the machines you need. Our address, Fuzhuang Industrial Development Zone, Botou City, Hebei Province, China


OUR SERVICE:
We can design and manufacture the special type machine according the customers' requirement and we could provide technical guiding, production, installation, debugging and maintenance service to all customers.
We provide a one year warranty and lifelong technical support will be provided
We can send our technicians to you to give you on-site training. The training period would be for no more than one week with the customer paying for the visa, return ticket, food, accommodations and a daily wage of US50.

Some FAQ

1.Q: How can I contact you?

A: You can talk to me anytime. Or send me enquiry email, I will reply you in 24 hours and offer the optimum solution to you.

2. Do you have after sales support?

A:Yes, we are happy to give advice and we also have skilled technicians available across the world.We need your machines running in order to keep your business running.

3.Q: How to visit our company?

A: 1.Fly to Beijing airport: By high speed train From Beijing Nan to Cangzhou Xi (1 hour),then we can pick up you.

2.Fly to Shanghai Airport: By high speed train From Shanghai Hongqiao to Cangzhou Xi(4.5 hours),then we can pick up you.

4.Q: How many years since you have been in this field?

A: Our company has been producing roll forming machines for almost 20years.We have rich experience for manufacturing and designing the machine.

5.Q. What can you do if the machine broken?

A:Our machine's warranty period is 12months, if the broken parts can't repair,we can send the new parts replace the broken parts freell,but you need pay the express cost yourself. if after warranty period,we can through negotiationfor to solve the problems,and we supply the technical support for the whole life of the equipment.

6.Q:How long the machine could be made?

A:Normally speaking, machine could be made within 30 working days. If you need machines in a hurry, we can make it for you less than a month.

6.Q:If our country's voltage is different from yours, how to solve that?

A:The usual voltage is 380v,220v,415v. If yours are not one of them, we will design the electric motor to suit your voltage.
