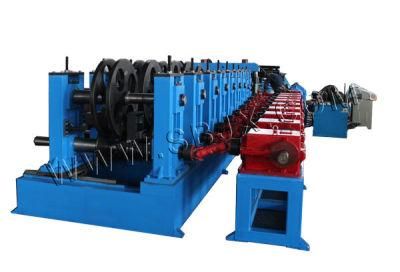

Adjustable Gutter Roll Forming Machine by Gear Box

Zhangjiagang City Saibo Science & Technology Co., Ltd.
  • Type：Rolling Machine
  • Forging Forming Method：Mold Forging
  • Power Source：Hydraulic Pressure
  • Feature：High Efficiency
  • Certification：ISO9001, CE
  • Warranty：12 Months

Base Info

  • Model NO.：Rolling Machine
  • Customized：Customized
  • Advantage：Use Widely
  • Condition：New
  • Color：Blue
  • Drive Way：by Gear Box
  • Transport Package：Suitable for Sea Packing
  • Specification：CE, SGS
  • Trademark：SAIBO
  • Origin：Jiangsu, China
  • HS Code：84552210
  • Production Capacity：300sets,Year

Description

Item NO
Description
Offered specification1Roll Forming MachineGutter
 2Coil widthAdjustable3Rolling Speed12-15m/min(not include cutting time)4Rolling Thickness2.0-5.0mm GI5Control SystemPLC  (Panasonic) as list in the note6Un Coiler5T hydraulic decoiler7LevelingThree rollers over four8Roller StationsAbout 9 stations (according the final design)9Roller MaterialGcr15, coated with chrome10Shaft Material and DIA¢100mm, material is 45# forge steel11Post cuttingHydraulic cutting after forming13Maim Motor Power22kw14Hydraulic Station Power7.5kw with fen cooling15Hydraulic Pressure16-20Mpa adjustable16Material Of CuttingCr12Mov quenching 58-62ºC17Structure Of The StationsCast iron18Tolerance3m+-1.5mm19Electric Source380V, 50HZ,3 phase
According to customer's require
 20Way Of DriveBy gearbox21Color Of The MachineYellow and blue22Size of the machineL*W*H   about 10m*1m*1.2m23Container Need1x40 feet + 1x20 feet
4. Packing & Delivery
Deliver time: take goods after receive deposit 60 days
Packing: suitable of ocean transportation

5. Warranty
Warranty: 1 year warranty from date of shipment
Guarantee:
1: Guaranteed against malfunctions due to manufacturing defects for 1 year after date of shipment. Repairs will be made free of charge.
2: Repairs will not be performed free of change even during the guarantee period in the follow circumstances
-  Damage occurs due to a natural disaster
-  Malfunction occurs due to user error
-  Malfunction occurs due to modifications
-  Malfunction occurs due to further movement or shipment after installation
3:Air ticket, transportation cost, hotel, meals and 100$ per day shall be for purchaser's account if manufacturer's engineer has to be send to purchaser's factory to maintain the machine during the guarantee period.

6. Payment Term
   30% deposit by T/T in advance and 70% balance after inspection confirmation before shipment Delivery1. Sea shipping.2. Air shipping for sampling.3. Train shipping for landlocked countries serviced by CRExpress Europeblock train ferry.
Adjustable Gutter Roll Forming Machine by Gear Box
About Saibo
Adjustable Gutter Roll Forming Machine by Gear Box
Saibo Science & Technology - 20 Years Experience Manufacturer in Developing and Exporting.Zhangjiagang City Saibo Science & Technology Co., Ltd. is a professional manufacturer specializing in the developing and exporting of different kind of high speed roll forming machine, Main use of our roll forming machine is for Solar Structures, PEB project and also for Cable tray, Guard Rail, Roofing Sheets, Floor Decking and all of the different kind purlin/channel which makes from GI/PPGI/PPGL/Aluminium/Aluminium alloy/SS . Our company, which is located in Zhangjiagang city, Jiangsu province, near Shanghai City with superior geographic position and convenient transportation.
Adjustable Gutter Roll Forming Machine by Gear Box

We engaged in the steel structure industry in 20 years and devoted to developing some steel structure machines with professional technology and reasonable price, we supply the best machines for our new and regular customers. All of our technology team and marketing person all more than 10 years working. In particular, we are a leading exporter in the field of steel structure construction and can provide professional service, high quality,  through design, and installation. Our goal is" future by heartiness, faith leads to the world".
Adjustable Gutter Roll Forming Machine by Gear Box

International certification, National Certificate of equipment verification, and more than 30 invention patents are done in Saibo Machinery.

Verification Certificates of equipments: ISO9001:2001; CE Certificate , SGS , COC , TUV

National Certificate of equipment verification:standard organisation of Nigeria , CNCA certificate, Logo trademark registration, etc.
