Gbm-12D Mobile Auto Walking Metal Edge Beveling Cutting Machine
Shanghai Taole Machine Co., Ltd.- After-sales Service：1 Year Guarantee and Life Long Service
- Warranty：1 -2 Years
- Type：Plate Beveling Machine
- Style：Mobile
- Layout：Vertical
- Automatic Grade：Semi-Automatic
Base Info
- Model NO.：GBM-12D
- Power Source：Electric
- Certification：CE, ISO
- Bevel Angle：25-45 Degree Adjustable
- Thickness：6-30mm
- Feed Speed：1.5-2.6 Meter,Min
- Total Power：380V 50Hz 750W
- Single Bevel Width：0-12mm
- Worktable Height：700mm
- Machine Weight：155 Kgs
- Transport Package：Wooden Case
- Specification：640*850*1160mm
- Trademark：TAOLE
- Origin：Shanghai, China
- HS Code：846090
- Production Capacity：80 Set ,Month
Description
GBM-12D beveling machine with below advantages:
1. Imported Reducer and motor for higher efficiency and engengy saving but ligher weight

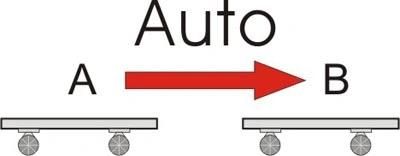

2. Walking wheel and plate thickness clamping leads machine auto walking along with plate edge

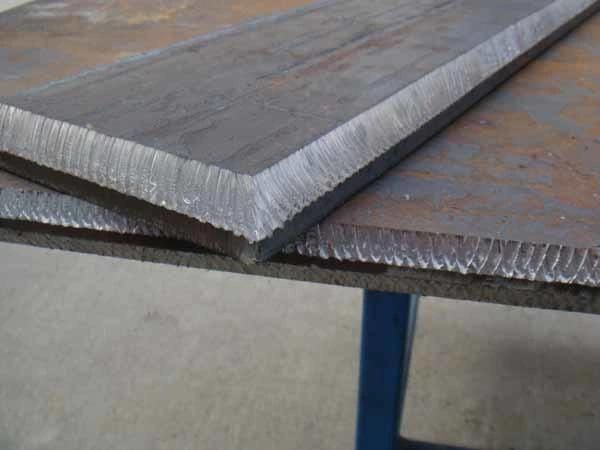

3. Cold bevel cutting with no oxidation on the surface could direct welding

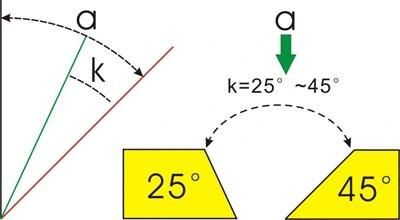

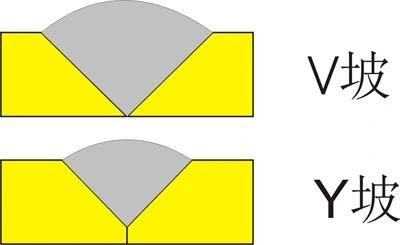

4. Bevel angel 25-45 degree easy adjustment
5. Machine comes with shock obsorption walking
6. Single bevel width could be 0-12mm, max bevel width upto 18mm
7. Could process plate thickness 6-30mm on both small or large metal size.
8. Speed upto 2.6mm/min
9. China design and manufacture with most cost saving
10. Low noise, no scrap iron splash, more safe.
