• Model NO.：Filter booth
• Transport Package：Wooden Case
• Specification：Closed powder booth
• Trademark：COLO
• Origin：China
• Production Capacity：500sets,Month

Basic Info.

Model NO. Filter booth Transport Package Wooden Case Specification Closed powder booth Trademark COLO Origin China Production Capacity 500sets/Month

Product Description

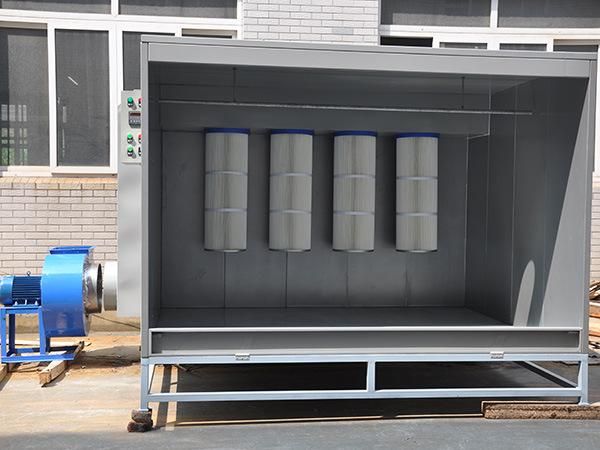

Manual Cartridge Filter Powder Coating Paint Booth

The Cartridge coating booth is a manual electrostatic spray booth,it can spray all kinds of workpiece,as long as the size of the curing oven is reasonable.It is convenient to maintenance,the maintenance cost is low.With less floor space,it can applied to small batch manufacturing and mass production.However,when the manual electrostatic spray booth processes the same size of the workpieces in large quantitie,it needs more labour between each step,it couldno increase the output significantly or reduce labor costs greatly.

Our paint booth can be customized according to customer's requrements.
 Excellent Features
1. Simple and economic solution for metal powder coating application in small production2. Compact Modular design, easy to intergrated every time.3. Convenient to use with manual powder coating machine and curing oven.4.The filter recovery system prevents accumulation of the powder and makes it very easy for cleaning and fast  color change.
5.With light system

Specifications

Model	Colo-2315
Power Supply	AC 380V (can be customized)
Frequency	50-60 HZ
Power Consumption	4KW
Air Comsumption	6677-13353m3/h
Filters	Polyester
Filter Count	4(325*900mm)
Filter Cleaning System	pneumatic
Machine Weight	450kg
Operation Szie	Width2300*Depth1500*Height1500mm
Overall Size	Width2750*Depth2070*Height2180mm

Other Advantages
1.Easy to operate with the control panel,easy to clean.
2.Superior construction: booth is constructed by nut-bolt.

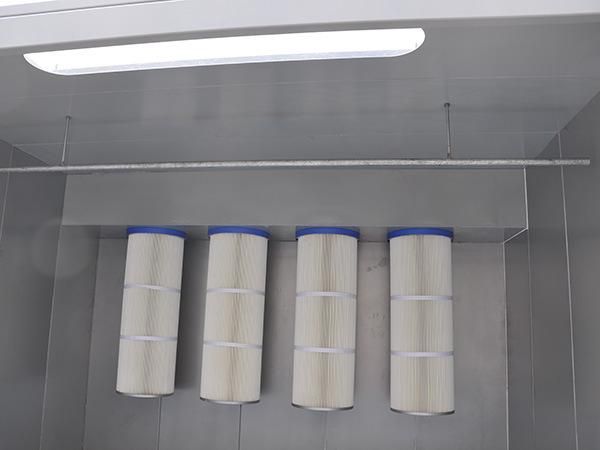

3.Powder recovery through the Cartridge filters.
4.Powder booths are modular construction with Powder coated steel, Galvanized steel or stainless steel construction.
5.Hundreds of installations worldwide.
6.Simple maintenance.
7.Complies with current health and safety legislation.

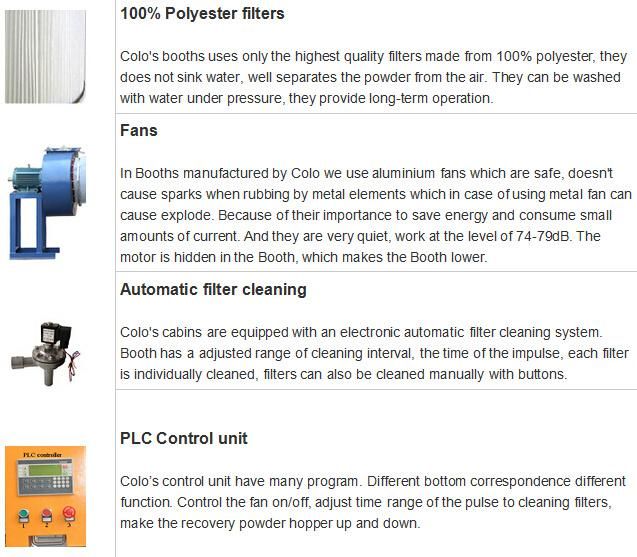

Components

Packing&Delivery

Delivery:2 weeks.
Packaing: wooden case or Plastic bag with Pearl cotton
Trade terms:FOB,CIF,CFR,EXW,etc
Payment terms:T/T
Payment condition:100% Payment
MOQ:1set
Loading port: Shanghai port or Ningbo port

About Us
COLO manufacture a complete range of uniquely designed modular Powder Coating Booth and systems for both manual and fully automatic coating applications. We have several years experience in the design, manufacture, installation, commissioning and service support of powder coating systems and equipment. We have various Powder Coating Booths models along with wide range of Powder Coating Ovens.
We own advaced machines to produce the machines.
