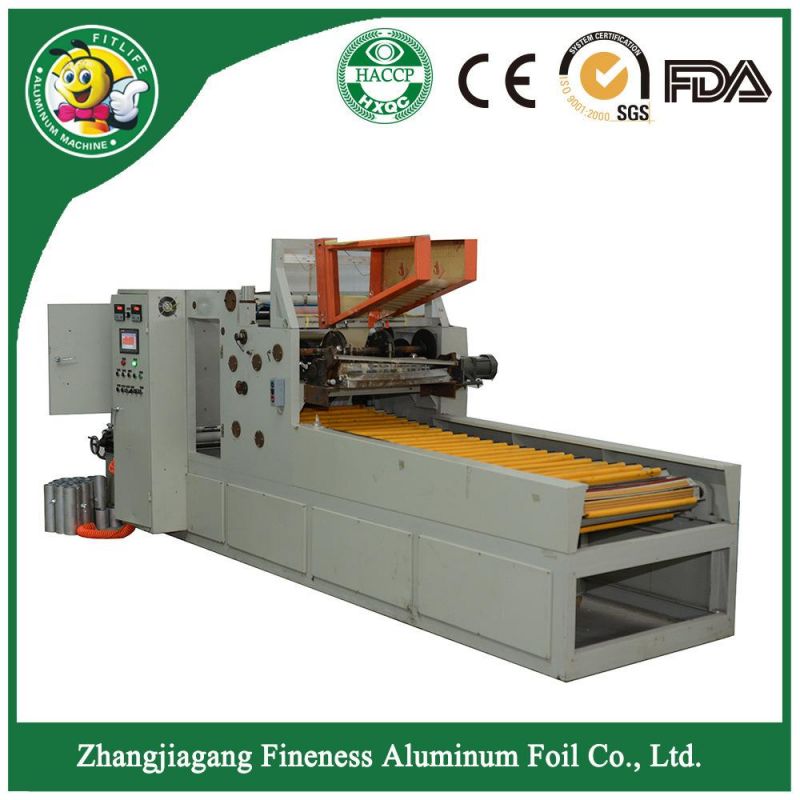

Semi-Automatic Aluminum Foil Rewinder and Cutting Machine

Zhangjiagang Fineness Aluminum Foil Co., Ltd.
  • Control Type：PLC
  • Customized：Customized
  • Condition：New
  • Automatic Grade：Automatic
  • Certification：CE, ISO9001
  • Item Name：Semi-Automatic Aluminum Foil Rewinder and Cutting

Base Info

  • Model NO.：HAFA550
  • Rewinding Machinery：Cutting and Packaging
  • Transport Package：Wood Case
  • Specification：4.1x1.6x1.8m
  • Trademark：Fineness,OEM
  • Origin：Zhangjiagang
  • HS Code：8441801000
  • Production Capacity：15sets,Month

Description

Basic Info.

Model NO. HAFA550 Rewinding Machinery Cutting and Packaging Transport Package Wood Case Specification 4.1x1.6x1.8m Trademark Fineness/OEM Origin Zhangjiagang HS Code 8441801000 Production Capacity 15sets/Month

Product Description

Our machines are controled by computer. And our machine is automatic.
This product mainly be used for the aluminum foil cutting and wrapping
1) Material thickness: 9mic-20mic
2) Material width: 250mm-500mm
3) Max O. D of roll: 60mm
4) Material roll core I. D: 75mm(optional)
5) Finished product core I. D: 24mm, 30mm and 38mm
6) Length of production: 3m-300m
7) Production efficiency: 150m/minute
8) Open-roll middle stroke: ± 20mm
9) Pressure: 0.5Mpa

Semi-Automatic Aluminum Foil Rewinder and Cutting Machine
10) Power mold:
Traction motor: Y100L-4, Asynchronous motor: 2.2KW
Aquirrel-cage motor: P60B 8200, Servo motor: 1.5KW
Rotating motor: 100YCJ120-3AP, Speed reduction motor: 120W
11) Magnetic powder brake: 25N. M BFDZ(K)-25
12) Magnetic particle clutch: 12N. M ZKB-1.2BN
13) Overall dimension: Length: 3980mm, width: 1360mm, height: 1910mm
14) Power of complete equipment: 4.5 KW
15) Weight of complete equipment: 1450 KG
This product mainly be used for the aluminum foil cutting and wrapping
1) Material thickness: 9mic-20mic
2) Material width: 250mm-500mm
3) Max O. D of roll: 60mm
4) Material roll core I. D: 75mm(optional)
5) Finished product core I. D: 24mm, 30mm and 38mm
6) Length of production: 3m-300m
7) Production efficiency: 150m/minute
8) Open-roll middle stroke: ± 20mm
9) Pressure: 0.5Mpa
10) Power mold:
Traction motor: Y100L-4, Asynchronous motor: 2.2KW
Aquirrel-cage motor: P60B 8200, Servo motor: 1.5KW
Rotating motor: 100YCJ120-3AP, Speed reduction motor: 120W
11) Magnetic powder brake: 25N. M BFDZ(K)-25
12) Magnetic particle clutch: 12N. M ZKB-1.2BN
13) Overall dimension: Length: 3980mm, width: 1360mm, height: 1910mm
14) Power of complete equipment: 4.5 KW
15) Weight of complete equipment: 1450 KG
