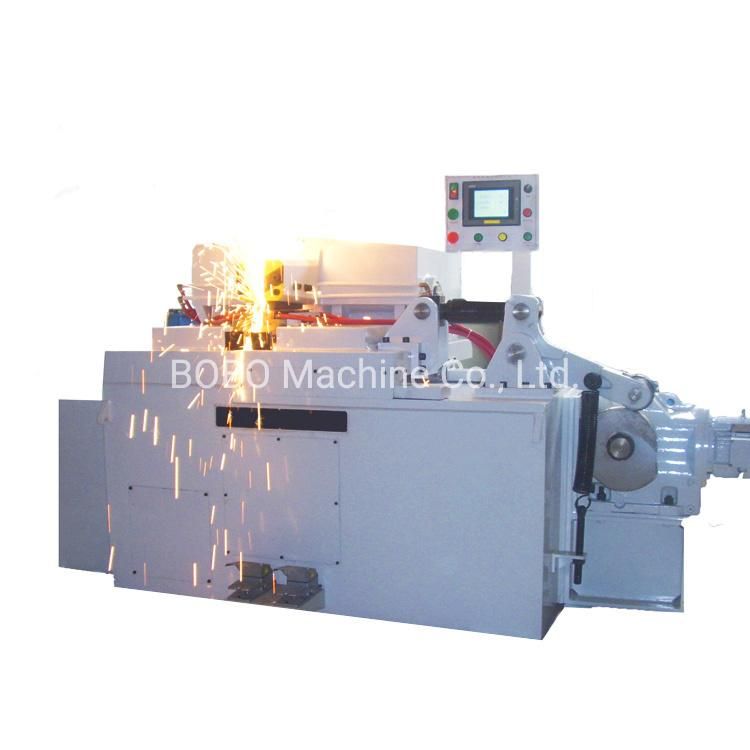

Vehicle Wheel Rim Flash Butt Welding Machine (UN-1200KVA)
BOBO Machine Co., Ltd.- Control Type:PLC
- Customized:Customized
- Condition:New
- Automatic Grade:Automatic
- Certification:CE, ISO9001
- Type:Special Casting
Base Info
- Model NO.:UN-1200KVA
- Rated Capacity:1200kVA
- Primary Supply:380V , 50Hz,1phase
- Welding Section:5000mm2
- Welding Width Max:520mm
- Welding Thickness Max.:8mm
- Duty Cycle:50%
- Cooling Water Pressure:≥ 0.2MPa
- Cooling Water Temperature:< 25° C
- Cooling Water Consumption:≥ 3000L,H
- Productivity:400-600 Pieces,Shift
- Transport Package:Wooden Package
- Specification:GB
- Trademark:BOBO
- Origin:China
- HS Code:8455229090
- Production Capacity:4sets,Year
Description
Basic Info.
Model NO. UN-1200KVA Rated Capacity 1200kVA Primary Supply 380V / 50Hz/1phase Welding Section 5000mm2 Welding Width Max 520mm Welding Thickness Max. 8mm Duty Cycle 50% Cooling Water Pressure ≥ 0.2MPa Cooling Water Temperature < 25° C Cooling Water Consumption ≥ 3000L/H Productivity 400-600 Pieces/Shift Transport Package Wooden Package Specification GB Trademark BOBO Origin China HS Code 8455229090 Production Capacity 4sets/YearProduct Description
1- Hydraulic driven, not the CAM.2- Professional transformer with 60% duty cycle
3- Max. Capacity 1250kVA
4- Up to 38" wheel
Main technical data
UN-1200kVA hydraulic flash butt welding machine is suitable for 22-32" wheel rim.
This hydraulic type butt welding machine. The work piece will be clamped by clamp tools in hydraulic
Rated capacity 1200kVA
Primary supply 380V / 50Hz/1phase
Welding section 5000mm2
Welding width Max. 520mm
Welding thickness Max. 8mm
Adjusting series of primary supply 8 grade (7-14V)
Duty cycle 50%
Cooling water pressure ≥ 0.2Mpa
Cooling water temperature < 25° C
Cooling water consumption ≥ 3000L/h
Air pressure ≥ 0.4Mpa
Productivity 400-600 pieces/shift
For car, tractor wheel welding purpose, up to 32" steel wheel.
