• Model NO.：YX19-76.2-762,838
• Customized：Customized
• Advantage：Easy to Maintenance
• Condition：New
• Size：Yx19-76.2-762,838
• Dimension：6000*1500*1500mm
• Effective Width：762,838mm
• Material Width：914,1000mm
• Thickness：0.4-0.6mm
• Height of Roofing：19
• Forming Steps：16
• Hydraulic Motor Power：2.2kw
• Motor Power：5.5kw
• Working Speed：8-12m,Min
• Transport Package：Standard Package of Export
• Trademark：XHH
• Origin：Xiamen Port of China
• HS Code：84552290
• Production Capacity：15-20stes,Mon

Basic Info.

Model NO. YX19-76.2-762/838 Customized Customized Advantage Easy to Maintenance Condition New Size Yx19-76.2-762/838 Dimension 6000*1500*1500mm Effective Width 762/838mm Material Width 914/1000mm Thickness 0.4-0.6mm Height of Roofing 19 Forming Steps 16 Hydraulic Motor Power 2.2kw Motor Power 5.5kw Working Speed 8-12m/Min Transport Package Standard Package of Export Trademark XHH Origin Xiamen Port of China HS Code 84552290 Production Capacity 15-20stes/Mon

Product Description

Detail information of YX19-76.2-762/838 Steel Corrugate Roofing Making Machine are as following:

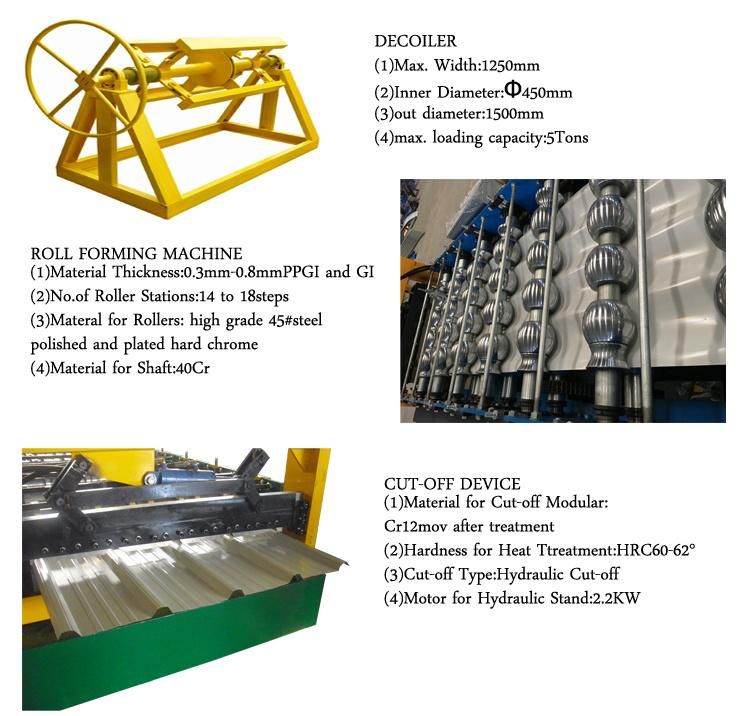

Main Accessories:
(1) Main Forming Machine for corrugate roofing;
(2) 5 Tons Manual Uncoiler;
(3) Manual Pre-cutter;
(4) Hydraulic System;

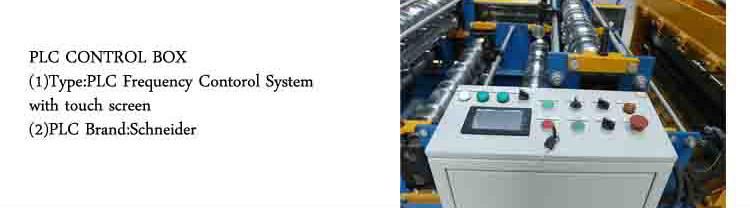

(5) PLC Computer Controlling System With Touch Screen
(Brand: Delta or Schneider, or Siemens, choose any one)
(6) Hydraulic Forming Cutter;
(7) Run Out Table(3 PCS);
(8) Tools;
(9) Operation Manual.

Dimension	6000*1500*1500mm
Weight	4000KGS
Hydraulic Motor Power	2.2KW
Motor Power	5.5KW
Forming Steps	16steps
Processing Speed	8-12m/min
Voltage	380V/50HZ/3PH
Height of Roofing	19mm
Effective Width	762/838mm
Feeding Material Width	914/1000mm
Thickness	0.4-0.6
Material of principal axis	high grade 45# forged steel
Material of roller	45#steel with hard chrome plating
Material of blade	Cr12 mould steel with quenched treatment 60-62°C
Material for frame of machine	Fine welded structural steel
