Metal Roof Steel Sheet Cold Forming Machine with Standing Seam
Xiamen Xinhonghua Machinery Co., Ltd.- Type：Hydraulic Machine
- Forging Forming Method：Tire Mold Forging
- Power Source：Hydraulic Pressure
- Feature：Automation
- Certification：SGS
- Warranty：12 Months
Base Info
- Model NO.：KLS25-220-530
- Customized：Customized
- Advantage：Easy to Maintenance
- Condition：New
- Dimension：1700*1100*1200mm
- Weight：800kgs
- Motor Power：1.5kw
- Voltage：380V,50Hz,3pH
- Effective Width：220-530mm
- Material Width：290-600mm
- Material Thickness：0.5-0.8mm
- Delivery Time：Delivery Immediately After The Machine Is Assemble
- After-Sales Service：Engineers Available to Service Machinery Overseas
- Forming Steps：6steps
- Transport Package：Nude in Container
- Trademark：XHH
- Origin：Xiamen of China
- HS Code：84552290
- Production Capacity：20 Sets,Month
Description
Basic Info.
Model NO. KLS25-220-530 Customized Customized Advantage Easy to Maintenance Condition New Dimension 1700*1100*1200mm Weight 800kgs Motor Power 1.5kw Voltage 380V/50Hz/3pH Effective Width 220-530mm Material Width 290-600mm Material Thickness 0.5-0.8mm Delivery Time Delivery Immediately After The Machine Is Assemble After-Sales Service Engineers Available to Service Machinery Overseas Forming Steps 6steps Transport Package Nude in Container Trademark XHH Origin Xiamen of China HS Code 84552290 Production Capacity 20 Sets/MonthProduct Description
KLS25-220-530 Roof Sheet Machine, Panel Forming Machine and Metal Roof Machine:

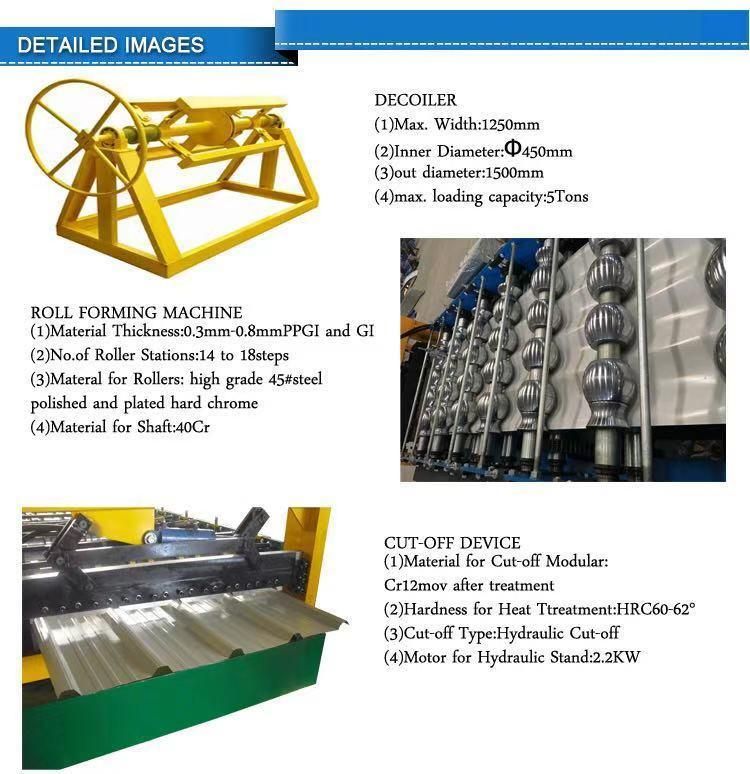

Main Accessories:
(1) Main Standing Seam Roofing Machine;
(2) 5 Tons Manual Uncoiler for width of coil: 1200mm;
(3) Simply Controlling Cabinet;
(4) Electric Cutter;
(5) Run out table(3 units)
Main Technic Data:
(1) Type: KLS25-220-530;
(2) Size: 1700*1100*1200mm(L*W*H);
(3) Weight: 800KGS;
(4) Motor Power: 1.5KW;
(5) Effective Width: 220mm, 530mm;
(6) Material Width: 290mm, 600mm;
(7) Material Thickness: 0.5-0.8mm;
(8) Materail: Galvanized sheet, Al-Mg-Mn sheet, Colored prepainted sheet.
(9) Usage: Making standing seam roofing panels for buildings.
| 1. | Dimension | 1700*1100*1200mm |
| 2. | Weight | 800KGS |
| 3. | Motor Power | 1.5KW |
| 4. | Power for hydraulic forming cutter | 0.75KW |
| 5. | Voltage | 380V/50HZ/3PH |
| 6. | Forming Steps | 6 steps |
| 7. | Forming Speed | 6-8m/min |
| 8. | Thickness for Steel | 0.5-0.8mm |
| 9. | Height of Roofing | 25mm |
| 10. | Effective Width for Roofing | 220-530mm |
