• Model NO.：GS20-75
• Certification：CE, RoHS, GS, ISO9001
• Type：Sand Casting
• Transport Package：Custom
• Trademark：DL
• Origin：Qingdao, China
• HS Code：8474802000
• Production Capacity：700

Basic Info.

Model NO. GS20-75 Certification CE, RoHS, GS, ISO9001 Type Sand Casting Transport Package Custom Trademark DL Origin Qingdao, China HS Code 8474802000 Production Capacity 700

Product Description

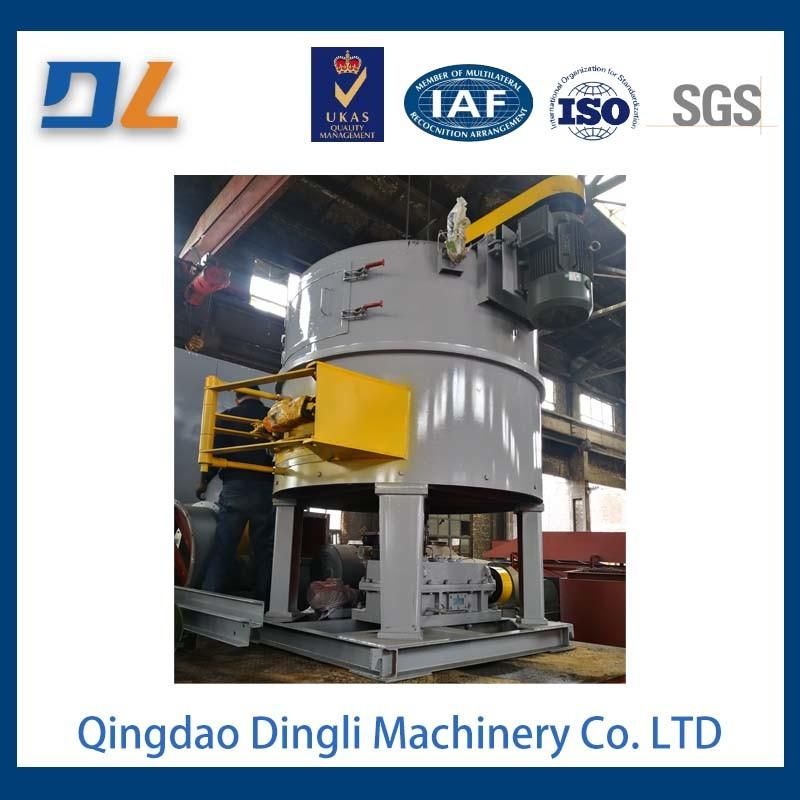

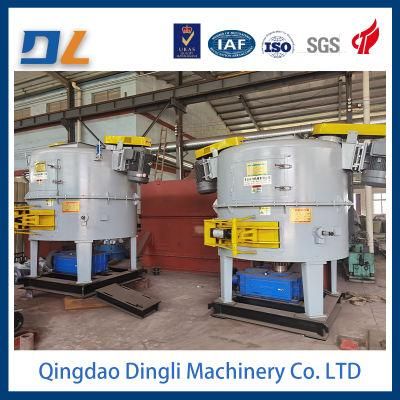

Purpose: This machine is mainly used for mixing molding sand in casting workshop, which can be used for mixing single machine-shaped sand, dry film sand, self-hardening sand, surface sand and back sand, and can also be used for mixing various powder and granular materials in glass, ceramic, refractory and other industries.

Features:

Double "S" scraper and high-speed rake rotor best match, large sand mixing capacity, strong mixing capacity sand performance is good.

New materials such as aluminum chloride wear-resisting ceramic bottom liner and alloy knife block surfacing scraper can prolong the life of wearing parts.

Soft starting, alloy steel gear, lubrication control, ensure the transmission system is stable and reliable, and can load start.

Symmetrical access door for easy maintenance and cleaning

The latest side unloading door opens flexibly and works reliably, completely solving the problem of sand leakage at the bottom.


Product model	GS20-75
Product model	Efficient rotor sand mixer
Product name (mm)	φ2000
Disk meridian(mm) (t/h)	30-35
Productivity(Uh) (kw)	75
Main motor power(kw) (kw)	2×30
Rotor motor power(kw) (r/min)	31.72
Spindle speed(r/min) (r/min)	980
