• Model NO.：QB series
• Certification：CE, RoHS, GS, ISO9001
• Type：Sand Casting
• Transport Package：Custom
• Trademark：DL
• Origin：Qingdao, China
• HS Code：8474802000
• Production Capacity：700

Basic Info.

Model NO. QB series Certification CE, RoHS, GS, ISO9001 Type Sand Casting Transport Package Custom Trademark DL Origin Qingdao, China HS Code 8474802000 Production Capacity 700

Product Description

Qingdao Dingli machinery Co., Ltd. is located in the beautiful seaside - Qingdao Pingdu, the company set scientific research, manufacturing, installation and commissioning, after-sales service in one. Mainly produces resin sand production line, clay sand production line, coated sand production line equipment, all kinds of sand processing single equipment. The company has advanced casting machinery manufacturing and development technology, the production of products can fully meet the international and domestic market demand. The company has excellent design and development team, skilled construction team, domestic leading casting equipment design concept, perfect after-sales service system, willing to cooperate with the majority of casting enterprises, create a better tomorrow.

In line with the "down-to-earth, integrity-based, pay attention to service, continuous innovation" business philosophy, through continuous efforts. With our own efforts and focus on the development of a series of perfect processing equipment, to meet the different needs of the majority of users.

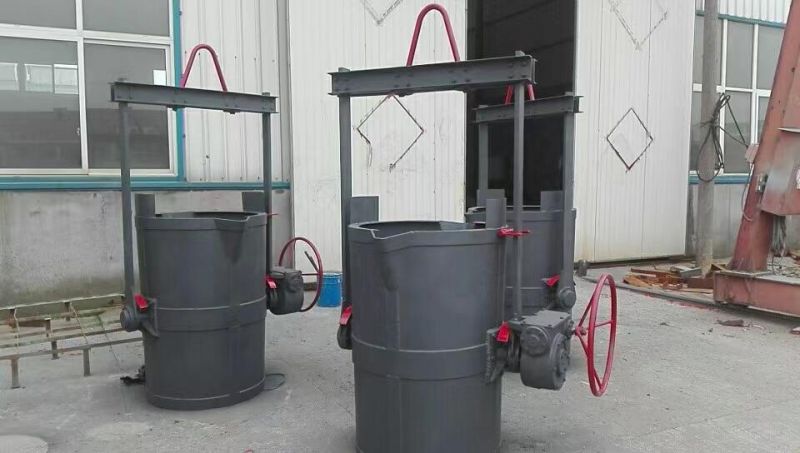

Molten steel ladle is used to receive molten steel for pouring in front of open furnace, electric furnace or converter in steelmaking and foundry. There are two types of structure: plug rod type and sliding nozzle type, and the gantry frame is equipped with hook type and bearing type. The lifting mechanism of plug rod ladle is equipped with sliding rod clearance elimination mechanism to ensure the consistency of plug rod center and nozzle center after repeated use.

specifications (t)	Barrel mouth diameter (mm)	Barrel height (mm)		XXOverall dimensions Length X width X height(mm)
QB-0.5	570	825	63	1060X670X1535
QB-0.75	650	942	63	1130X750X166
QB-1	700	1010	63	1180X820X1750
QB-1.5	780	1132	69	1270X910X2075
QB-2	860	1250	69	1345χ990χ2210
QB-2.5	916	1328	69	1400X1056X2318
QB-3	978	1418	82	1514×1118×25155
QB-4	1050	1520	82	1583×1200×2635
QB-5	1150	16	94	1750×1310×2
QB-6	1212	1730	94	1810×1372×2935
QB-7	1268	1816	320	1950×1500×3180
QB-8	1325	1902	320	2085×1535×3425
QB-10	1438	2055	320	2195X1738X3595
QB-12	1550	2100	400	2325X1590X36
QB-15	1680	2122	400	2455X2000X748
