• Model NO.：TB series
• Certification：CE, RoHS, GS, ISO9001
• Type：Sand Casting
• Transport Package：Custom
• Trademark：DL
• Origin：Qingdao, China
• HS Code：8474802000
• Production Capacity：700

Basic Info.

Model NO. TB series Certification CE, RoHS, GS, ISO9001 Type Sand Casting Transport Package Custom Trademark DL Origin Qingdao, China HS Code 8474802000 Production Capacity 700

Product Description

Qingdao Dingli machinery Co., Ltd. is located in the beautiful seaside - Qingdao Pingdu, the company set scientific research, manufacturing, installation and commissioning, after-sales service in one. Mainly produces resin sand production line, clay sand production line, coated sand production line equipment, all kinds of sand processing single equipment. The company has advanced casting machinery manufacturing and development technology, the production of products can fully meet the international and domestic market demand. The company has excellent design and development team, skilled construction team, domestic leading casting equipment design concept, perfect after-sales service system, willing to cooperate with the majority of casting enterprises, create a better tomorrow.

In line with the "down-to-earth, integrity-based, pay attention to service, continuous innovation" business philosophy, through continuous efforts. With our own efforts and focus on the development of a series of perfect processing equipment, to meet the different needs of the majority of users.
A, use

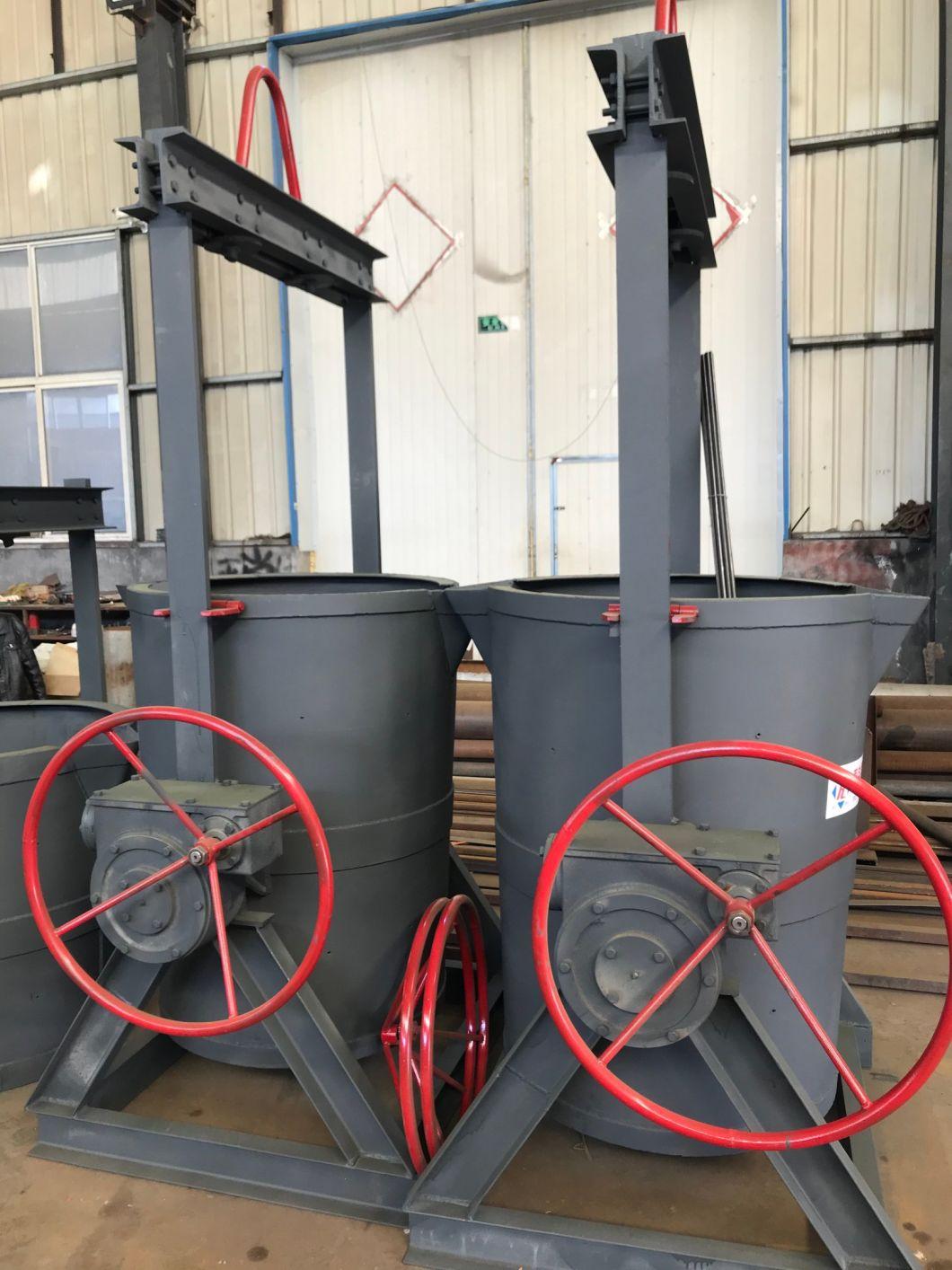

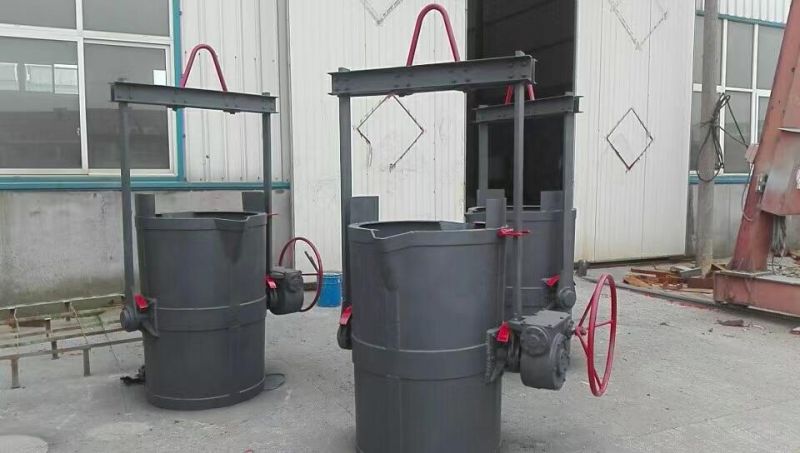

Molten iron ladle is used for casting shop casting operation, after receiving molten iron in front of the furnace, it is transported to the casting place by car for pouring.

Two, the main technical parameters and dimensions

1, hanging bag form, two-way rotary type.

2, reducer form, double worm gear pair transmission.

3, speed ratio (such as chart).

4. Dimensions (such as charts).

Three, characteristics

1, a reasonable choice of rotary center, easy to operate, after pouring can be basically self-replicating.

2, the use of double worm gear transmission. Although the manufacturing requirements are high, the transmission is flexible and reversible.

3. The suspender adopts forged parts, which are more reliable and safe than steel plate welding parts.

4, the inclusion steel plate is thicker, the bottom structure of the inclusion adopts taper, bottom hoop, welding combined with triple insurance, that is, to prolong the service life, but also to ensure the safety of operators.

5, the main body and the boom, reducer and handwheel, are equipped with a chain card can be locked at any time.

6, two trunnion and hanger rod are equipped with self-aligning bearing, good consistency.

specifications (t)	Barrel mouth diameter (mm)	Barrel height (mm)		XX(mm) Overall dimensions Length X width X height (mm)
TB-0.5	592	608	63	1080X720X1343
TB-0.75	660	670	63	1145X780X1373
TB-1	715	718	63	1200×845×1433
TB-1.5	830	840	69	1310X900X1835
TB-2	892	922	69	1368×1030×1875
TB-2.5		980	69	1480X1100X2002
TB-3	1032	1030	82	1560X1172X2145
TB-4	1135	1056	82	1656χ1280χ2178
TB-5	1230	1238	94	1820X1380X2503
TB-6	1292	1320	94	1880χ1452χ2542
TB-7	1352	1390	94	1930X1512×2625
TB-8	1426	1462	320	2175χ1626χ2968
TB-10	1546	1590	320	2285×1766×337128
TB-12	1645	1690		2410χ1886χ3315
TB-15	1765	1785	400	2530χ2065χ3418
