Traffic Barrier Guard Rail Roll Forming Machine
Zhangjiagang City Saibo Science & Technology Co., Ltd.- Type：Rolling Machine
- Forging Forming Method：Roll Forming
- Power Source：Electric
- Feature：High Efficiency
- Certification：ISO9001, CE
- Warranty：12 Months
Base Info
- Model NO.：3 waves
- Customized：Customized
- Advantage：Easy to Maintenance
- Condition：New
- Machine Name：Guard Rail Roll Forming Machine
- Thickness：2.6-3.4mm
- Material：Galvanized Steel up to 235MPa
- Motor Power：45kw
- Machine Structure：Guide Pillar
- Transport Package：Sea Packing
- Specification：CE SGS
- Trademark：SAIBO
- Origin：China
- HS Code：84552210
- Production Capacity：300sets,Year
Description
Specification of the material1
Suitable Material Galvanized steel up to 235Mpa 2
Width of the raw material According the profile 3
Thickness 2.6-3.4mm
2.Machine Detailed Parameters:
3. The Chart of Process Flow
4 .Machine pictures
2.Machine Detailed Parameters:
| 1 | Machine structure | Guide pillar structure |
| 2 | Total power | Motor power-45kw Hydraulic power-22kw |
| 3 | Roller stations | About 18 stations |
| 4 | Productivity | 0-15m/min |
| 5 | Drive system | By gearbox |
| 6 | Diameter of shaft | ¢100mm solid shaft |
| 7 | Voltage | 380V 50Hz 3phases (Customized) |
| 8 | Container need | 2×40GP container |

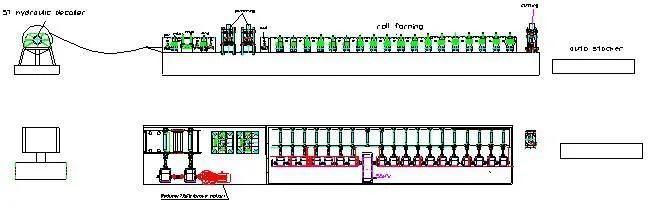

3. The Chart of Process Flow

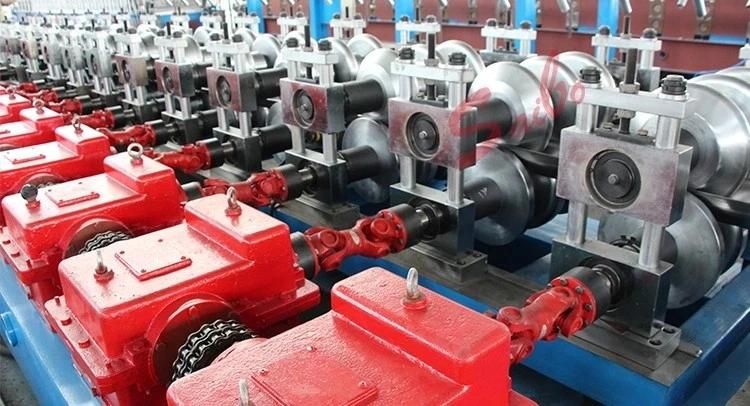

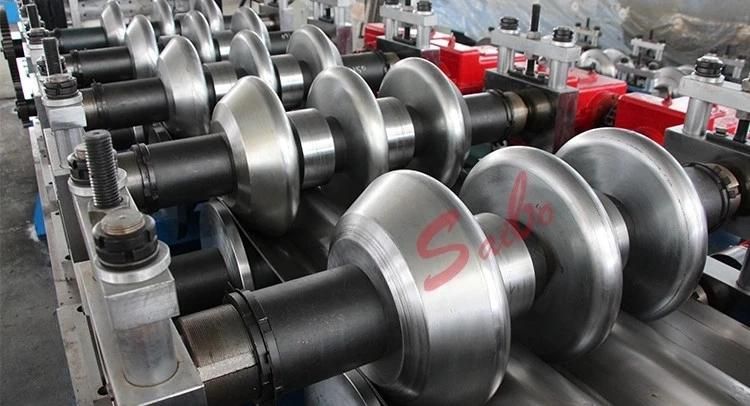

4 .Machine pictures
