• Model NO.：HJ-RCS201906
• Shear Force：4900kn
• Bar Material to Be Cut：Dia 12-40mm
• Steel Grade：Round Steel, Rebar
• Cutting Length：950 mm
• Opening Gap：150 mm
• Theoretical Cutting Times：15 Times , Min
• Transport Package：Seaworthy Packing or as Customers′request
• Specification：ISO9001, SGS, BV
• Trademark：Hangji
• Origin：Shaanxi, China
• HS Code：8455213000
• Production Capacity：20 Sets,Year

Basic Info.

Model NO. HJ-RCS201906 Shear Force 4900kn Bar Material to Be Cut Dia 12-40mm Steel Grade Round Steel, Rebar Cutting Length 950 mm Opening Gap 150 mm Theoretical Cutting Times 15 Times / Min Transport Package Seaworthy Packing or as Customers′request Specification ISO9001, SGS, BV Trademark Hangji Origin Shaanxi, China HS Code 8455213000 Production Capacity 20 Sets/Year

Product Description

The 500T Cold Shear Technical Parameters For Rebar production line
1.Structure

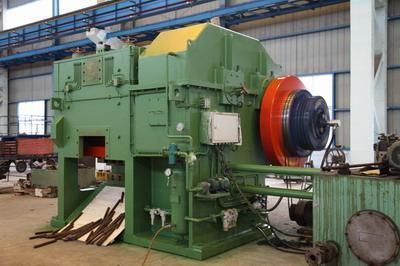

The 500T cold shearing machine is a single-arm shearing machine. The bed is welded by high-quality steel plate. The transmission part is hard-toothed gear transmission. The shearing adopts the eccentric shaft to drive the knife box to move up and down. The flywheel is inertially sheared, and the eccentric shaft shaft head It has a 1:30 taper keyless connection with the large gears, with high assembly precision and good concentricity.
2. Performance parameters of cold shears
Form: lower blade fixed, upper blade lift
Bar material to be cut: Φ12-Φ40mm (round steel, rebar)
Material to be cut: carbon structural steel, high quality carbon structural steel, low alloy structural steel, general alloy structural steel and cold tantalum steel
Sheared bar temperature: ≤200°C
Shear force: 4900KN
Cutting length: 950 mm
Opening gap: 150 mm
Theoretical cutting times: 15 times / min
Dimensions of the device: 2900 mm × 2800 × 3100 mm (length × width × height)
Main motor power: 75 kW
This equipment is equipped with a bar pressing mechanism
Equipment weight: about 50T

3. Cut-to-length shear parameters
The fixed length machine can be used in two types: gantry type or cantilever type. The working principle is that the fixed length machine is driven by a motor to drive the fixed length of the turbine. The pneumatic lifting baffle can be adjusted from 6 mm to 12 mm. Stepless positioning
Fixed-length baffle width: 950 mm
Steel retaining specification: Φ12-Φ40mm
Steel blocking speed: 1.5 m / s
Fixed length: 6-12m
Main motor power: Y100L~6    1.5KW
Weight: about 15.5T
Number of cuts per cut:
Φ12 70 pcs
Φ14 51 pcs
Φ16 39 pcs
Φ18 31 pcs
Φ22 20 pcs
Φ25 16 pcs
Φ32 10 pcs
Φ36 7 pcs
Φ40 6 pcs

Before sale: design the suitable machine based on the specific demands

Medium sale:

1.Based on customer's demand to offer moderate quotation project 2.Accept customers to visit our factory

3.Help customer work out the schedule in china

After-sale:

1.On-site training personnel 2.Appoint special aftersale service staff, arrived at the scene guide clients  installation and commission


Xi'an Weikeduo Electrical & Mechanical Equiment Co., Ltd.

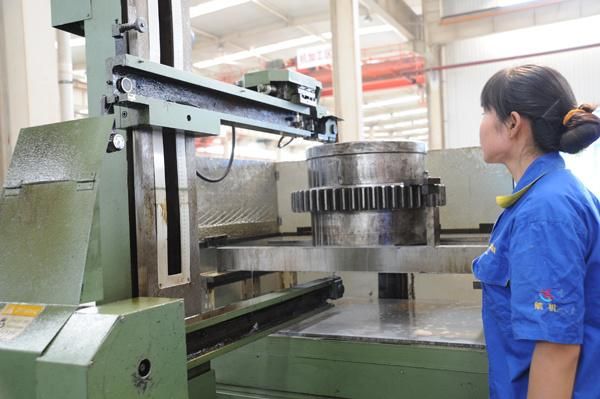

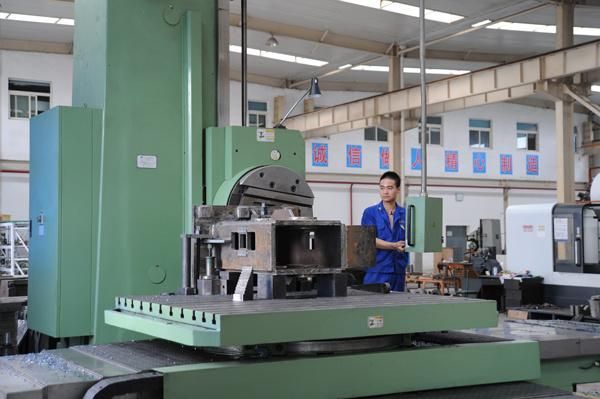

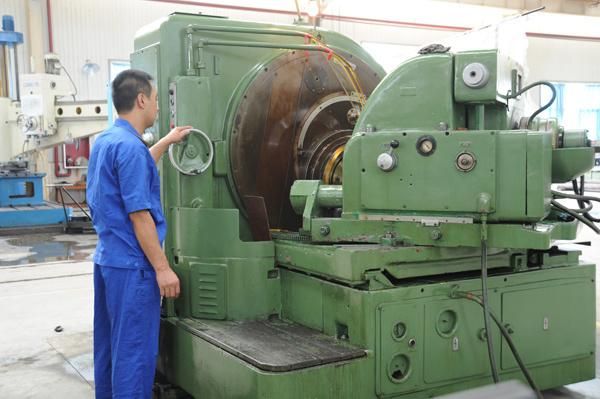

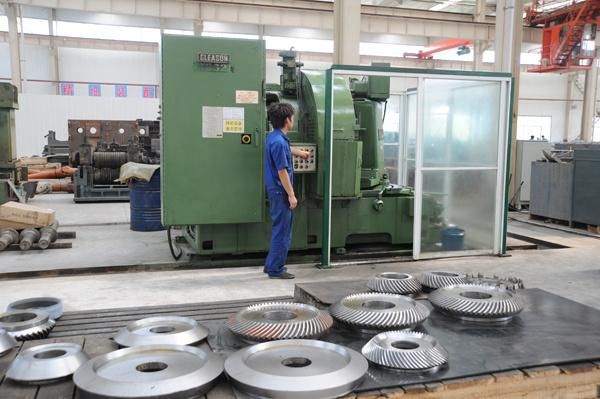

     With more than 20 years experience in metallurgical industry, The main business scope for the metallurgical machinery, high-speed gear box, hardened gear reducer. High-speed wire rod, bar, special steel rolling mill production line design, production, sales and installation; As well as for the aviation, steel, oil, electricity, coal mining machinery to provide intelligent re-manufacturing laser quenching, welding, cladding supporting processing, surface corrosion and wear-resistant alloy protective processor full set of technology development, services and applications. Crack detection of the equipment and spare parts, CMM measure and Gear detection. Products through the ISO9001 certification, the use of "Hangji" registered trademark of Shaanxi famous brand, with more than 10 patented technology, the establishment of a complete research and development, production and quality assurance system for high-tech enterprises.
