Pre-Finishing Mill Group in High Speed Wire Rod Production Line Steel Hot Rolling Mill

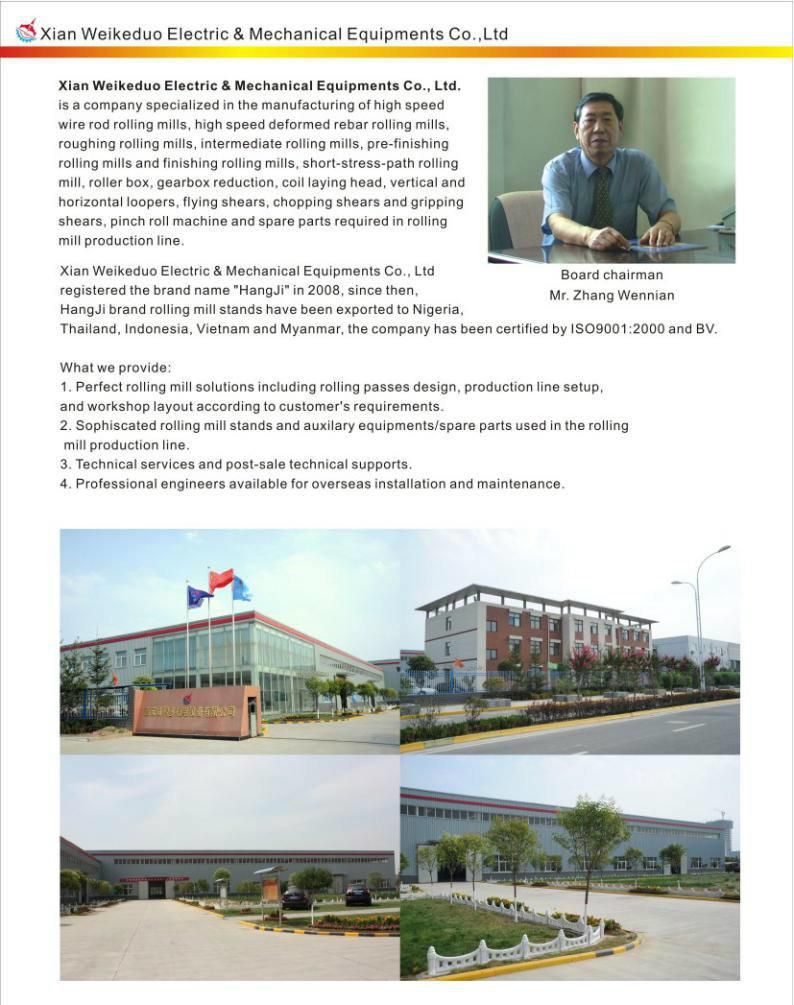

Xi'an Weikeduo Electrical & Mechanical Equipment Co., Ltd.- Rolling Shape：Wire
- Product：Steel Billet, Carbon Steel,Welding Steel
- Roller Position：H-V-H-V
- Roller Number：Four-High
- Layout：Continuous
- Type：Pre-Finishing Mill
Base Info
- Model NO.：HJ-1210-01
- Input Specificatio：Dia28-31mm
- Fourth Mill Output Specification：Dia16-20mm
- The Temperature of Rolling：900-1050*C Degrees Celsius
- Maximum Rolling Strength：240kn
- Maximum Rolling Moment：6.2kn*M
- Centre Distance of Roll Shaft：Dia255-291mm
- Adjustment of Roller Gap：+18mm,-18mm
- Cooling Water of Roll Shaft: Consumption：4X20 T,H
- Water Pressure：0.6MPa
- Temperature of Water Coming：<30*C Degrees Celsius
- Transport Package：Seaworthy Packing or as Customers′request
- Specification：SGS, BV, ISO
- Trademark：hangji
- Origin：Shaanxi, China
- HS Code：8455213000
- Production Capacity：30 Sets,Year
Description
Rotary speed
r/min15H 285 255 160 95/70 DC 450 0/600/1200 1.5 247~476 16V 285 255 160 95/70 DC 450 0/600/1200 1.24 314~606 17H 285 255 160 95/70 DC 450 0/600/1200 1.25 407~782 18V 285 255 160 95/70 DC 450 0/600/1200 0.94 500~1001
Maximum rolling strength: ~240kN
Maximum rolling moment: ~6.2kN·m
Centre distance of roll shaft: F255mm~F291mm
Adjustment of roller gap: ±18 mm
Cooling water of roll shaft: consumption: 4x20 t/h
water pressure 0.6MPa
temperature of water coming: <30ºC
(11)lubrication
Roller box and reduction equipment adopt thin oil to lubricate, which is offered by workshop.
Pressure of oil: pressure in lubrication point 0.15~0.25MPa
Total consumption: 400 l/min
Oiliness: Mobil 533
Refined filter: 25μ
r/min
Maximum rolling strength: ~240kN
Maximum rolling moment: ~6.2kN·m
Centre distance of roll shaft: F255mm~F291mm
Adjustment of roller gap: ±18 mm
Cooling water of roll shaft: consumption: 4x20 t/h
water pressure 0.6MPa
temperature of water coming: <30ºC
(11)lubrication
Roller box and reduction equipment adopt thin oil to lubricate, which is offered by workshop.
Pressure of oil: pressure in lubrication point 0.15~0.25MPa
Total consumption: 400 l/min
Oiliness: Mobil 533
Refined filter: 25μ
