• Model NO.：TGC250
• Production Capacity：10000

Basic Info.

Model NO. TGC250 Production Capacity 10000

Product Description

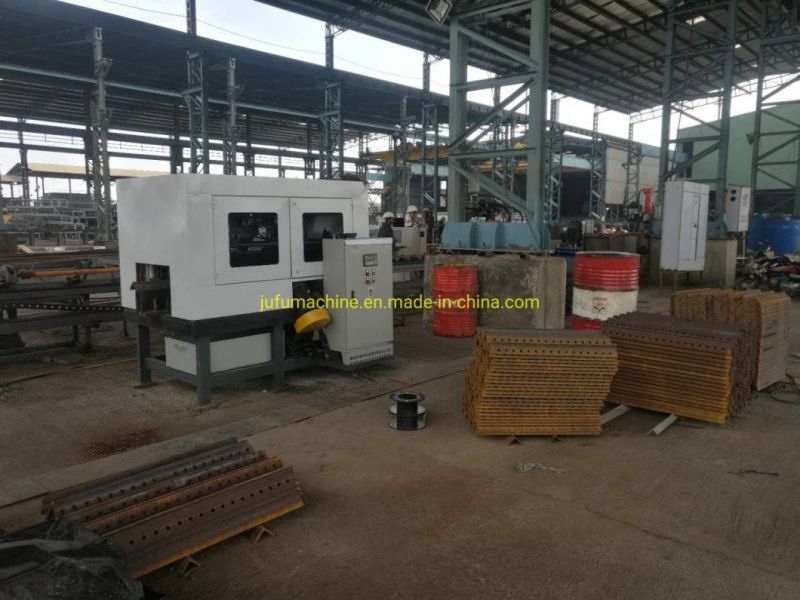

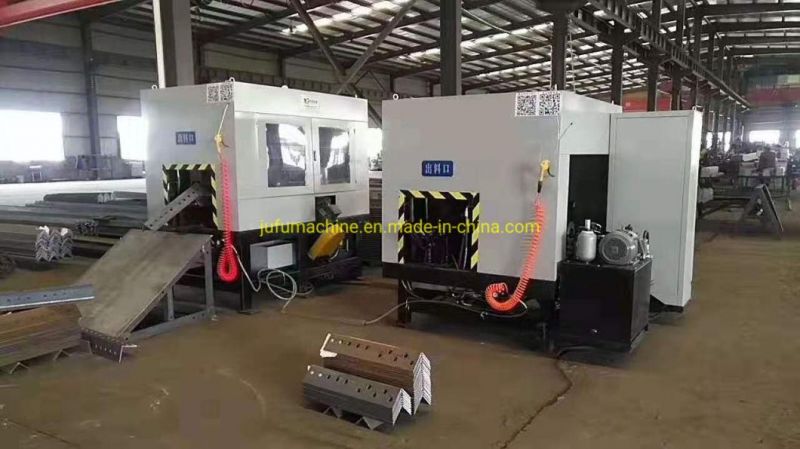

CNC Angle Heel Milling Machine  (Wipe off Outer)  MODEL:TGC250

FEATURE:

1.CNC milling principle ,it install some bites by specified facing cutter working , shovel back fast , efficiency high , workpiece surface flatness good
2.This machine operate simpleness , to worker operation requirement lower
3.Automation degree high ,it can get continuation pay-off, improve work efficiency
4.This machine overcome working length restricted clamp on fussy problem than tradition planer processing technic.
5.This machine operate simpleness , adjust flexible , run stabilize

Specification:
1.Power of motor        11 KW
2.Power single spindle     5.5KW
3.Voltage              415V+/-5%, 50Hz 3 Phase
4.Air pressure            0.6MPa~0.7MPa
5.Cutting speed          150~400 rpm
6.Cutter head diameter    120mm ( replaceable cutter blade )
7.Feed speed            230~500mm Per Minute ( Variable Frequency Drive Adjustment )
8.Spindle rotate speed    400rpm
9.Number of spindle      2  pc
10.Number pay-off motor  2 pc
11.Number swage setting air cylinder  4 pc
12.Range of process angel steel  L40×40×3~L250×250×32
13.length of process angel steel  350mm~+∞
14.Computed mode: data input Touch screen have compensation function.
15.Maximum Heel cutting depth in single pass 15mm minimum.
