Full Automatic High Efficiency Chain Link Fence Machine

Hebei Dechuang Chemical Equipment Co., Ltd.
  • After-sales Service：Ok
  • Warranty：Ok
  • Type：Horizontal Metal Drawing Machine
  • Usage：Wire, Rope Wire
  • Metal Material：Steel
  • Outlet Diameter：0.5-7.0mm

Base Info

  • Model NO.：Max. mesh Width 1.6m-6m
  • Max.Inlet Wire Dia.：16mm
  • Block Dia.：600mm
  • Max. Number of Block：21
  • Certification：REACH, ISO
  • Condition：New
  • Feeding Wire Number: 2：Mesh Scope of Weaving: 40X40-100X100mm
  • Mesh Scope of Weaving: 40X40-100X100mm：Motor Power: 3.0,Kw,Set 4.0,Kw, Set 0.12,Kw,Set
  • Transport Package：Wooden Box Package
  • Specification：1.6m-6m serial Chain Link Fence Machine
  • Trademark：DeChuang
  • Origin：Hebei China
  • HS Code：6666
  • Production Capacity：120 Sets Per Year

Description

Basic Info.

Model NO. Max. mesh Width 1.6m-6m Max.Inlet Wire Dia. 16mm Block Dia. 600mm Max. Number of Block 21 Certification REACH, ISO Condition New Feeding Wire Number: 2 Mesh Scope of Weaving: 40X40-100X100mm Mesh Scope of Weaving: 40X40-100X100mm Motor Power: 3.0/Kw/Set 4.0/Kw/ Set 0.12/Kw/Set Transport Package Wooden Box Package Specification 1.6m-6m serial Chain Link Fence Machine Trademark DeChuang Origin Hebei China HS Code 6666 Production Capacity 120 Sets Per Year

Product Description

         Automatic Chain Link Fence Machine adopts the principle of weaving double wire from Germany. The production has the characters of high efficiency and reliable quality. The design of the machine is reasonable, controlled by the microcomputer; it can automatically complete the procedures as spinning, cut, rolling of wire and border closing.

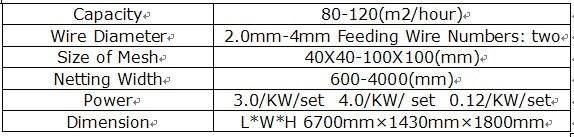

Chain Link Fence Machine  Main parameter of the full automatic chain link machine:

1. Width scope of weaving: 1-4m

    Wire scope of weaving: 2-4mm

    Mesh scope of weaving: 30-100mm

    With 3 sets of mesh model at buyer's requirements

2. The machine is controlled by PLC automatic controller, so only one person is needed to operate it.

3. The output per minute: for example: If the mesh is 50x50mm, width: 2m, the output will be 1.2m per min.

4. The tensile scope of the wire need to be 300-500N per square meter
5.Total power of equipment: 11kw

6. Weight of equipment: 4200kg
7.Outside size: 6700x1430x1800mm

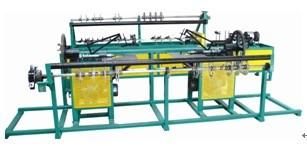

Full Automatic High Efficiency Chain Link Fence Machine

Molds
Full Automatic High Efficiency Chain Link Fence Machine
  Molds can be changed to make different mesh
  size chain link fence in one machine.
  Low cost mold cost.

Twist Function
Full Automatic High Efficiency Chain Link Fence Machine
Mesh will be twisted when it's producing.
Machine with twist function can be knuckle
the mesh too.
Twist edge is even and nice.
No failure
Even hole size and flat fence surface.
Material: High Carbon Steel, Galvanized Steel
PVC/PE-Coating Steel, Stainless Steel,
Redrawing Steel etc.
