• Model NO.：X6038B Milling machine
• Production Capacity：300 Sets,Mnth

ItemX6032BSpindle taperISO40Distance from spindle to table0-450mmSpindle speeds(12 step)40-13700 r.p.mTable size1370x320mm(1250x320mm)Table travel(Horizontal/Cross/Vertical)720/300/450mm(600/300/450mm)Feeding range of longitudinal.cross travel 22-550mm/min(8 step)X,Y axis rapid feed speed1080mm/minZ axis rapid feed speed590mm/minZ axis motor power750WMax weight of workpiece300kgT-slot number/width/distance3/14mm/70mmMilling head moving(Vertical)Rectangular axisCross slide wayRectangular axisLongiudinal slide wayDovetail axisHorse power for main motor3kwX,Y axis driving motor 750WOverall dimension1700x1500x2000mmPacking size1750x1650x2250mm 2300x1600x2250mmN.W/G.W1750/1900kg(3500/3700kg)



knee type universal milling machine X6032B
1.High power,Motorized lift on Z axis
2.Processing range widely
3.Automatic feeds on two axes
4.hardened treatment
5.CE

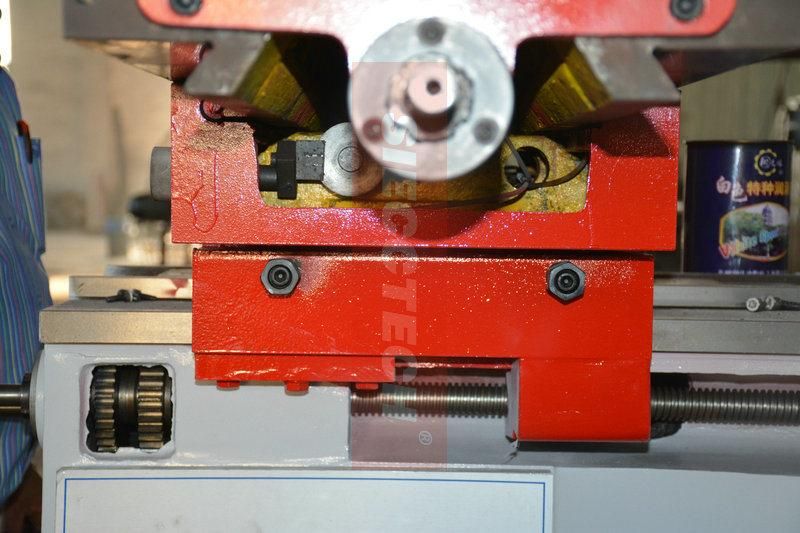

rectangualr table guidways with high stability
hardened and ground table surface
automatic feeds on X, Y axis, motorized lifiting and falling of table on Z axis

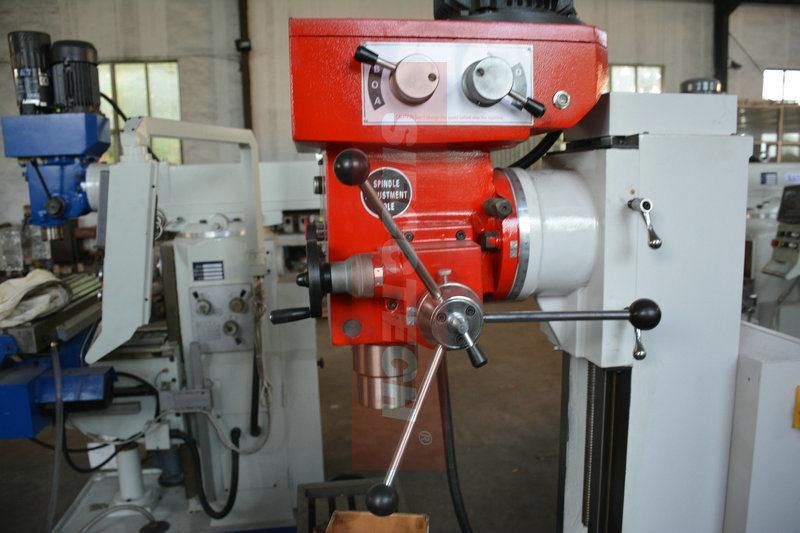

headstock swivels ±45°
