Electric Multi Wire Continuous Annealing Drawing Machine

Hangzhou Suntech Machinery Co., Ltd.
  • Type：LW Pulley Type Metal Drawing Machine
  • Usage：Wire, Rope Wire, Prestressed Steel Wire
  • Metal Material：Aluminum
  • Outlet Diameter：0.5-4.5mm
  • Max.Inlet Wire Dia.：3.6mm
  • Block Dia.：280mm

Base Info

  • Max. Number of Block：21
  • Certification：REACH, RoHS, ISO, Ce
  • Condition：New
  • Transport Package：Seaworthy Packing
  • Trademark：SUNTECHMACH
  • Origin：China
  • HS Code：846330
  • Production Capacity：200 Sets,Year

Description

Model

LY-13D

Inlet Diameter(mm)

Ø2.80-3.50

Outlet Diameter (mm)

Ø0.60-2.20

Max. Drawing Speed (m/min)

1500

Max. Drawing Dies No.

13

Slip Ratio of m/c

20%

Fix Speed Capstan Slip Ratio

18%

Capstan

Tungsten Plasma

Max. Capstan Dia. (mm)

Ø280

Fix Speed Capstan Dia. (mm)

Ø300

Frame

Ironed Cast

Main Motor

55KW

Spooler Motor

15KW

Revise System

PID Synchronous Spooler

Inverter Control

Double Inverter Control

Transmission

Gear

Send-Out Method

Over Head

Traversing Unit

Decelerate Motor

Tension Control

Pneumatic Balance by Swing Arm

Lubrication

Immersion

Power Source

380V

Brake

Pneumatic

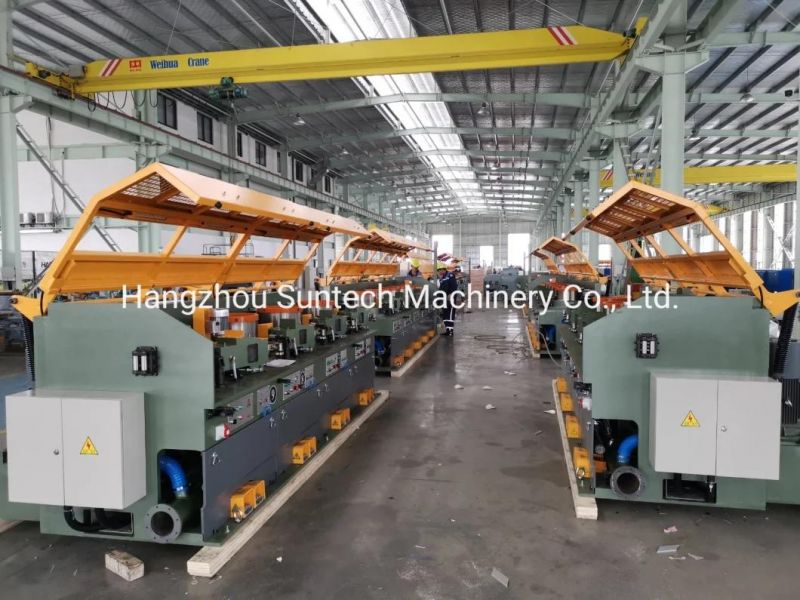

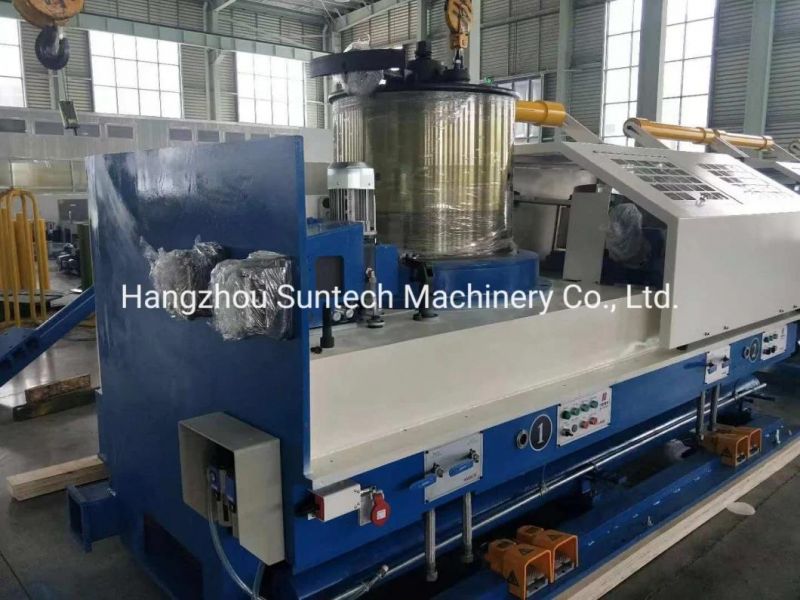

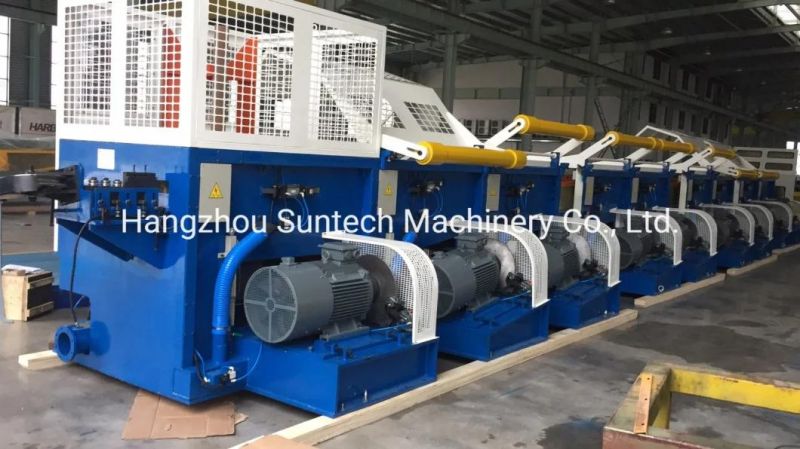

III. Details of machine for reference:
Electric Multi Wire Continuous Annealing Drawing Machine
Electric Multi Wire Continuous Annealing Drawing Machine

Electric Multi Wire Continuous Annealing Drawing Machine

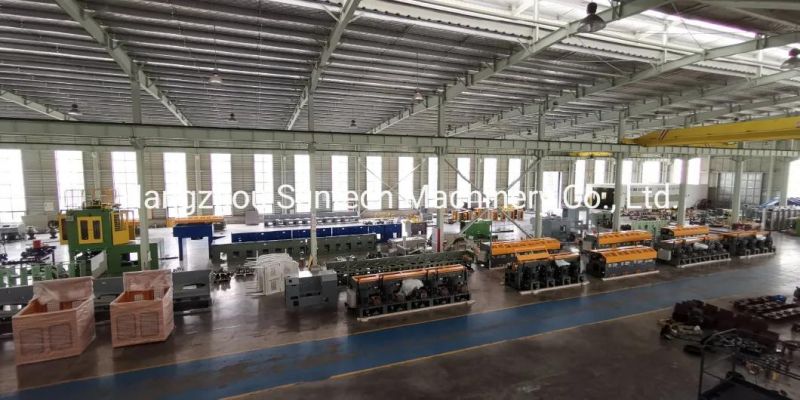

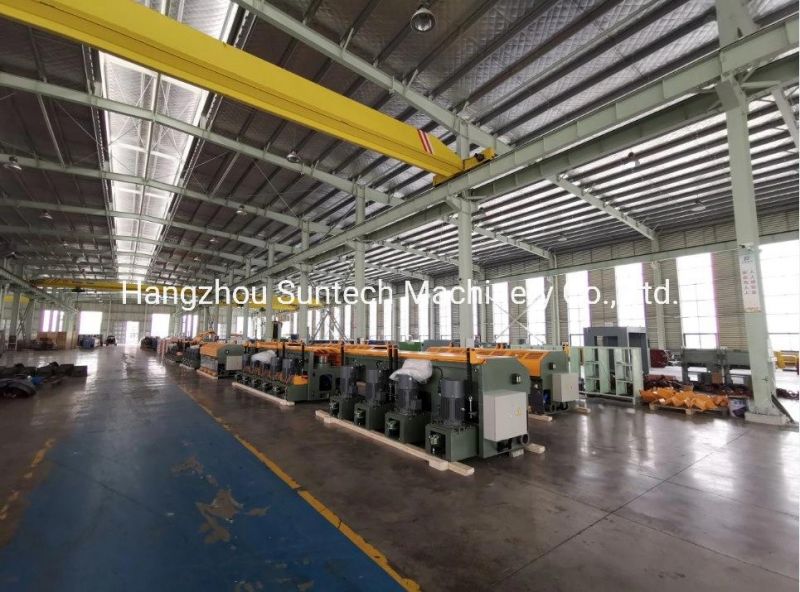

IV. Our Workshop:
Electric Multi Wire Continuous Annealing Drawing Machine

Electric Multi Wire Continuous Annealing Drawing Machine

Electric Multi Wire Continuous Annealing Drawing Machine

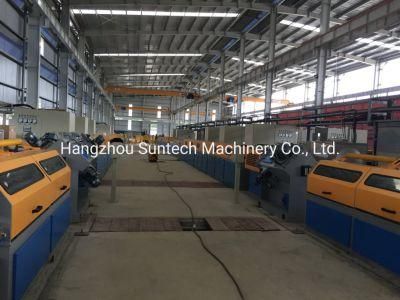

V. Clients worksite for reference:
Electric Multi Wire Continuous Annealing Drawing Machine


VI. Clients list for reference:
Electric Multi Wire Continuous Annealing Drawing Machine
