Roof Panel Forming Machine for Seamlock Roofing
Xiamen Xinhonghua Machinery Co., Ltd.- Model No.：Yx65-470
- Effective Width：470mm
- Dimension：7500*900*1600mm
- Hydraulic Power：1.5kw
- Motor Power：5kw
- Voltage：380V,50Hz,3pH
Base Info
- Model NO.：YX92-600
- Forming Steps：16steps
- Working Speed：8-14m,Min
- Thickness：0.4-0.8mm
- Material Width：600mm
- Transport Package：Standard Package for Export
- Specification：SGS
- Trademark：XHH
- Origin：Xiamen, China
- HS Code：84552290
- Production Capacity：10-15sets,Month
Description
Basic Info.
Model NO. YX92-600 Forming Steps 16steps Working Speed 8-14m/Min Thickness 0.4-0.8mm Material Width 600mm Transport Package Standard Package for Export Specification SGS Trademark XHH Origin Xiamen, China HS Code 84552290 Production Capacity 10-15sets/MonthProduct Description
Detail informations of YC65-470 Hidden Roof Forming Machine,Seamlock Roll Forming Machine,Boltless Metal Roof Forming Machine are as follows:

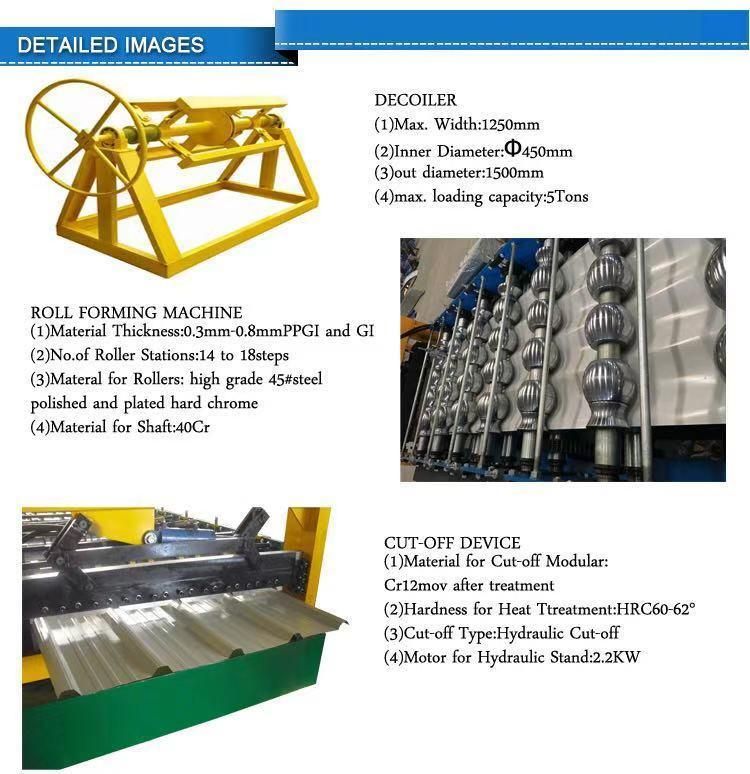

Main Accessories:
(1) Main Forming Machine;
(2) 5 Tons Manual Uncoiler;
(3) Manual Pre-cutter;
(4) Hydraulic System;

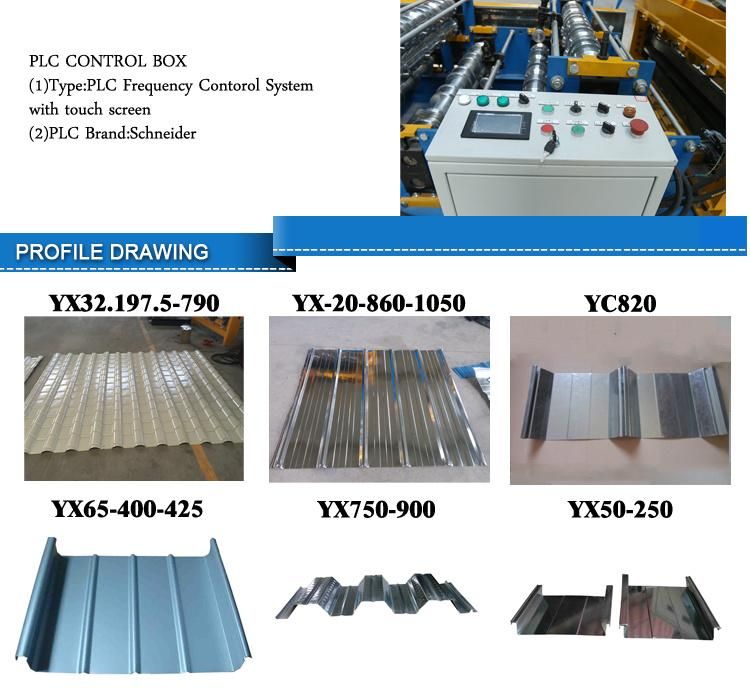

(5) PLC Computer Controlling System With Touch Screen
(Brand: Delta or Schneider, or Siemens, choose any one)
(6) Hydraulic Forming Cutter;
(7) Run Out Table(3 PCS);
(8) Tools;
(9) Operation Manual.
Main Technic Data:
1. | Size | YC470 |
| 2. | Dimension | 7500*900*1600mm |
| 3. | Wieght | 4000KGS |
| 4. | Motor Power | 5KW |
| 5. | Hydraulic Power | 1.5KW |
| 6. | Voltage | 380V/50HZ/3PH |
| 7. | Forming Steps | 16 steps |
| 8. | Working Speed | 8-14m/min |
| 9. | Thickness | 0.4-0.8mm |
| 10. | Material Width | 600mm |
| 11. | Effective Width | 470mm |
