Double-Station Automatic Vertical Winding Machine (DLM-400)
DONGGUAN DELONG AUTOMATION LIMITED COMPANY- After-sales Service：1 Year
- Warranty：1 Year
- Weight：1600kg
- Color：White
- Size：2000*2000*2300mm
- Transport Package：Wooden Case or According to Your Requirement.
Base Info
- Model NO.：DLM-0867
- Specification：Safe Export Standard
- Trademark：DL
- Origin：China
- Production Capacity：100 PCS,Month
Description
Basic Info.
Model NO. DLM-0867 Specification Safe Export Standard Trademark DL Origin China Production Capacity 100 PCS/MonthProduct Description
DLM-400 coil winding machine1. Double vertical.
2. Excellent quality and competitve price.

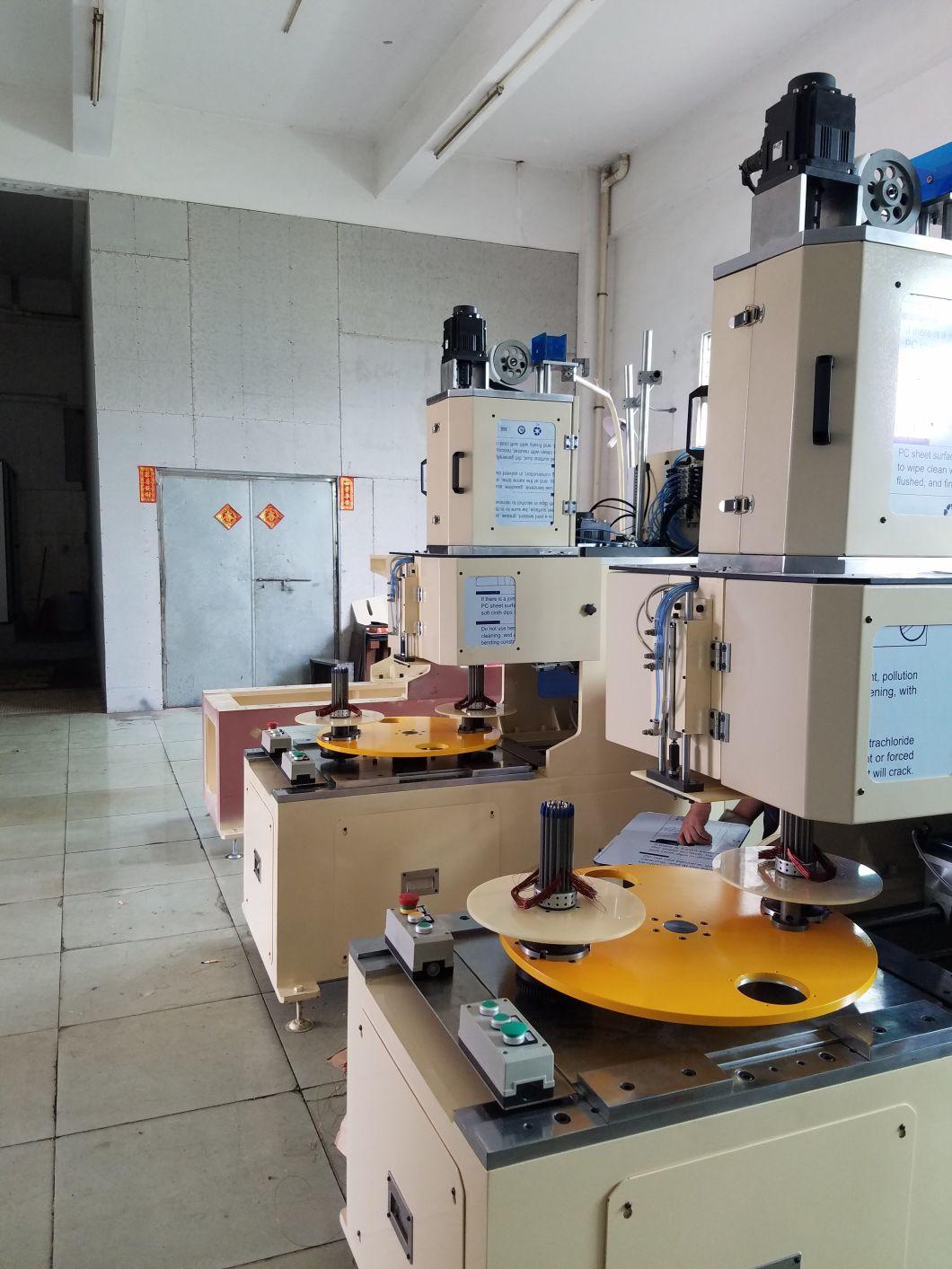

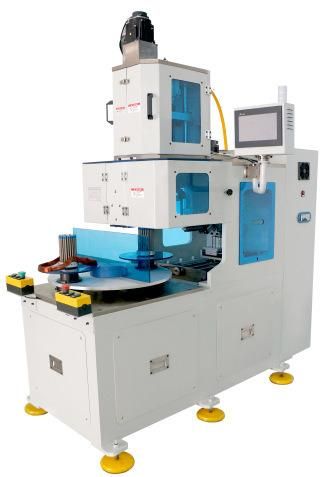

DLM-400 Double-Station Automatic Vertical Winding Machine
1.It is a double-station automatic vertical winding machine, able to exactly wind coils onto the forklike flywheel and easily transfer the coil to coil inserter, with high efficiency and great inserting winding effect.
2.Equipped with a mechanical transmission system, a pneumatic system, an AC servo system and an industrial programmable PLC system, it is easy for the machine to change the parameters, such as high/low speed and turns.
3.And it is endowed with the display function of dynamic turns, actual turns, set turns, failure causes and position self-check.
DLM-400 Double-Station Automatic Vertical Winding Machine Parameter DLM-400:
Max Winding Speed :2000rpm
Max Suitable Coil Segments: 6
Suitable Wire Diamete :0.3-1.2mm
Max Coil Down-lead :400mm
Suitable Motor Poles :2, 4, 6, 8
Total Number of Turns :0-9999turn
Power Source Three-phase :380V50Hz
Power :9000W
Pressure of air supply :0.5-0.8MPA
Weight :1600kg
Dimensions (L*W*H) :2000*2000*2300 mm
